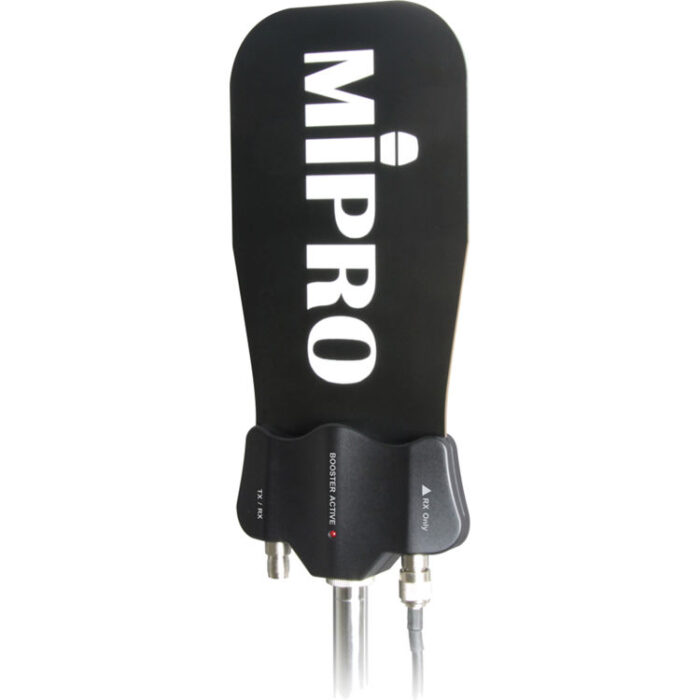

AT-70W is a bi-functional omni-directional antenna for professional receiving and transmitting applications. Optimized for 470-1000 MHz, which is fully compatible with US and EU telecom regulations. It has a 2-4 dBi gain which is ideal for any specific installation required with full directions. It can be easily distinguished by its “W-shape” appearance.
AT-70W has two input connectors, “TX/RX” which can be connected to transmitter or receiver directly. The “RX only” connector has a built-in 12 dB high gain booster provides increased reception range for ACT receiver.
AT-70W offers users the options of transmitting or receiving based on actual application. AT-70W is waterproof and ideal for both indoor and outdoor applications.
General
| Product Type | Wireless microphone system antenna |
| Width | 4.7 in |
| Depth | 1.3 in |
| Height | 10.3 in |
| Weight | 7.05 oz |
Antenna
| Wave Band | 470 – 1000 MHz |
| Impedance | 50 Ohm |
| Gain Level | 4 dBi |
| Features | Omnidirectional pattern |
Connections
| Connector Type | 2 x antenna ( TNC ) |
