- It is optimized in the 470 ~ 960 MHz frequency range to amplify the antenna signal. It is designed for pairing with the AD-708 antenna divider to detect the cable loss and automatically adjust the gain of the booster output between 0 ~ 14 dB to compensate precisely for the cable loss to obtain the optimal signal quality.
- The antenna booster can be powered by the bias of the receiver’s antenna connector or by an external power supply, allowing longer antenna cables can be connected with more boosters.
- With an aluminum casing, it features superb heat dissipation and waterproof.

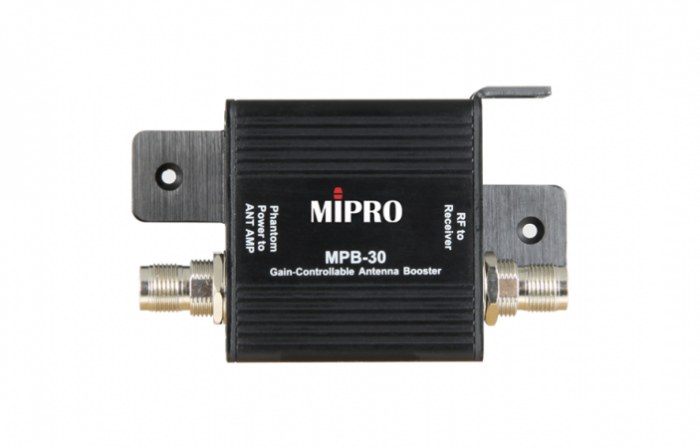

| Model | MPB-30 |
|---|---|
| Name | UHF Gain-Controllable Antenna Booster |
| Frequency Range | UHF 470 ~ 960 MHz |
| Gain | Variable 0 ~ 14 dB ± 1 dB |
| Input / Output Connectors | 1-to-1 TNC. 50 Ω Impedance. |
| Input Power | 12 ~ 24 V DC / 350 mA |
| Regulated Power Output | 8 V DC / 250 mA |
| Dimensions | 55 × 90 × 25 mm (W×H×D) |
| Weight | Approx. 110 g |
