- The aluminum casing provides superb heat dissipation characteristics and a bright LED indicates the antenna cable status and the detection result.
- Automatically detects the cable loss between the receiver and the built-in booster of the antenna and then adjusts the gain of the booster to precisely compensate for the cable loss and eliminate the intermodulation distortion.

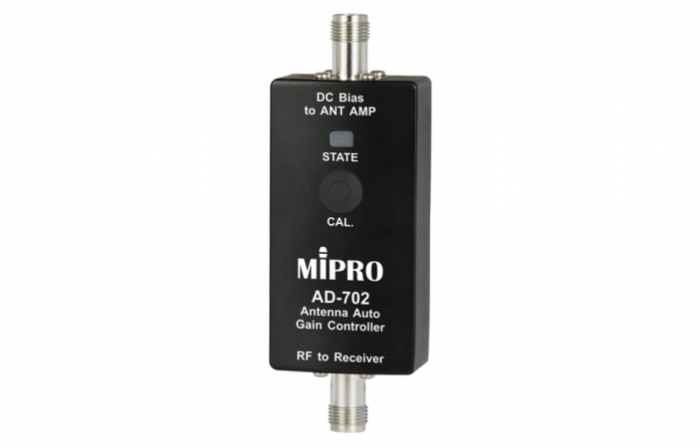

| Model | AD-702 |
|---|---|
| Name | Wideband Single channel Auto Booster Gain Controller |
| Frequency Range | UHF 470 ~ 850 MHz |
| Signal Loss Detection | Detects the cable loss for automatic gain adjustment of antenna booster. |
| Input / Output Gain | -1 dB ± 0.5 dB |
| Input / Output Connectors | 1-to-1 input/output. TNC female. 50 Ω Impedance. |
| Antenna Input Bias | The bias of the power supply (8 ~ 15 V DC) |
| Power Supply | 8 ~ 15 V DC |
| Dimensions | 80 × 24 × 41 mm (W×H×D) |
| Weight | Approx. 270 g |
| Note | Refer to the actual product in the event of product description discrepancy. |
