Firstly introduced into the market in 2006, the AD-90S was designed to provide MIPRO’s MI-909T stereo in-ear monitoring transmitter, MT-92A wireless interlinking transmitter or MTS-100 digital stationary transmitter to divide its output power into 4 transmitting antennas without power loss. Each channel has a maximum output level of +26 dBm (0.4 W).
| Model | AD-90S |
|---|---|

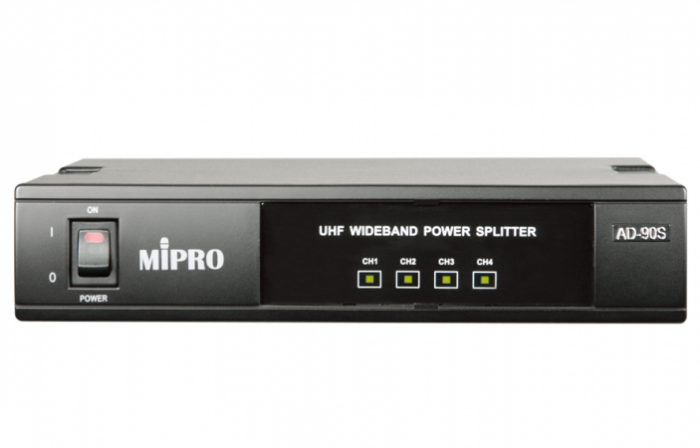

| Name | UHF Wideband RF Power Splitter |
| Frequency Range | UHF 470 ~ 960 MHz |
| System Gain | 0 ~ 2 dB |

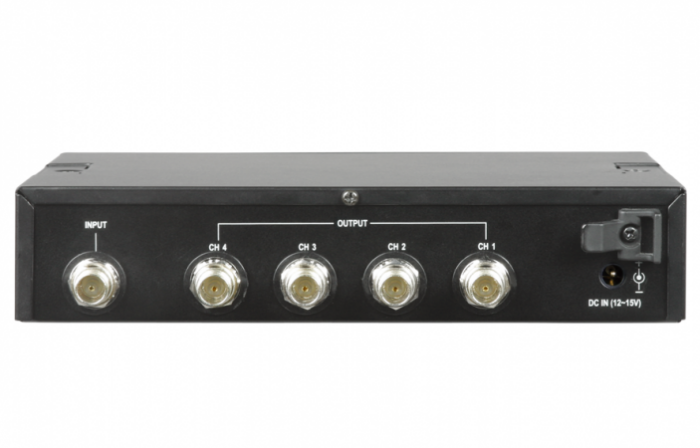

| Connectors | TNC female (1 input, 4 outputs) |
| Max. RF Output Power | 26 dBm |
| Power Supply | 12 ~ 15 V DC |
| Dimensions | 210 × 44 × 204 mm (W×H×D) |
| Weight | Approx. 1.1 kg |
| Note | Refer to the actual product in the event of product description discrepancy. |
