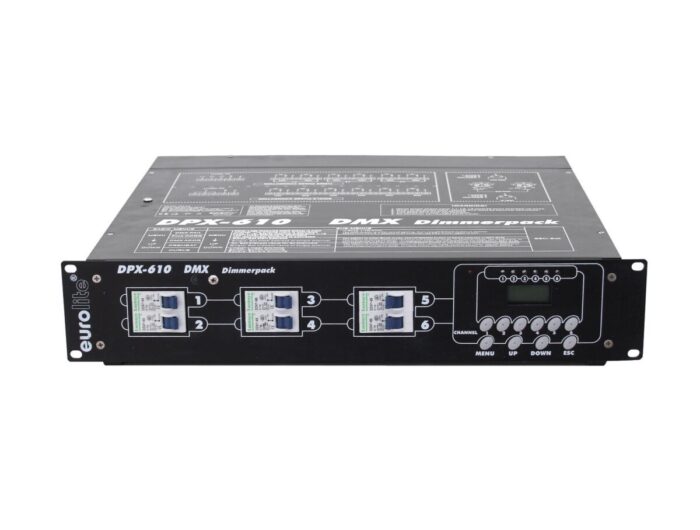

6x10A dimmer for DMX & analog signals, connection via terminal blocks
- Universal dimmer pack for professional use
- Can be operated 1-phase or 3-phase
- 6 x 10 A
- DMX-control or analogue control possible
- The DMX-starting address can be adjusted on the device
- Synchronisation of several DPX-610 possible via DMX
- Adjusting the lamp pre-heat
- All modes are displayed via LEDs and the display
- With automatic circuit breaker per channel
- Channel-outputs on the rearpanel via pole connectors
- Only for professional use
- Preprogrammed 12 chasers
- Can be operated in 6 CH mode
- Controlling by Analog 0-10 V Stand-alone DMX
- (19″) 48.3 cm rack installation 2 U
| Power supply: | 230/380 V AC, 50 Hz |
| Output power: | Max. 13800 W Max. 2300 W per channal |
| Output current: | Max. 60 A |
| Power connection: | Mains input screw terminal |
| Power output: | Screw terminal |
| Fuse: | Power output fuse per channel C 10 A Fuse resettable |
| Programs: | Preprogrammed 12 Chasers |
| DMX channels: | 6 |
| Control: | Analog 0-10 V Stand-alone DMX |
| Control channels: | 6 |
| Color: | Black |
| Mounting depth: | 500 mm |
| Housing design: | (19″) 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48,3 cm Depth: 41 cm Height: 8,9 cm |
| Weight: | 7,50 kg |
