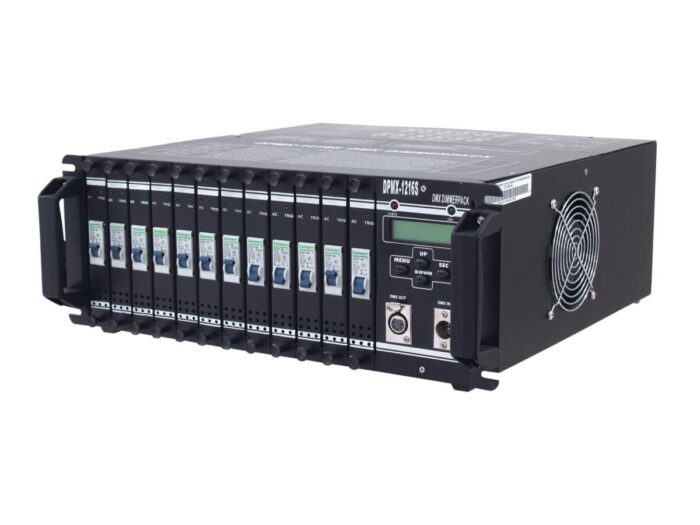

EUROLITE DPMX-1216 S DMX Dimmer Pack

Ilma käibemaksuta 999.17€

1199.00 sh. KM 20%

The following rules are working:
  • Minimum quantity required for this product: 1
  • Cart must contain 1 items at least.
  • Minimum quantity required for category Dimmerid ja lülitid: 1
Tootekood: 70064182 Kategooria:
Küsi tarneaega

    Küsi abi


    +372 5910 4087

    Tasuta tarne, kui tellimuse summa ületab 300€
    14-päevane raha tagasi garantii
    Kui kaup on laos, saad toote kätte järgmisel tööpäeval!

    Reliability is always important. Especially at professional events the breakdown of any part of the equipment cannot be accepted. The DPMX-1216 dimmer pack series is the right answer here because it plays it safe: this universal output stage has an automatic circuit breaker on every channel, so single failures can be corrected without causing a complete blackout. Another benefit are the different outputs. Pole connector, safety plug, CEE or multipin: the DPMX-1216 19″ serves really any kind.

    12 x 16A dimmer, service friendly modules, 12 safety sockets

    • 12-channel dimmer pack with up to 16 A output per channel
    • Modular design of the individual dimmer modules for quick and easy change
    • 3-phase or 1-phase power supply
    • DMX512 control or analog control
    • Adjustable lamp preheat (0-50%) and limiter function to prolong bulb life
    • Curve function for selection of different fade modes
    • Dim or switch option assignable to each channel
    • DMX Fail function: automatic digital input check to detect DMX signal errors
    • 12 built-in programs with adjustable speed
    • Manual mode for dimming capability without an external lighting controller
    • All modes are displayed via LCD
    • Synchronization of several devices possible via DMX
    • Automatic circuit breaker per channel (type C)
    • Channel outputs on the rear panel via safety sockets
    • Rack installation with 4 U
    • Only for professional use
    • Preprogrammed 12 chasers
    • Can be operated in 12 CH mode
    • Controlling by Analog 0-10 V Stand-alone DMX
    • (19″) 48.3 cm rack installation 4 U
    Power supply: 230/380 V AC, 50 Hz
    Output power: Max. 43470 W
    Max. 3680 W per channal
    Output current: Max. 189 A
    Power connection: Mains input screw terminal
    Power output: 12 x Safety contact (F), hinged lid mounting version
    Fuse: Power output fuse per channel C 16 A Fuse resettable
    Programs: Preprogrammed 12 Chasers
    DMX channels: 12
    DMX input: 1 x 3-pin XLR (M) mounting version
    DMX output: 1 x 3-pin XLR (F) mounting version
    Control: Analog 0-10 V Stand-alone DMX
    Control channels: 12
    Color: Black
    Housing design: (19″) 48.3 cm rack installation 4 U
    Dimensions: Width: 48,3 cm
    Depth: 52,0 cm
    Height: 17,8 cm
    Weight: 18,70 kg
