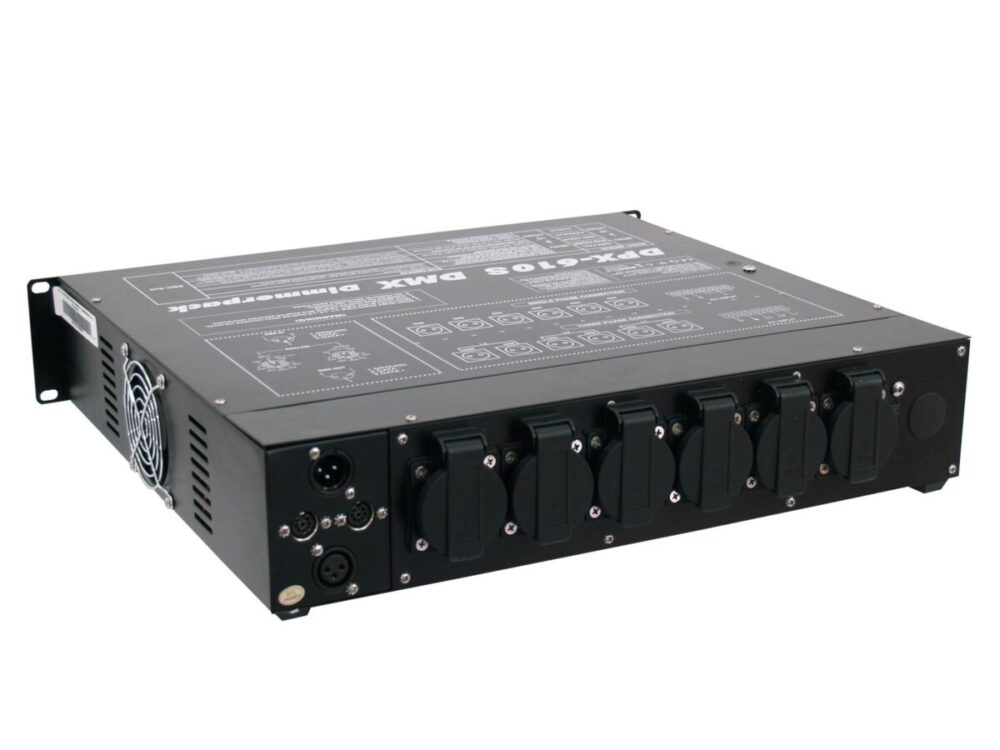

    You can dim if you want – Eurolite dimmer pack for professional usersWith the DPX-610 S DMX Dimmer Pack by Eurolite you get a digital 6-channel dimmer pack for professional use. Eurolite dimmer packs have been an established part of many stages and events since the early 90’s. DMX or analogue The device can be controlled analogously or via DMX. The DMX starting address can be set directly on the device. The DPX-610 S can be operated in single-phase or three-phase mode.Synchronizing multiple devicesYou can synchronize multiple devices via DMX. The built-in display and the LED indicators give you a good overview over the different modes.Setting the lamp pre-heatingThe lamp pre-heating can be set individually and directly on the device. One circuit-breaker per channel protects the device from overcurrent.The channel outputs on the rear panel are designed as safety plugs.

    6x10A dimmer for DMX & analog signals with safety out-sockets

    • Universal dimmer pack for professional use
    • Can be operated 1-phase or 3-phase
    • 6 x 10 A
    • DMX-control or analogue control possible
    • The DMX-starting address can be adjusted on the device
    • Synchronisation of several DPX-610 S possible via DMX
    • Adjusting the lamp pre-heat
    • All modes are displayed via LEDs and the display
    • With automatic circuit breaker per channel
    • Channel-outputs on the rearpanel via safety sockets
    • Only for professional use
    • Preprogrammed 12 chasers
    • Can be operated in 6 CH mode
    • Controlling by Analog 0-10 V Stand-alone DMX
    • (19″) 48.3 cm rack installation 2 U
    Power supply: 230/380 V AC, 50 Hz
    Output power: Max. 13800 W
    Max. 2300 W per channal
    Output current: Max. 60 A
    Power connection: Mains input screw terminal
    Power output: 6 x Safety contact (F), hinged lid mounting version fused
    Fuse: Power output fuse per channel C 10 A Fuse resettable
    Programs: Preprogrammed 12 Chasers
    DMX channels: 6
    Control: Analog 0-10 V Stand-alone DMX
    Control channels: 6
    Color: Black
    Mounting depth: 500 mm
    Housing design: (19″) 48.3 cm rack installation 2 U
    Dimensions: Width: 48,3 cm
    Depth: 41 cm
    Height: 8,9 cm
    Weight: 7,30 kg
