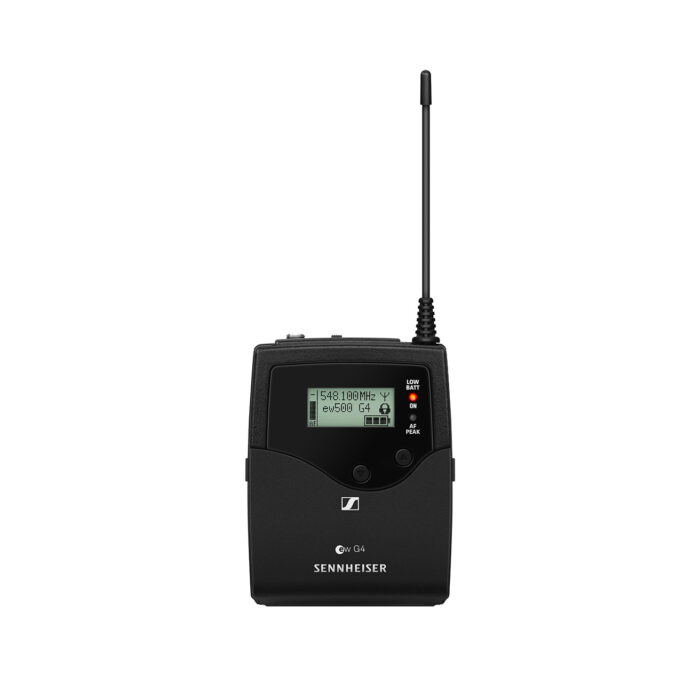

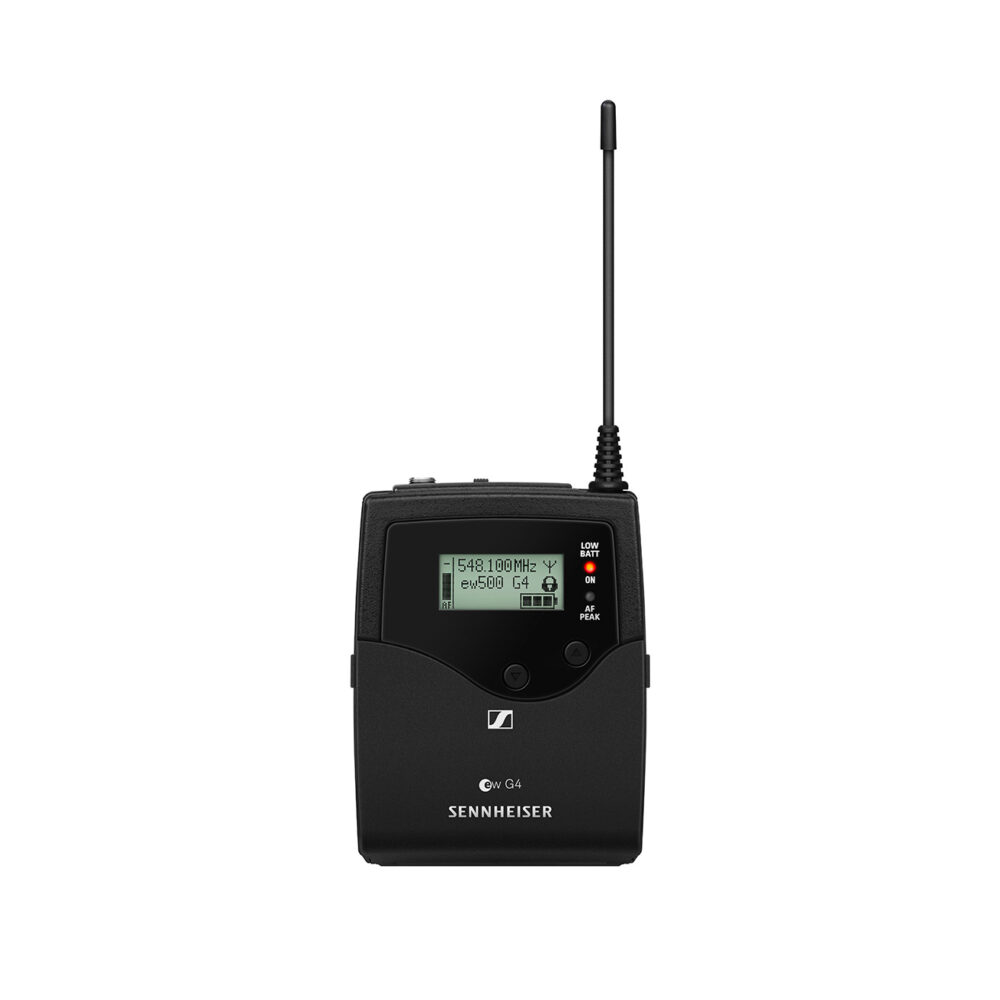

Powerful bodypack transmitter with increased bandwidth and transmission power, ready to take the world’s biggest live stages. For evolution wireless G4 500 Series systems.
- Powerful bodypack transmitter with increased bandwidth and transmission power
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 32 compatible channels
- Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
- High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
-
- Dimensions
-
-
- Compander
-
-
- THD, total harmonic distortion
-
-
- Weight
-
(incl. batteries) approx. 160 g
-
- Signal-to-noise ratio
-
-
- RF output power
-
switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
-
- Switching bandwidth
-
-
- Peak deviation
-
-
- Nominal deviation
-
-
- Operating time
-
-
- Modulation
-
-
- Power supply
-
2 AA batteries, 1.5 V or BA 2015 accupack
-
- Current consumption
-
at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 μA
-
- Input impedance
-
-
- Max. Input voltage
-
-
- Powering
-
3 V battery / 2.4 V rechargeable battery
-
- Transmission frequency
-
Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
-
- AF frequency response
-
Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
-
- Temperature Range
-
-
- Frequency stability
-
