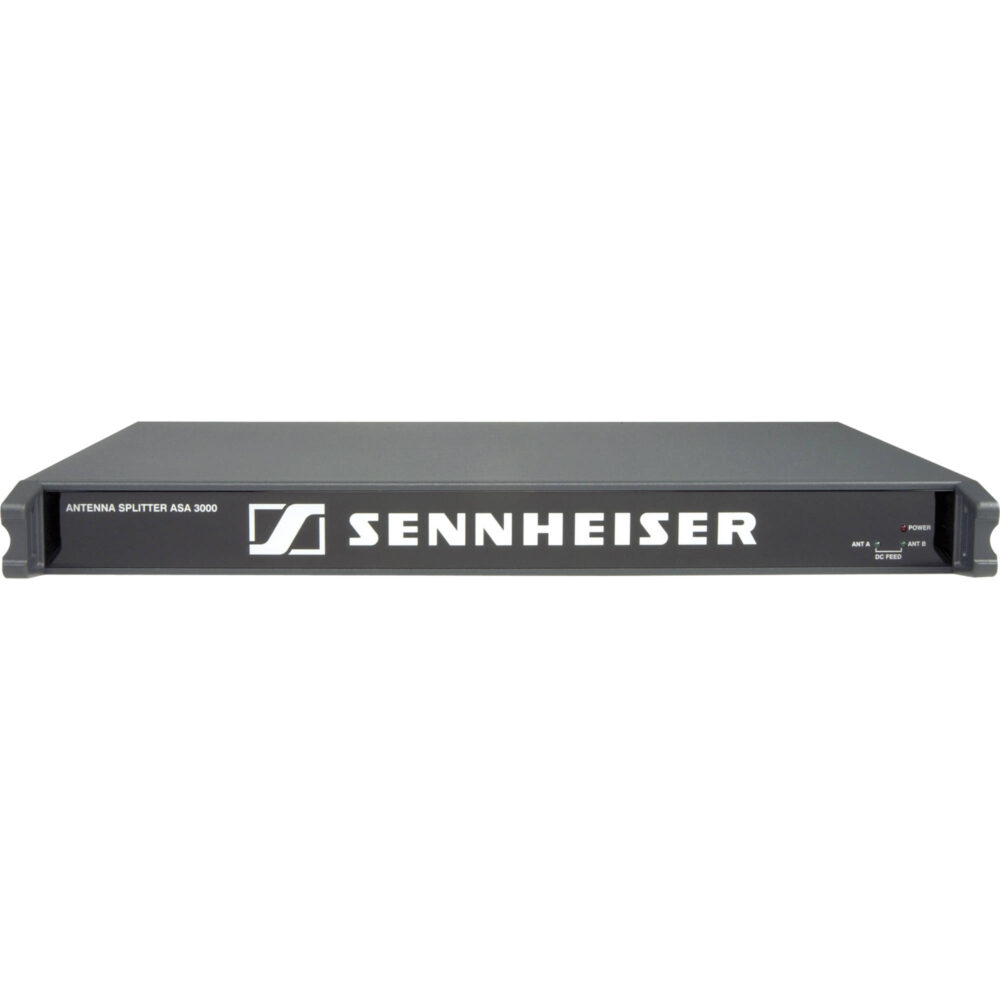

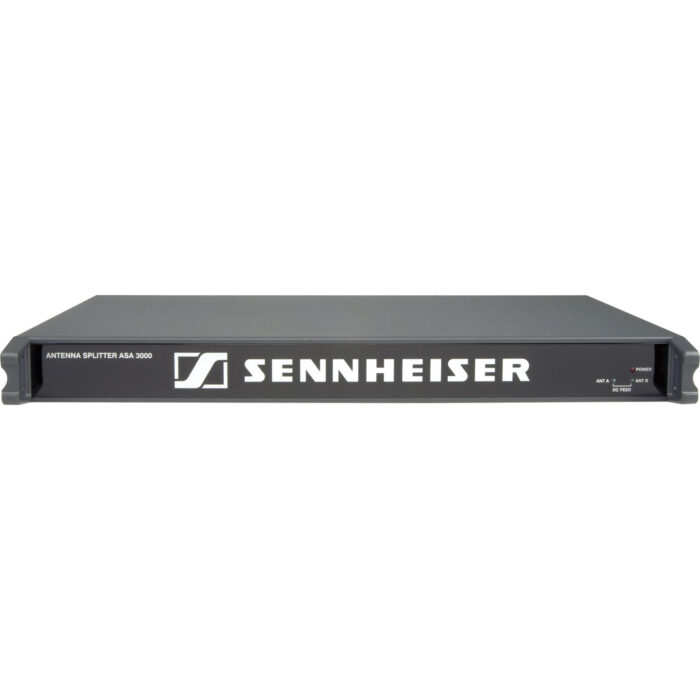

The ASA3000 is an active antenna splitter for multi-channel wireless microphone systems with up to 16 channels (8 x EM3031, 8 x EM3032 or 8 x EM3532). It works well with the entire UHF range, and can be equipped with selective input filter modules to narrow the input frequency range.
Features
- Active Splitter
- Broadband input modules
- Optional selective input modules
- DC power supplied to antenna head amplifiers
- Robust 19″ housing in 3000 Series design
Specifications
- Dimensions: 19″, 1RU
- Weight: 6.61lbs.
- Nominal Impedance: 50?
- RF Frequency Range: 470 – 870MHz
- Antenna Connector: BNC
- Mains Frequency: 50 – 60Hz
- Mains Voltage: 100 – 240V
- Remarks: Booster Feed: 12V, 200mA
- Transmission Loss: 0dB
