Acoustical specifications
- FREQUENCY RESPONSE: 35 Hz ÷ 120 Hz
- MAX SPL @ 1M: 135 dB
Transducers

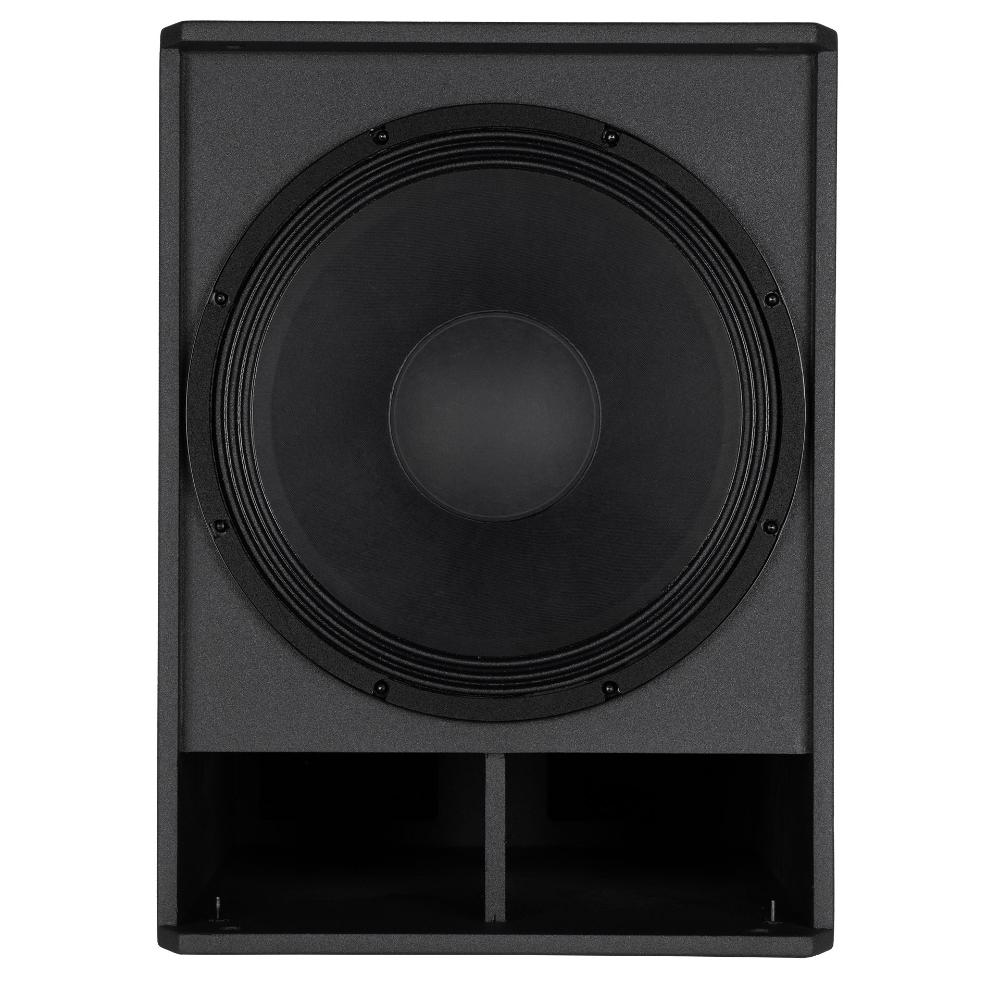

- WOOFER:18”, 4.0” v.c

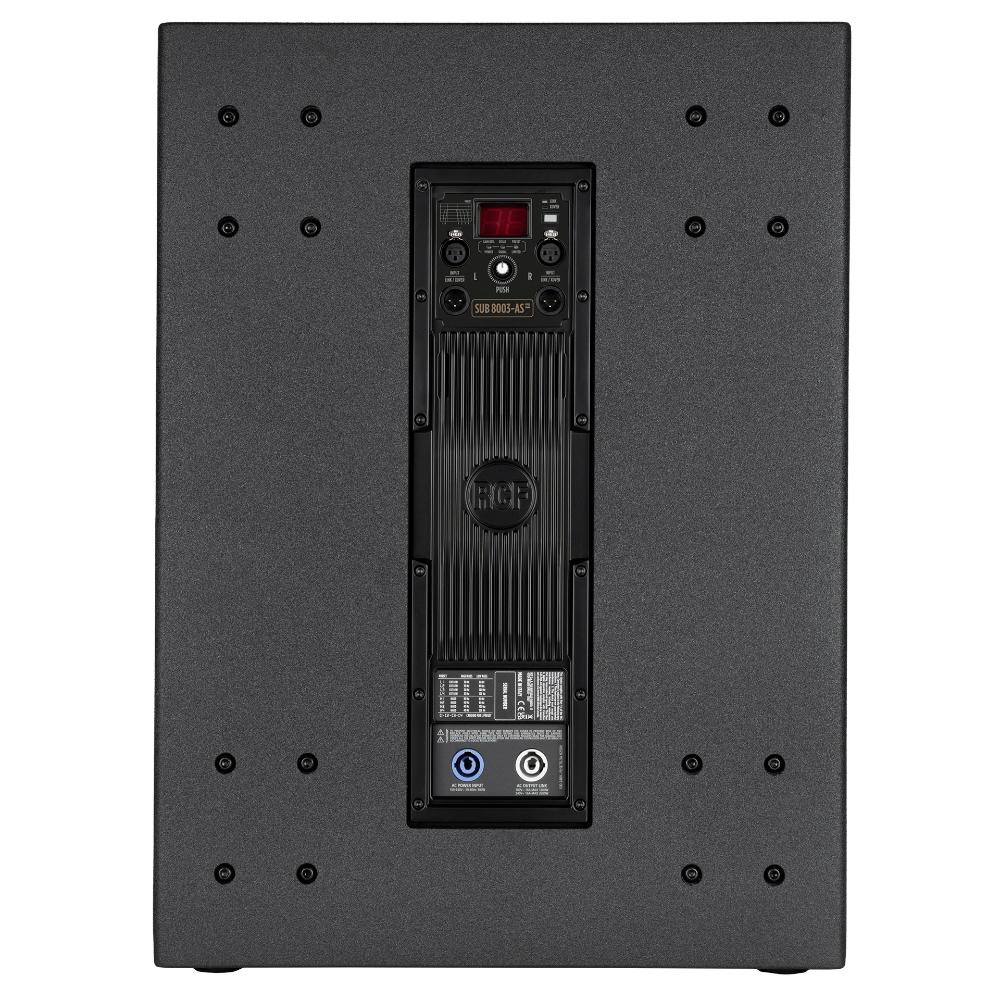

Input/Output section
- INPUT SIGNAL: bal/unbal
- INPUT CONNECTORS: XLR
- OUTPUT CONNECTORS: XLR
- INPUT SENSITIVITY: -2 dBu/+4 dBu
Processor section
- CROSSOVER FREQUENCIES: Selectable
- PROTECTIONS: Thermal, RMS
- CONTROLS:Gain, EQ, Phase, Xover, Delay, Cardioid
Power section
- TOTAL POWER: 2200 W Peak, 1100 W RMS
- LOW FREQUENCIES: 2200 W Peak, 1100 W RMS
- COOLING: Convection
- CONNECTIONS:Powercon IN/OUT
Standard compliance
- CE MARKING: Yes
Physical specifications
- CABINET/CASE MATERIAL: Baltic birch plywood

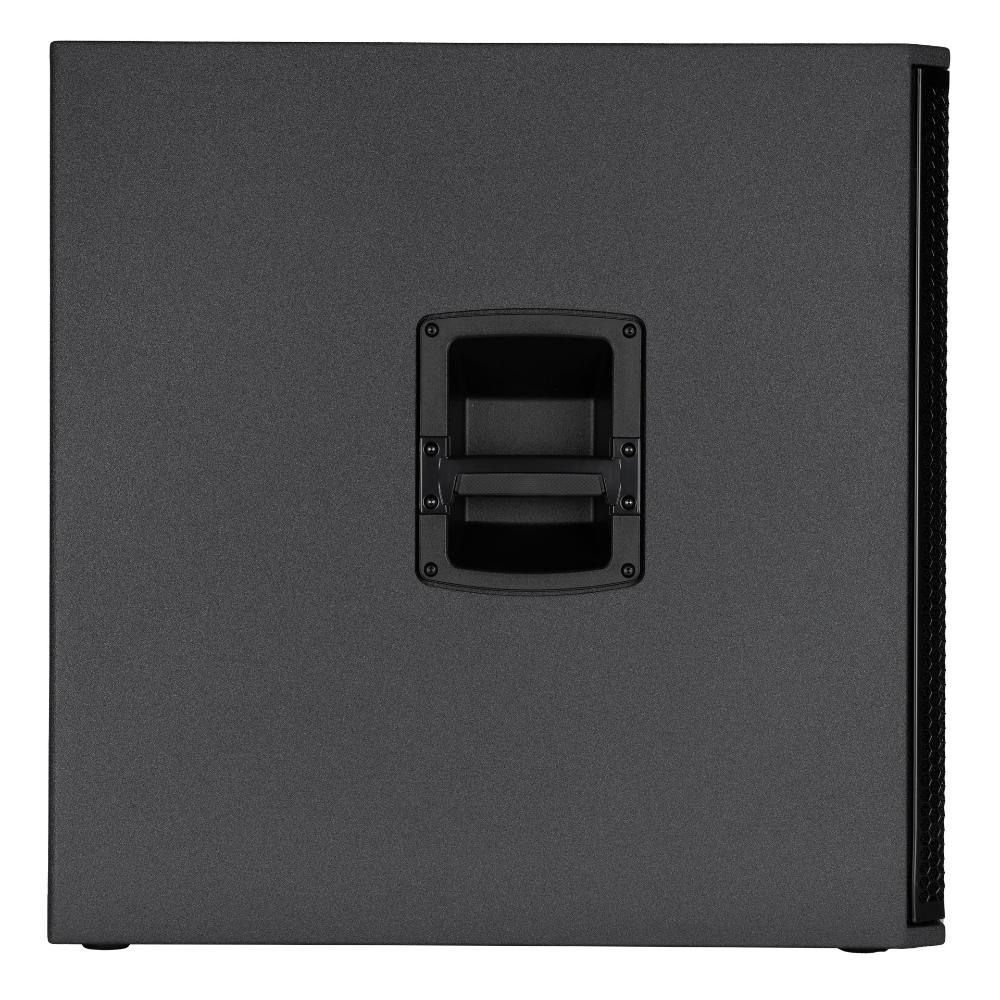

- HANDLES: 2 side

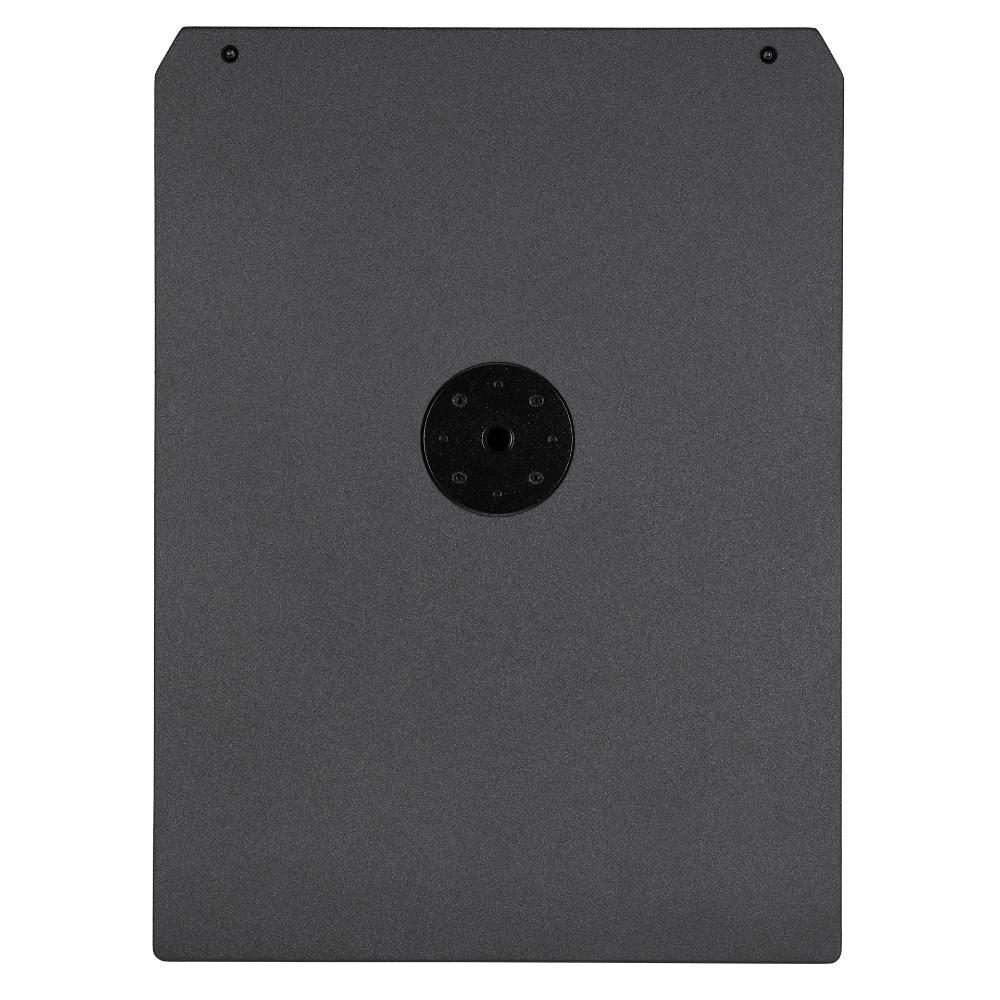

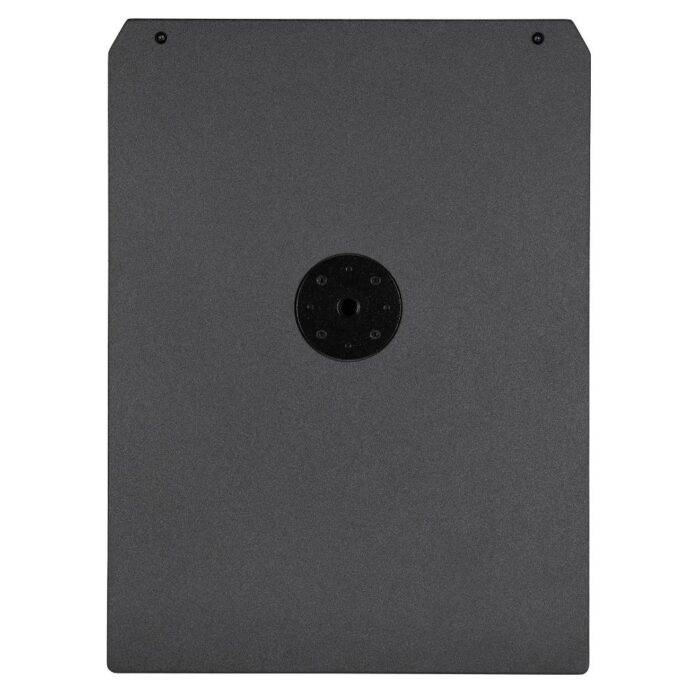

- POLE MOUNT/CAP: Yes

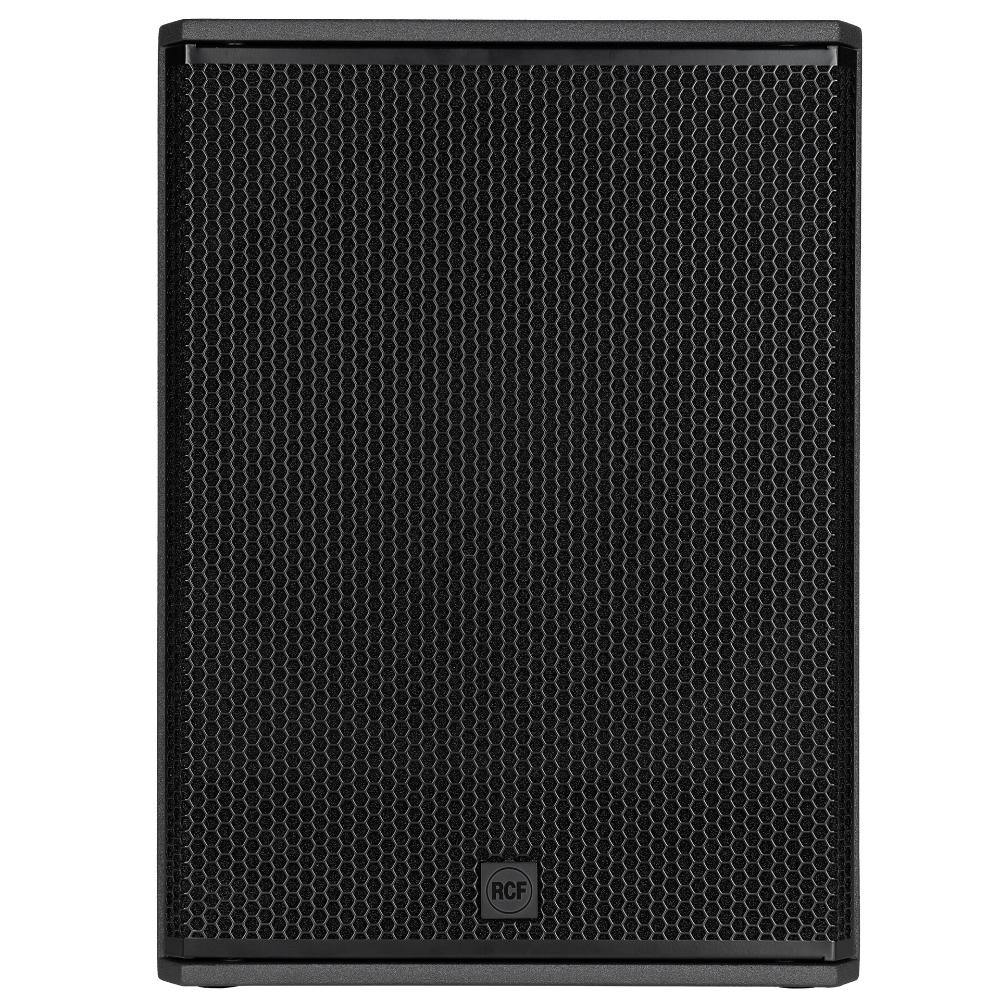

- GRILLE: Steel
- COLOR: Black
Size
- HEIGHT: 693 mm / 27.28 inches
- WIDTH: 505 mm / 19.88 inches
- DEPTH: 685 mm / 26.97 inches
- WEIGHT: 37.6 kg / 82.89 lbs
Shipping informations
- PACKAGE HEIGHT: 735 mm / 28.94 inches
- PACKAGE WIDTH: 745 mm / 29.33 inches
- PACKAGE DEPTH: 565 mm / 22.24 inches
- PACKAGE WEIGHT: 44 kg / 97 lbs
