- 2200 W
- 133 dB max SPL
- 40 Hz – 120 Hz frequency response
- 15″ Woofer, 3.0″ v.c.
- Birch tour grade cabinet
- Selectable gain, X-over, cardioid mode and time delay
- Stereo XLR input, Stereo XLR signal output

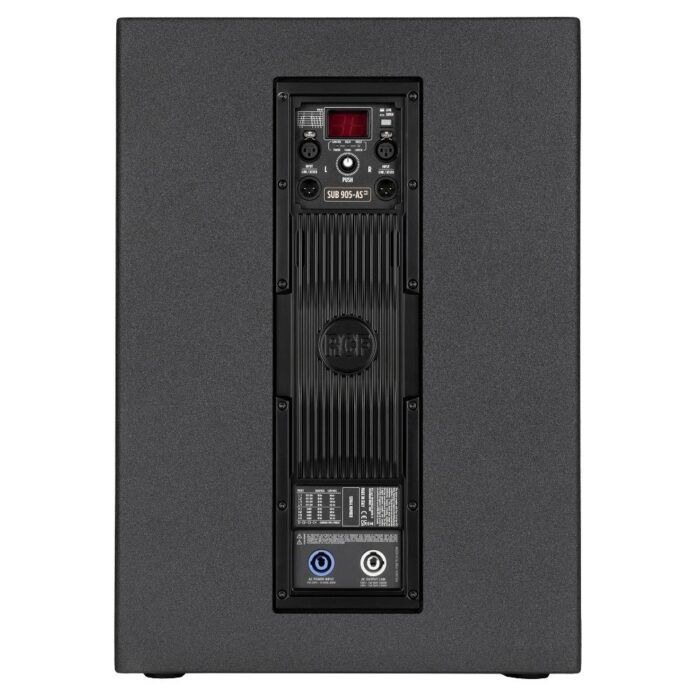

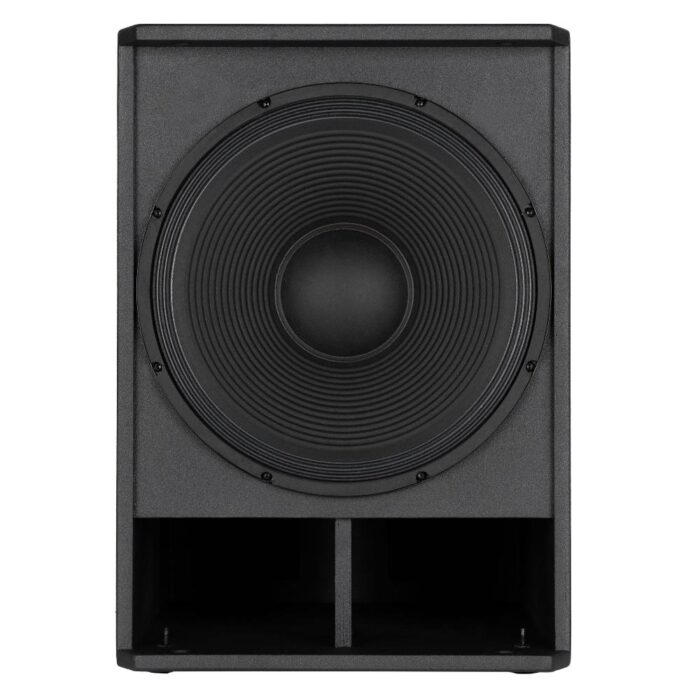

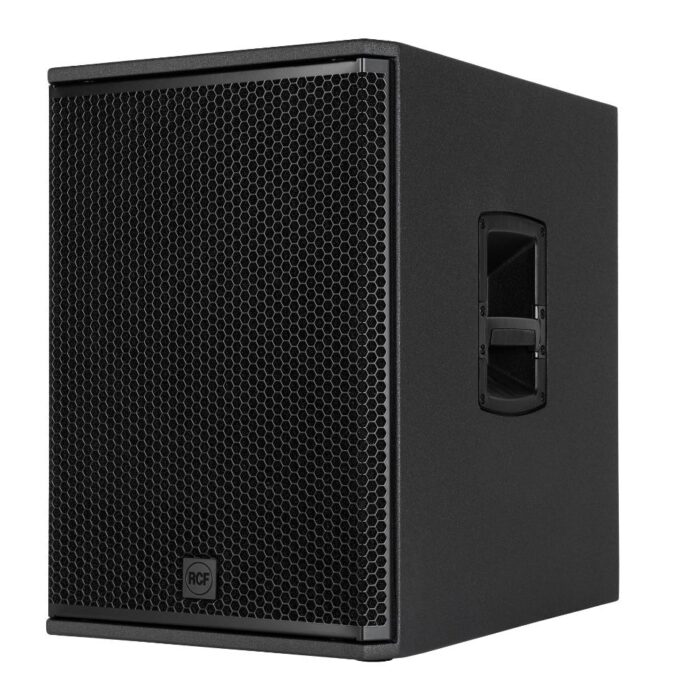

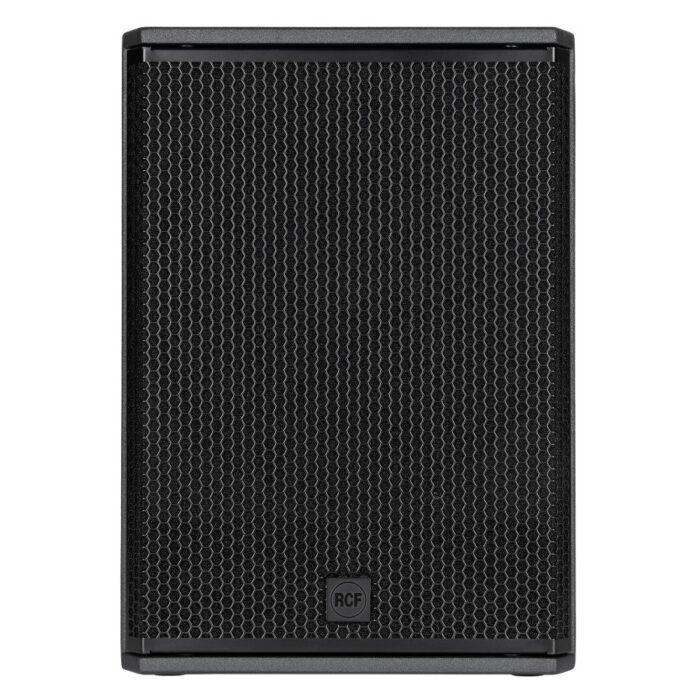

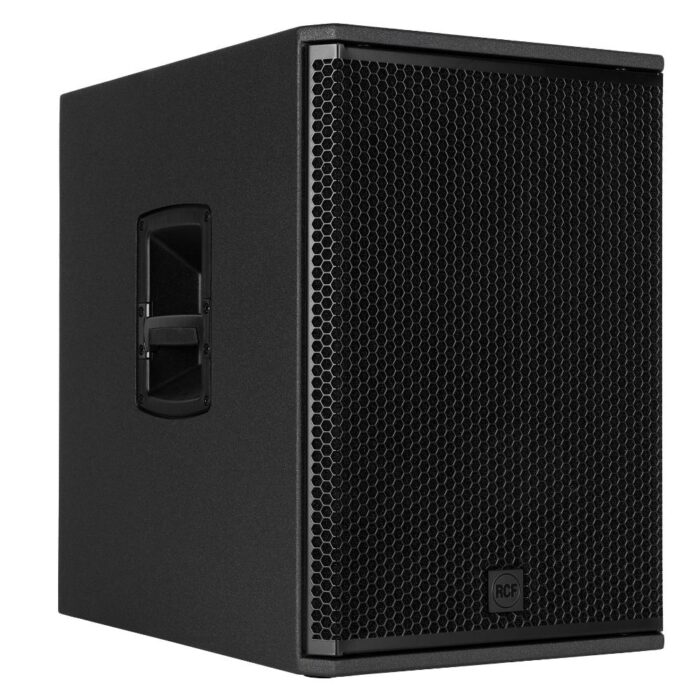

The SUB 905-AS MK3 is a self-powered extended low-frequency subwoofer with internal DSP. Its compact cabinet houses a state-of-the-art 15″ transducer featuring ceramic magnets and a 3.0” voice coil. The internal amplifier manages up to 2200W power output,, delivering sound pressure levels up to 133 dB. Proprietary Bass Motion Control processing provides extended linearity and remarkable sound integrity. Rear panel controls include presets, crossover frequency, and polarity selection, cardioid, and output delay settings. The tour-ready, rugged all-wood cabinet with scratch-resistant polyurea coating is stackable and lightweight, ensuring quick set-ups and tear-downs. Built specifically for highly demanding applications, SUB 905-AS MK3 is the perfect workhorse for music professionals.
TECHNICAL SPECIFICATIONS
Acoustical specifications Frequency Response: 40 Hz ÷ 120 Hz
Max SPL @ 1m: 133 dB
Transducers Woofer: 15”, 3.0” v.c
Input/Output section Input connectors: XRL Stereo
Output connectors: XRL Stereo
Input sensitivity: -2 dBu/+4 dBu
Processor section Crossover Frequencies: Selectable
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Gain,EQ, phase, xover, delay, cardioid
Power section Total Power: 2200 W Peak, 1100 W RMS
Low frequencies: 2200 W Peak, 1100 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
Standard compliance Safety agency: CE compliant
Physical specifications Cabinet/Case Material: Plywood
Handles: One handle each side

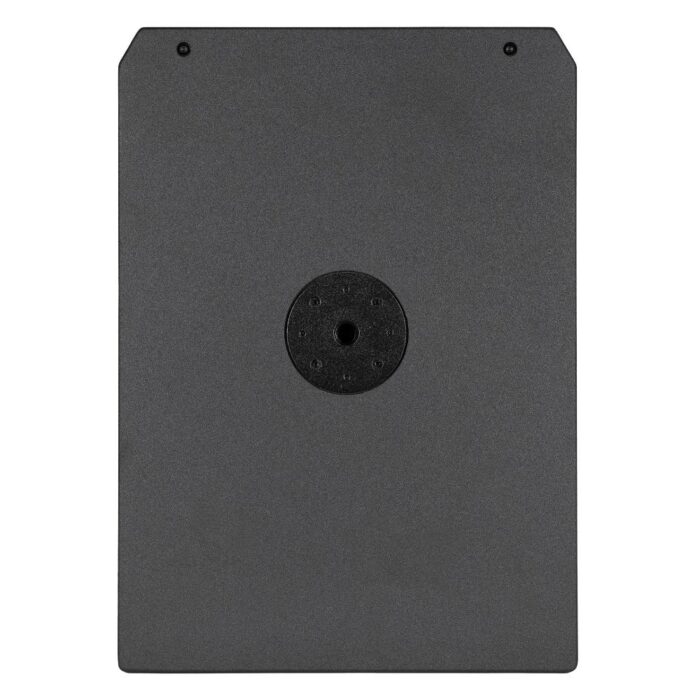

Pole mount/Cap: Yes
Grille: Steel with clothing
Color: Black
Size Height: 590 mm / 23.23 inches
Width: 420 mm / 16.54 inches
Depth: 590 mm / 23.23 inches
Weight: 26 kg / 57.32 lbs
Shipping information Package Height: 640 mm / 25.2 inches
Package Width: 650 mm / 25.59 inches
Package Depth: 480 mm / 18.9 inches
Package Weight: 30 kg / 66.14 lbs
