Delivering extraordinary clarity and power handling, the Q Series modules feature best in class flexibility for multiple applications. Due to its sleek form factor, the speaker is unobtrusive and preferred when space is a constraint. Component positioning of the Q Series and the ability to rotate the cabinet in any position, ensure precise directivity and a detailed sound image, reducing spots of break up or attenuation. RCF developed the Q Series for fixed installations requiring remarkable coverage and coherence in a premium yet discrete look. Despite their dimensions, Q Series speakers are built upon RCF’s premium concert-proven technologies for optimum power-to-size ratio able to cover large areas.
Legendary transducers
The RCF Q Series features state-of-the-art RCF transducers with neodymium magnets. RCF’s experienced engineering teams have developed and matched each component. A set of protections preserve product life and reliability.
Low frequencies

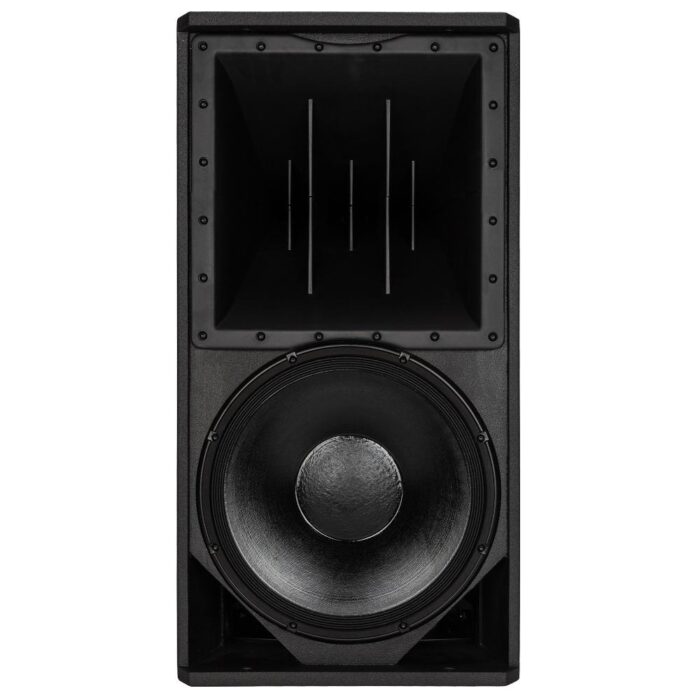

- 15″ neodymium woofer, 4.0″ v.c.
- Water-resistant fiber doped cone
- Polycotton M-roll surround
- Hypervented magnetic structure
High frequencies
The ND940 Compression Driver in pure Titanium with a 4 inches voice coil works from 600 Hz. This allows a better impulse response, fast decay, translating in perfect vocal clarity and enhanced quality in mid-frequency — leaving the woofer to manage the lower part of the spectrum. Lightweight and powerful, RCF neodymium drivers are a reference in performance and reliability.

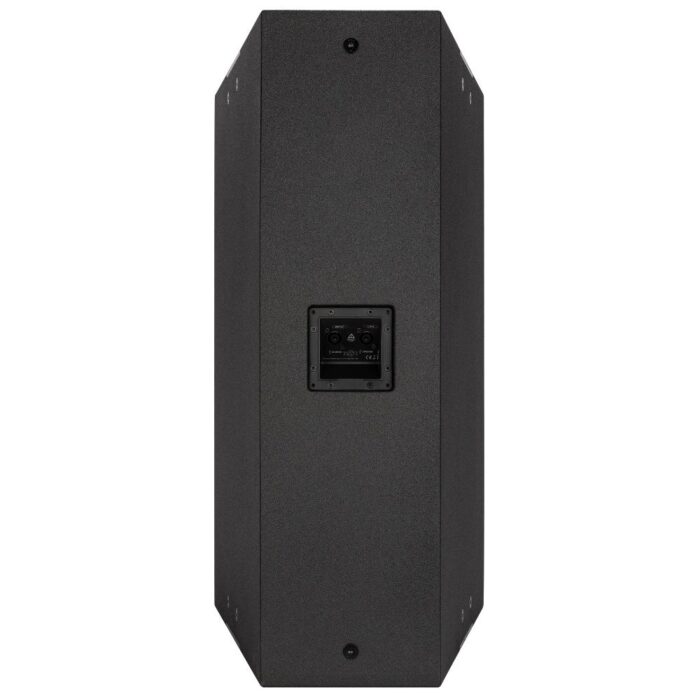

The speaker can only be powered by two amplifiers, one for each transducer (4 poles via NL4 connector).
The speaker can only be powered by two amplifiers, one for each transducer (4 poles via NL4 connector).
Constant reliability

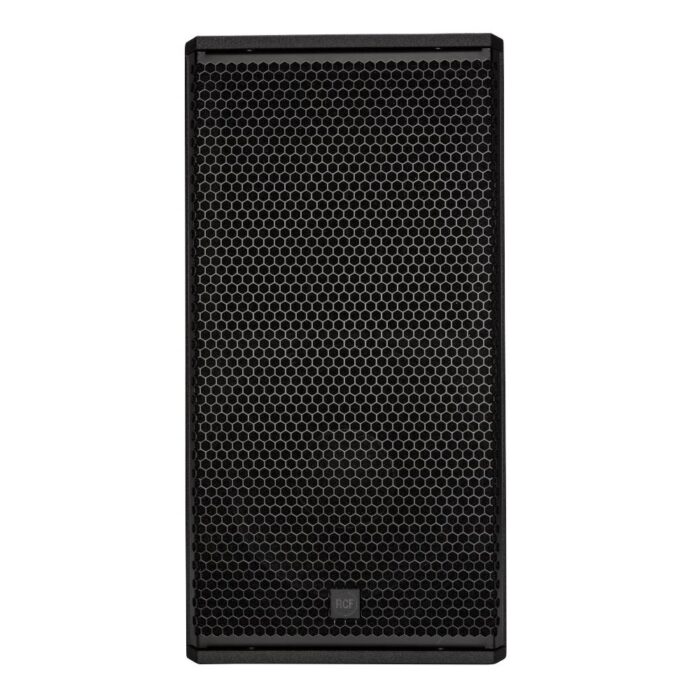

The Q Series speaker is carefully engineered to pack maximum output and superb sound quality with minimum size. The cabinet is made of high-quality water-resistant Baltic birch plywood with internal structural metal bracings, rigid and resonance-free. A special polyurea paint creates a very thick coating of the cabinet, making the speaker highly resistant to scratches, bumps, sun, and extreme weather conditions. The heavy-duty front grille is powder coated. A transparent-to-sound foam backing on the inside of the grille helps to further protect the transducers from dust.
Use anywhere attitude

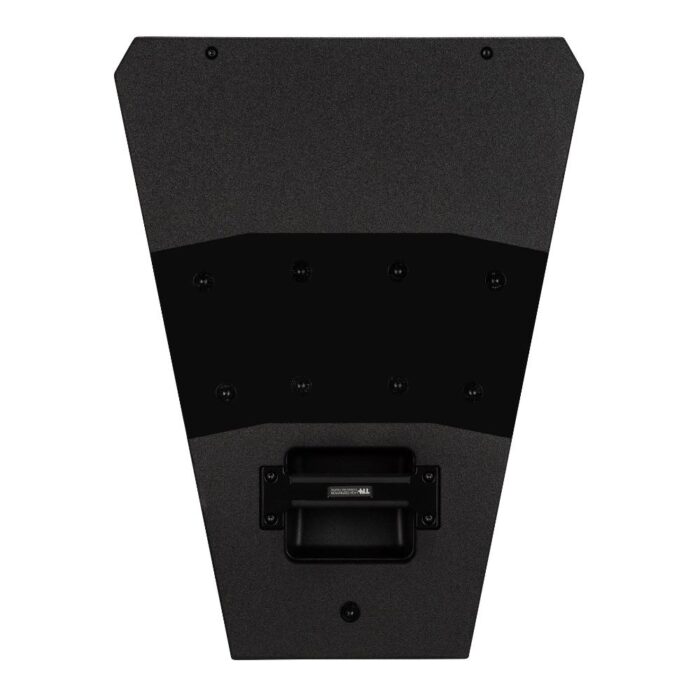

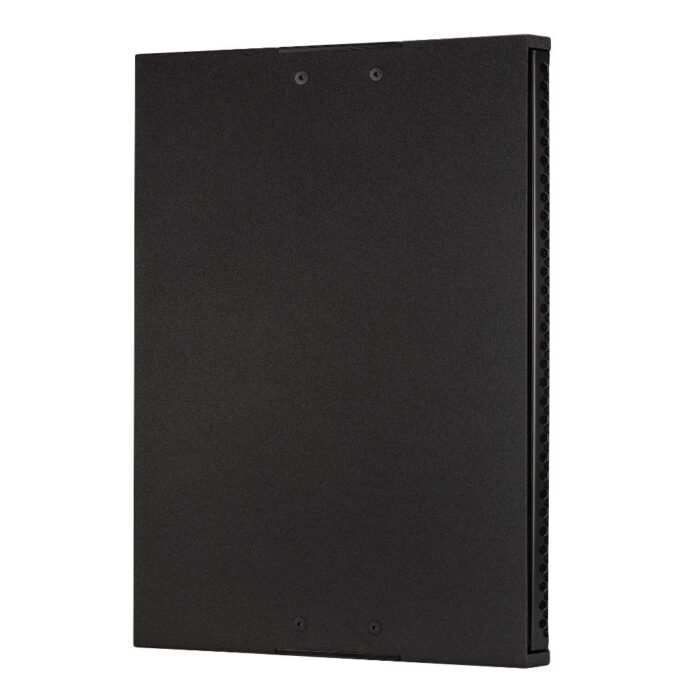

Q Series speakers can be deployed either horizontally or vertically, with a coverage angle proportionally equal to the sum of the enclosures in the array (22.5° x n). The cabinet features multiple M10 suspension points on both sides. Optional rigging accessories include two fly-bars for horizontal (up to 4) and vertical placement (up to 6 with a single flybar, or 8 with double flybar), stainless steel plates for rigging, and -10 degree spacing to decrease the coverage angle for long-throw applications. All rigging is made of high-strength structural steel with a high safety factor. The compactness and lightweight of the system, combined with top of class suspension system, guarantee a fast and secure hanging procedure.
Vertical configurations
Horizontal configurations
Vertical hanging with a 10° angle
4 X 10° modules
Vertical mixed configurations
4 X 10° modules + 2 x 22.5° modules
