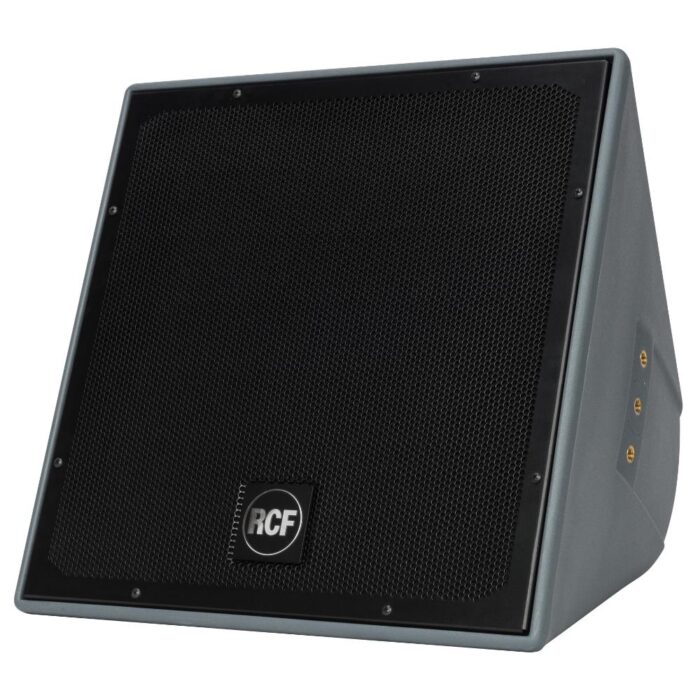

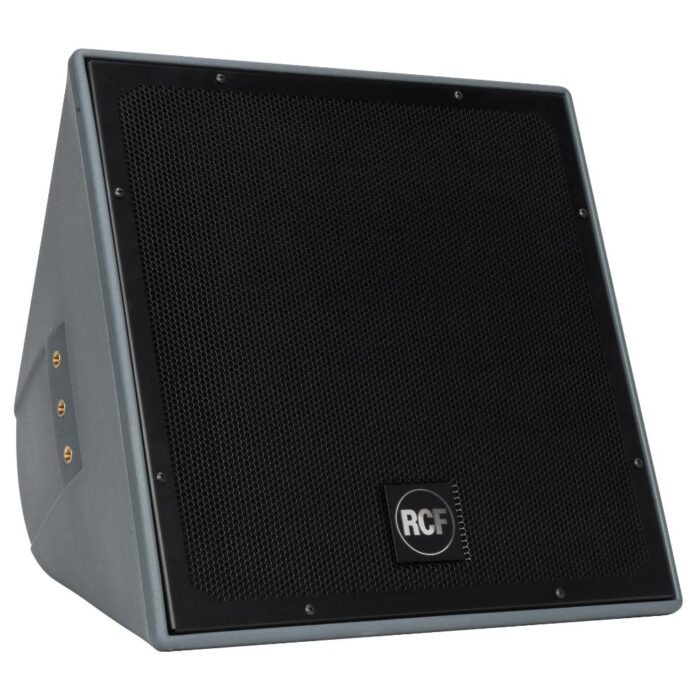

RCF’s P8015-S is a weatherproof bass reflex subwoofer that is equipped with a 15″ low frequency neodymium transducer with a 4″ voice coil, offering enough power and efficiency for a variety of professional outdoor or indoor applications.
P 8015S
OUTDOOR/INDOOR SUBWOOFER
- 800 W AES
- 15″ high power neodymium wooofer with 4″ voice coil
- Arrayable bass-reflex compact subwoofer
- 132 dB max SPL
The P8015-S has been specifically designed to reinforce sub bass frequencies in P Series speakers array systems.
The cabinet is a single piece rotational moulded in medium density polyethylene, fully UV protected. The cabinet is equipped with 12 x M10 brass inserts, a stainless steel U-Bracket and pair of spacers for 90° mounting. The front logo is in aluminium with open-cell fibres and water repellent fabric backing. The P8015-S is suitable for indoor and outdoor applications/installations, they meet the requirements of IP55 standard (International Protection Rating).
Features:
- 800 W AES
- Watherproof cabinet IP55
- Aluminium grille and stainless steel bracket
- Arrayable bass-reflex compact subwoofer
- 132 dB max SPL
- 15″ high power neodymium wooofer with 4″ voice coil
Specifications:
- Acoustical:
- Frequency Response -10 dB: 50 Hz ÷ 0,2 kHz
- Max SPL @ 1m: 132 dB
- System Sensitivity: 97 dB
- Nominal Impedance: 8 ohm
- Power Handling: 800 W
- Peak Power Handling: 3200 W
- Recommended Amplifier: 1600
- Transducers:

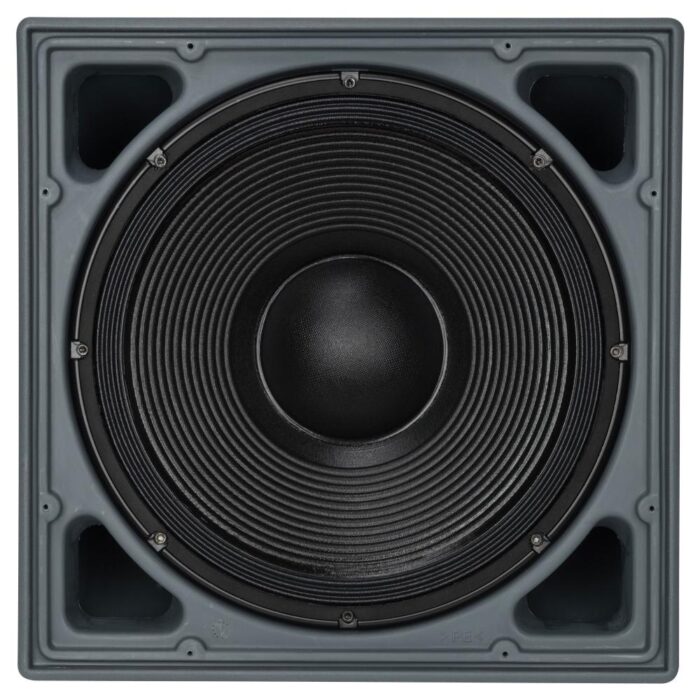

- Woofer: 15″ neodymium, 4″ voice coil
- Nominal Impedance: 8 ohm
- Sensitivity: 97 dB
- Cabinet:
- Cabinet Material: 8 mm roto-molded polyethylene

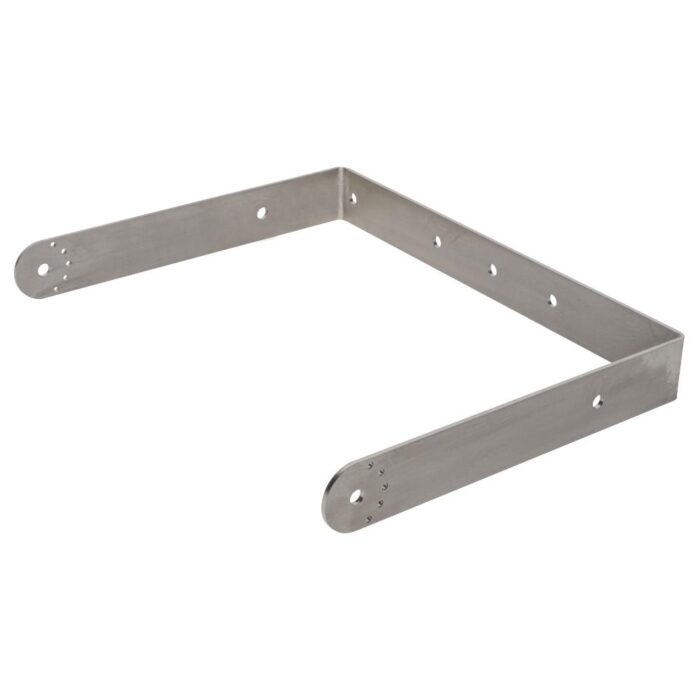

- Hardware: 12 x M10 + U bracket and pair of spacers

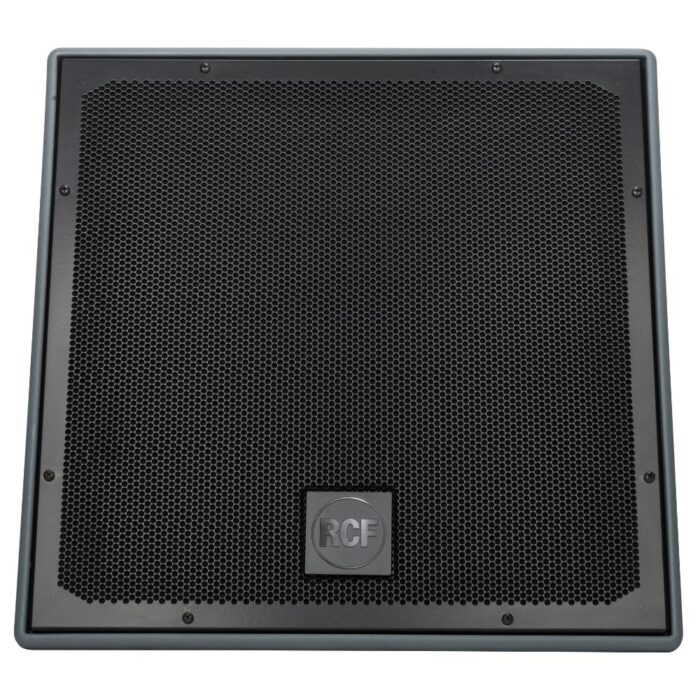

- Grille: Custom perforated aluminium grille
- Color: Gray
- Physical:
- Dimensions: 18.22″ H x 18.22″ W x 17.04″ D (463 x 463 x 433 mm)
- Net Weight: 40.33 lbs (18.3 kg)
This woofer has been specifically designed to reinforce sub bass frequencies in RCF P Series speaker array systems.
