- 60W AES power handling
- 113 dB max SPL
- 90 ÷ 20000 Hz frequency range
- 120° x 120° constant directivity coverage angle

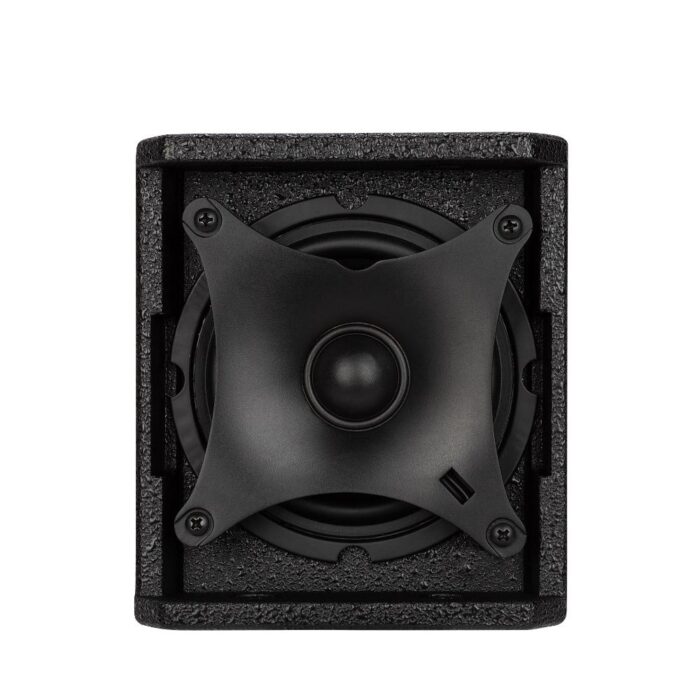

- 1 x 4″ coax woofer
- 1 x 1″ voice coil neodymium dome tweeter
- High quality plywood cabinet
- Wall mount bracket included

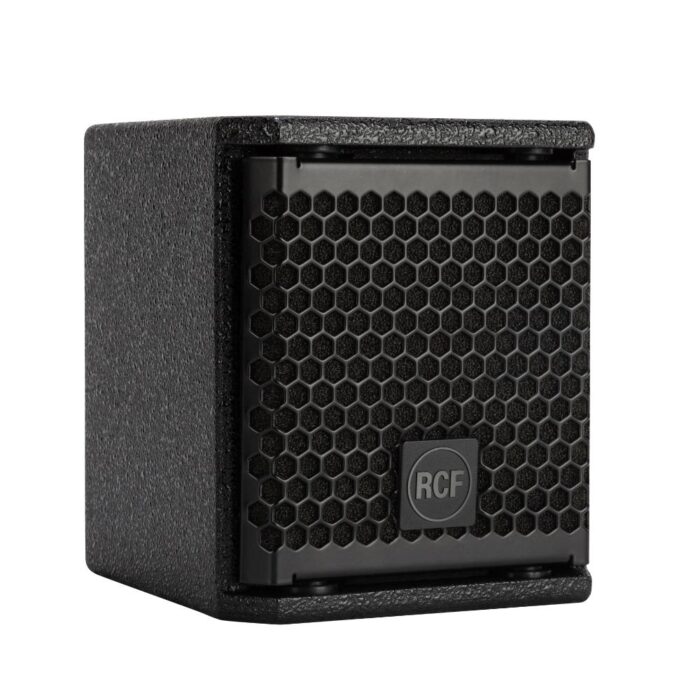

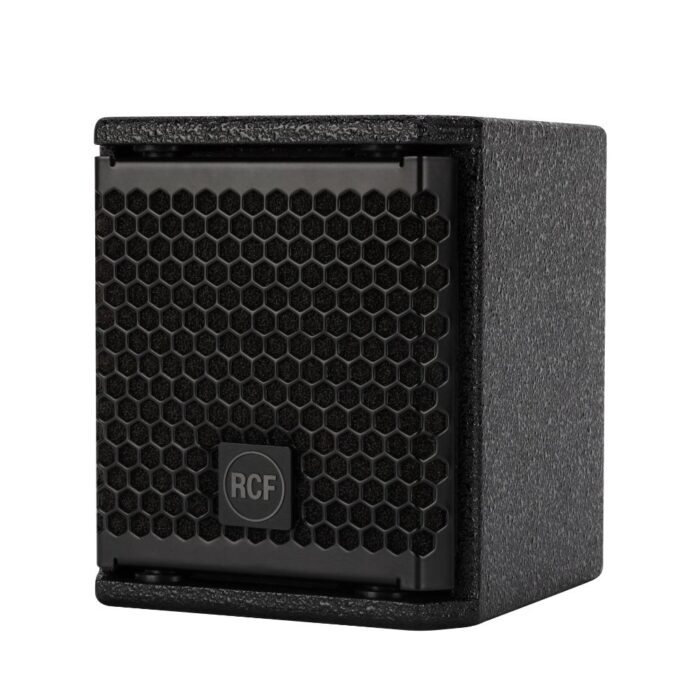

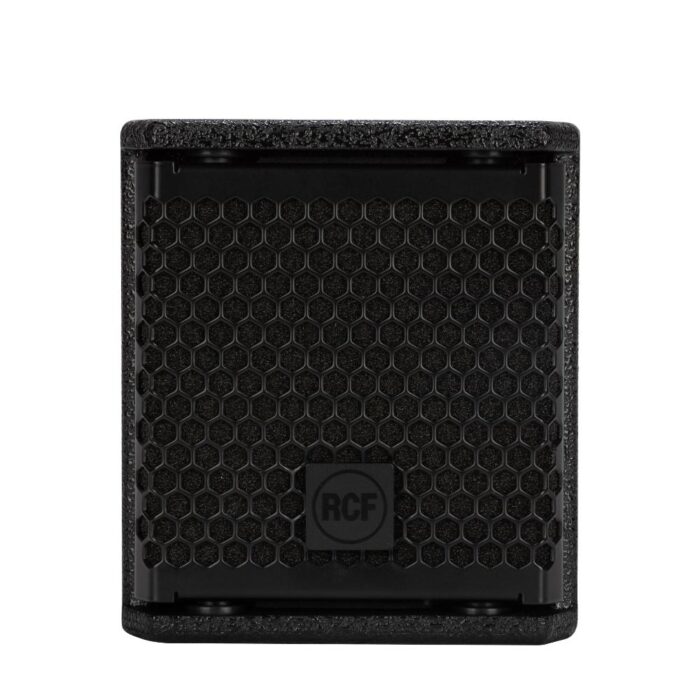

COMPACT M 04 is a multipurpose two-way full-range coaxial speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. M 04 features high sensitivity, thanks to the use of oversized magnets, and a HI-FI sound quality, with smooth and wide frequency response. The SPL level of low-distortion audio the M 04 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 04 suitable for almost any environment, even with architectural constraints. Included wall mount bracket allow the use of the M 04 on wall or ceiling installations.
FREQUENCY RESPONSE (-10DB) | 90 Hz ÷ 20000 Hz |
MAX SPL @ 1M | 113 dB |
POWER HANDLING | 60 W RMS |
PEAK POWER HANDLING | 240 W PEAK |
CROSSOVER FREQUENCIES | 1800 Hz |
DOME TWEETER | 1.0” neo, 1.0” v.c |
WOOFER | 4.0”, 1.0” v.c |
GRILLE | Steel |
HEIGHT | 148 mm / 5.83 inches |
WEIGHT | 2.3 kg / 5.07 lbs |
