- Bright, 1.5mm pixel pitch wide viewing angle LED display
- Simple 3-step installation process
- 24/7 continuous operation
- Eco-friendly standby mode at less than 0.5W

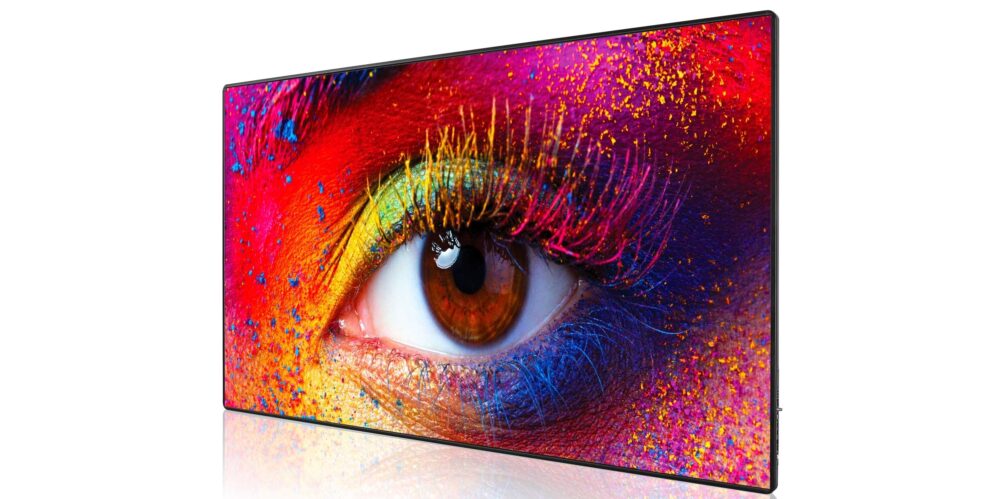

The fully optimised 130” (2.88 x 1.62 m) FHDS130 SOLO LED display is a Full HD 1080p all-in-one solution for a quick and easy out-of-the-box installation. With a simple three step process, the complexity of a traditional LED build and installation is removed. With this unique pre-build process, installation time required is dramatically reduced from days to hours. The FHDS130 comes pre-calibrated out of the box, removing the hassle of managing software and the various associated files, whilst ensuring the image is optimised for immediate usage.
A range of connectivity and control options are available on the FHDS130 including dual HDMI, USB, RS232 and HDBaseT. In addition, users can take advantage of Optoma’s Control Q application to control the display from a smartphone or tablet. This powerhouse display also features the ability to control the display from a central control system along with low power consumption when powered on, and an eco-friendly <0.5W standby mode, conforming with ErP regulations to save energy and costs.
Quick and simple installation
With a simple three step process, the complexity of a traditional LED build and installation is removed. Simply connect the display sections, mount the display and apply LED tiles to the connecting area. With this unique pre-build process, installation time required is dramatically reduced from days to hours.
Fully optimised LED display
Optoma AIO range comes pre-calibrated out-of-the-box, removing the hassle of managing software and the various associated files, whilst ensuring the image is optimised for use straight away. Integrated HQUltra and media player technology eliminates the need for any additional separate devices associated with traditional LED solutions.
Scaling and switching
Optoma LED displays use industry leading HQUltra image processing technology which provides best in class picture quality with low latency video processing. Inputs can be switched seamlessly in as little as 0.25 seconds. The same processor can directly drive loudspeakers in meeting rooms and smaller conference rooms, plus line level balanced stereo outputs to drive an external amplifier or powered loudspeakers.
24/7 Usage* for longer continuous operation
Optoma AIO displays are designed to be used 24/7, offering you continuous operation whatever your display needs. Engineered with heavy-duty components Optoma AIO range gives you peace of mind regarding your long-term Audio-Visual needs.
*Under specific conditions:
- Max 70% power
- Max 25°C
- Max 50% relative humidity
- Displaying typical moving video content, not a static or mainly white image
Eco Friendly
Supporting <0.5W in standby mode, that conforms with ErP regulations and the ability to manage the display from a central control system, power consumption is reduced which saves on energy costs.
Control Q App
Take advantage of Optoma’s Control Q application to control the LED display from a smartphone or tablet. It enables users to control the display and also manage or add content to the in-built media player.
| Screen Size | 130″ |
|---|---|
| Native Resolution | 1080p 1920 x 1080 |
| Brightness | 800 nits |
| Contrast | 5000:1 |
| Viewing Angle | 140° |
| Life | >100,000 hours |
| Dimensions (W x D x H) (mm) | 2919 x 71 x 1659 |
| Weight (Kg) | 125 |
| Pixel Pitch | 1.5mm |
| Pixel Configuration | SMD 3-1 |
| Pixel Resolution | 160 pixels/module (w), 90 pixels/module (h) |
| Pixels per Area | 444,444 pixels/m2 |
| Displayable Colors | 281 Trillions |
| Refresh Rate | >3000 Hz |
| I/O Connectors | 2 x HDMI 2.0, 1 x 3G-SDI, 1 x VGA, 1 x RJ45, 1 x RS232, 1 x USB-B service, 2 x USB-A, 1 x USB-A service, 1 x HDBaseT, 1 x Audio 3.5mm |
| Power Supply | 200-240V |
| Power Consumption | ≤0.5W (standby), 3000W (max) per panel |
| Ingress Protection | IP40 (front), IP20 (back) |
| Surface Finish | Black |
| Storage Temporature | -10°C – 60°C |
| Operating Temperature | 0°C – 40°C |
