- It is optimized in the ISM 2.4 GHz / 5 GHz band to amplify the antenna signal, offering 20 dB gain to compensate for signal loss over long antenna cables and to increase the reception range and signal stability.
- The antenna booster can be powered by the bias of the receiver’s antenna connector or by an external power supply, allowing longer antenna cables can be connected with more boosters.
- With an aluminum casing, it features superb heat dissipation and waterproof.

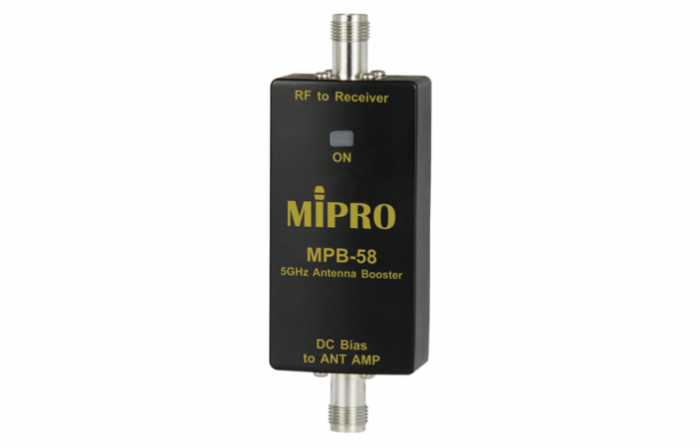

Model – MPB-58
Name – 5 GHz Antenna Booster
Frequency Range – 5 GHz
Gain – Fixed, approx. 20 dB
Input / Output Connectors – 1-to-1 TNC. 50 Ω Impedance.
Input Power – 10 ~ 24 V DC
Regulated Power Output – Equals to the bias
Dimensions – 41 × 80 × 24 mm (W×H×D)
Weight – Approx. 260 g
