2.4GHz Quasi-Circularly Polarized Receiving Antenna. Sold Individually.
- Provides optimized solution for both transmitting and receiving RF signals.
- Effectively reduce the polarization loss of the antenna to improve signal strength
- Built-in 12dB booster
- Waterproof and weather resistant
- Ideal for both outdoor and indoor applications
- 2.4 GHz – ISM Frequency range

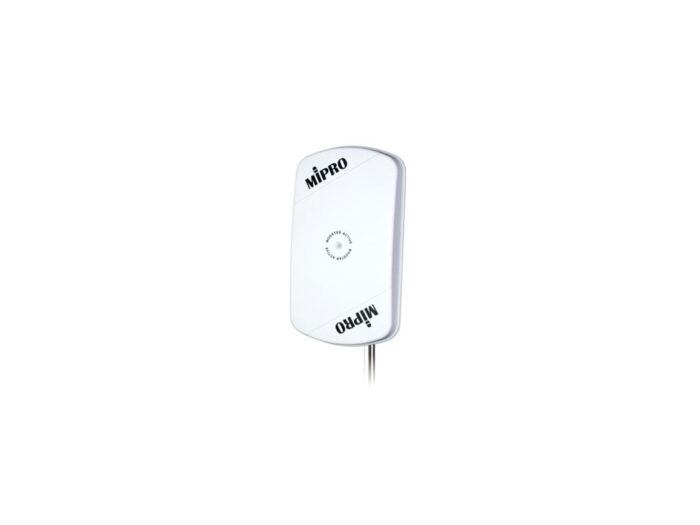

The MIPRO AT-24 2.4 GHz Quasi-Circularly-Polarized Receiving Antenna has a distinctive appearance and is patented in multiple countries, providing an optimized solution for both transmitting and receiving RF signals throughout the 2.4 GHz bandwidth. The front area is the main focus of antenna direction for either vertical or horizontal polarization.
The AT-24 can effectively reduce the polarization loss of the antenna to improve signal strength. It has a built-in 12dB booster and thus compensates for the signal loss of a coaxial cable to improve reception range and signal quality. It is waterproof and weather-resistant and ideal for both outdoor and indoor applications.
Manufacturer Specs
| Model: AT-24 Specifications |
| Description |
2.4 GHz Quasi-Circularly-Polarized Receiving Antenna |
| Type |
Additional antenna |
| Frequency Range |
2.4 GHz – ISM |
| Antenna Gain |
10 dBi |
| Built-in Booster |
Built-in 12 dB booster |
| Impedance |
50 Ω |
| Connector |
TNC female |
| Power Supply |
10 ~ 24V DC |
| Dimensions (W × H × D) |
160 × 275 × 85 mm / 6.3 × 10.8 × 3.3 “ |
| Net Weightt |
Approx. 810 g / 28.6 oz |
| Note |
Refer to actual product in the event of product description discrepancy. |
