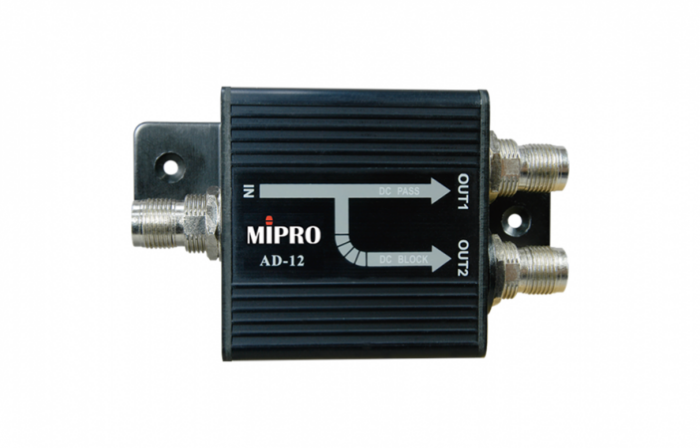

- First introduced in 2005, the AD-12 adapts an isolated grounding design to eliminate power noise from the multi-receiver operation. It can either divide an RF signal into 2 signal outputs or combine 2 signals into 1 signal output. Simultaneously, it links up bias voltage to external boosters. It is an essential device for antenna system installation.
| Model | AD-12 |
|---|---|
| Name | UHF Passive Antenna Divider / Combiner |
| Frequency Range | UHF 470 ~ 1000 MHz |
| Gain | Attenuation 3.5 dB (typ.) |
| Max. RF Input Power | 30 dBm (1 W) |
| Intermodulation Distortion | N/A |
| Input Connectors | TNC female × 1 |
| Output Connectors | TNC female × 2 |
| System Impedance | 50 Ω |
| Dimensions | 55 × 90 × 25 mm (W×H×D) |
| Weight | Approx. 110 g |
| Note | Refer to the actual product in the event of product description discrepancy. |
