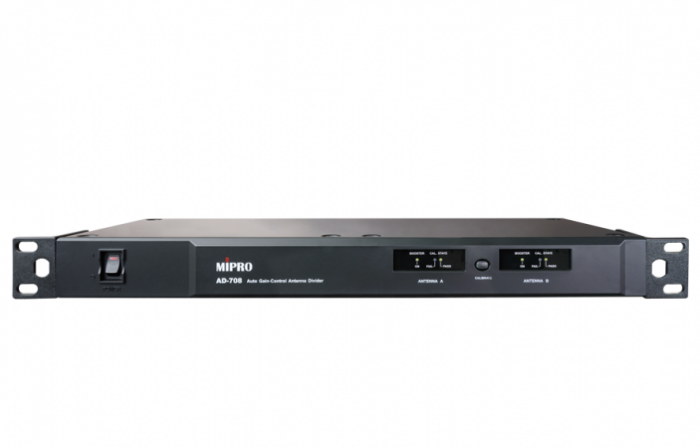

- Optimized in the 470 ~ 850 MHz frequency range and complies with FCC and EU telecom regulations. Output gain is about 1 dB. The antenna connector supplies bias for boosters. Designed with high dynamic, low noise components and an ultra-wideband circuit, it features ultra-low intermodulation and insertion loss and can eliminate the multi-channel spurious interference. Bright LED indicators on the panel are designed for correctly identifying if the antenna cable is connected and the status of booster compensation.
- Pairing with an MPB-30 gain-controllable antenna booster, the AD-708 can detect the cable loss, automatically adjust the booster to precisely compensate for the loss, and eliminate the intermodulation distortion.
| Model | AD-708 |
|---|---|
| Name | Wideband 4-channel with Auto Gain Controller Antenna Divider |
| Frequency Range | UHF 470 ~ 850 MHz |
| Signal Loss Detection | Detects the cable loss for automatic gain adjustment of antenna booster. |
| Input / Output Gain | 1 dB ± 1 dB |

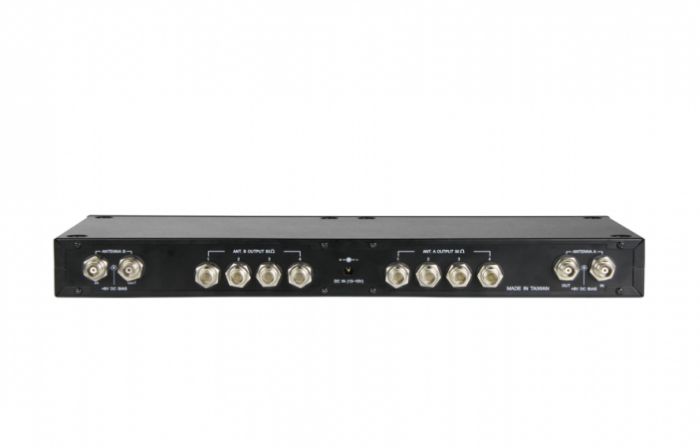

| Input / Output Connectors | 2 sets of 1-to-4 active divider outputs; 2 sets of 1-to-1 active outputs. TNC female. 50 Ω Impedance. |
| Antenna Input Bias | 8.3 V DC, 230 mA |
| Power Supply | 12 ~ 15 V DC |
| Dimensions | 420 × 44 × 164 mm (W×H×D) |
| Weight | Approx. 1.5 kg |
| Note | Refer to the actual product in the event of product description discrepancy. |
