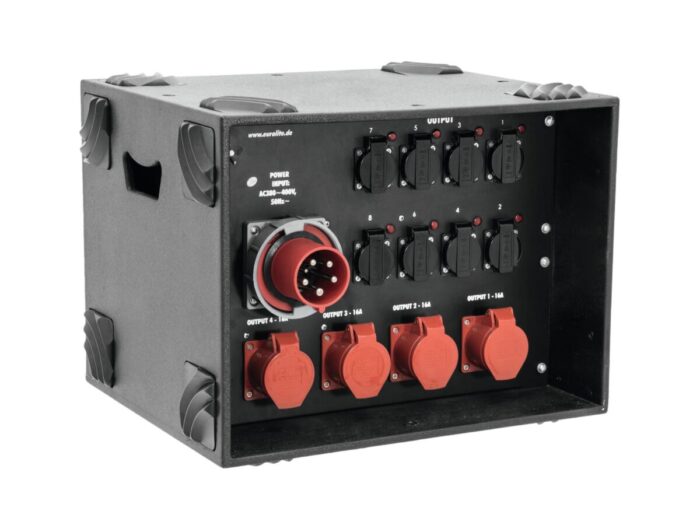

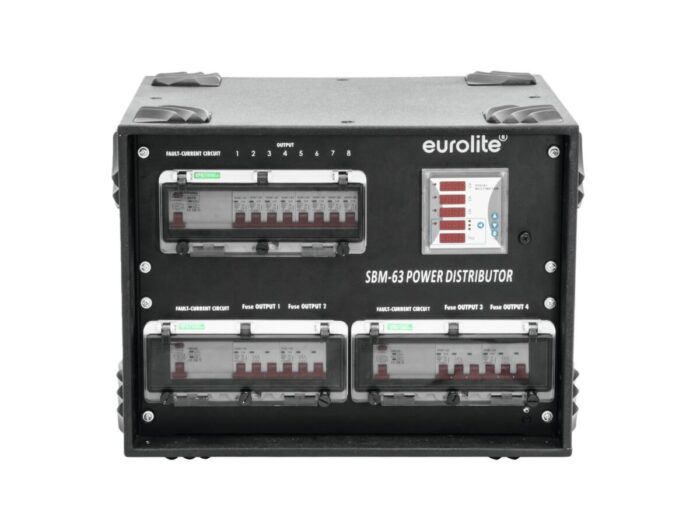

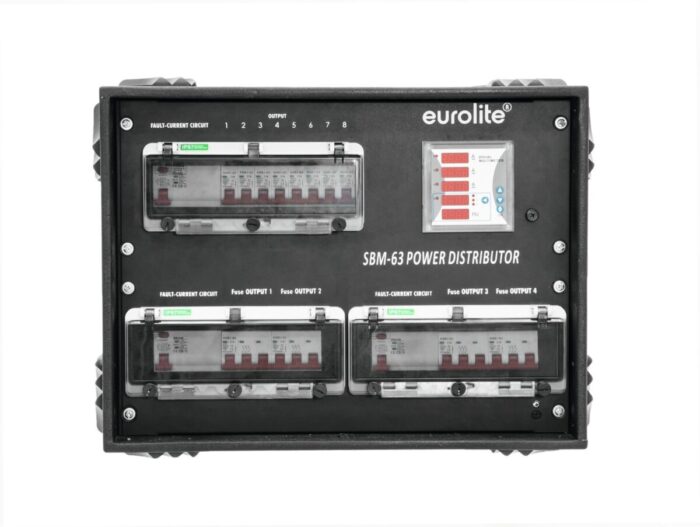

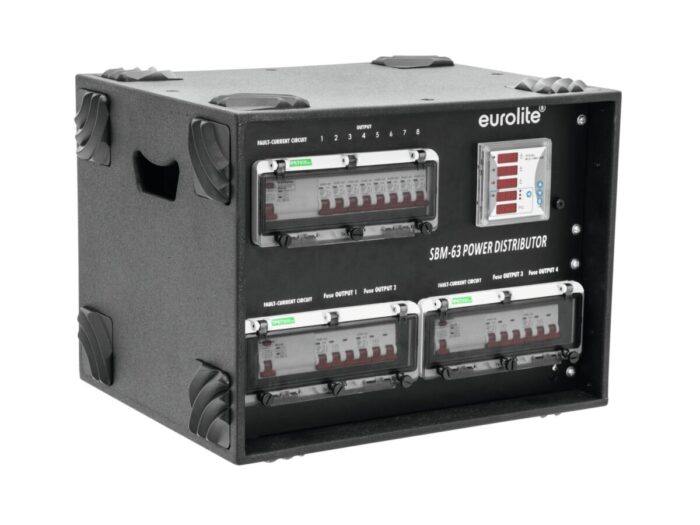

63 A power distributor with multimeter
- Input: 1 x 63 A CEE

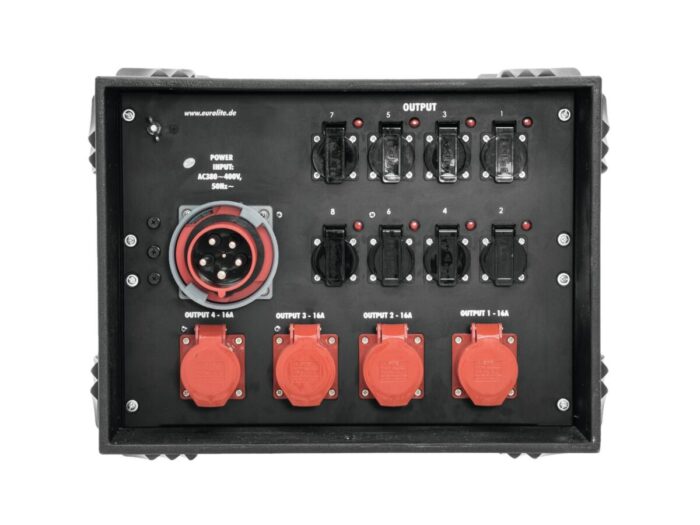

- Outputs: 8 x safety sockets, 4 x 5-pin CEE 16 A
- 3 x FI circuit breaker 63 A, 0.03 A for safety sockets and CEE sockets
- 8 x circuit breaker C16 A 1 Ph, 4 x circuit breaker C16 A 3 Ph
- 3-phase measuring of voltages from 100-380 V/AC
- Current and frequency display
- Rugged, stackable enclosure
| Power supply: | 230/380 V AC, 50 Hz |
| Power connection: | Mains input CEE 63A 5-pol (m) recessed mounting |
| Power output: | 8 x Safety contact (F), hinged lid mounting version fused 4 x CEE 16A 5-pol (f) recessed mounting fused |
| Protection: | 8 x circuit breaker C 16A 1-pol 4 x circuit breaker C 16A 3-pol 3 x fault-current circuit breaker (FI) 63A/0,03A 4-pol |
| Display: | Volts , amps , frequency |
| Dimensions: | Width: 53,5 cm Depth: 42 cm Height: 40,5 cm |
| Weight: | 20,00 kg |
