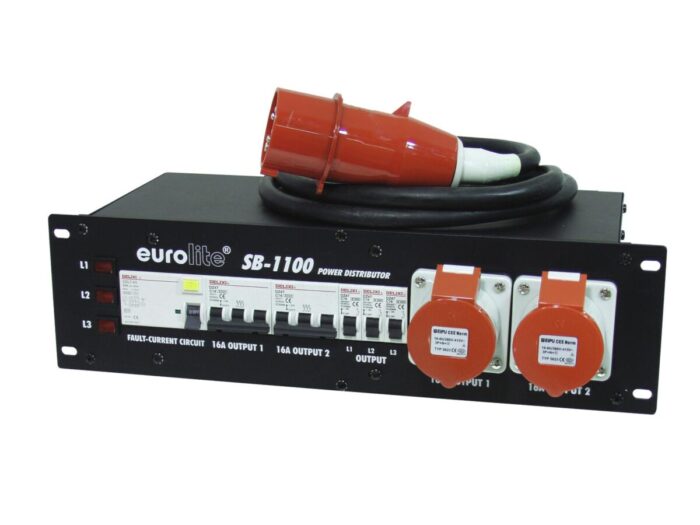

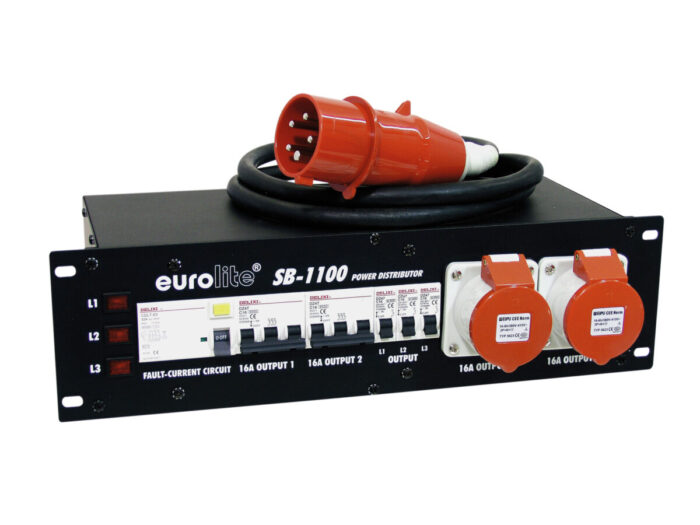

Practical 32 A distributor in 483 mm housing (19″)
- Specially designed for larger distribution needs
- 3 U necessary for installation
- 32 A three phase current input via power cable and plug
- 32 A three phase current output via mounted plug secured on the rearpanel by a Residual Current Device (RCD)
- The entire distributor is secured via 30 mA Residual Current Device (RCD)

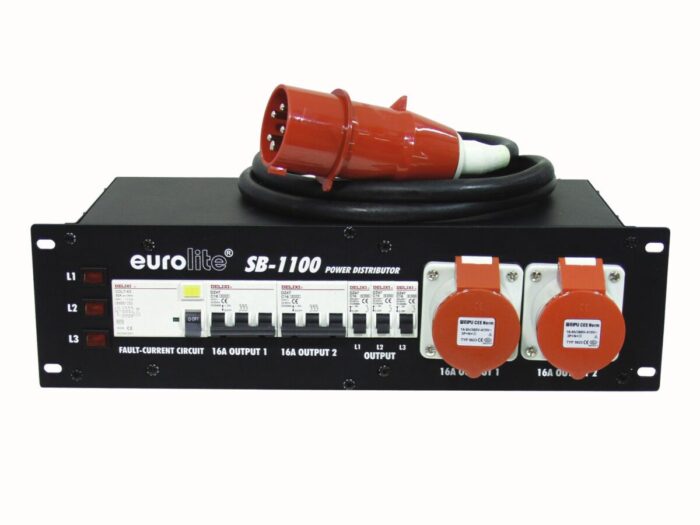

- 2 mounted CEE sockets with 16 A on the front panel, secured via 3 x 16 A fuse blocks
- Control lamps indicate each phase

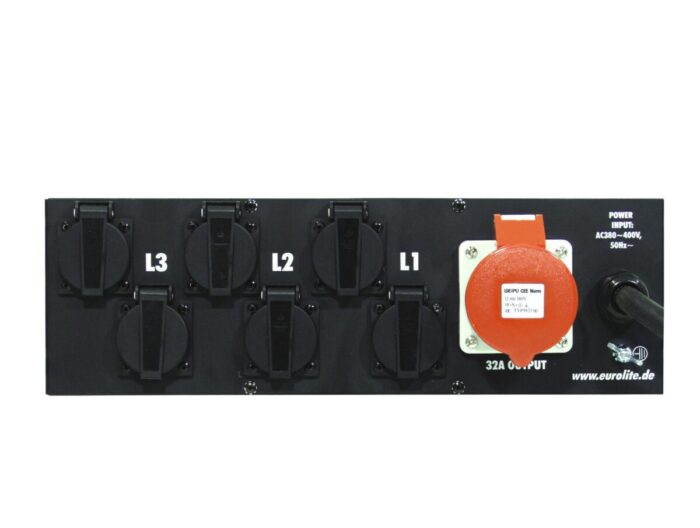

- 6 safety sockets on the housing back (2 per phase)
- Each pair of safety sockets feature fuse protection via 16 A automatic circuit breakers
- With M6 earthing screw in order to ground a rigg if necessary
- (19″) 48.3 cm rack installation 3 U
| Power supply: | 380-400V AC, 50Hz |
| Power connection: | Fixed CEE 32A 5-pin (M) |
| Power output: | 1 x CEE 32A 5-pol (f) recessed mounting Bypass 6 x Safety contact (F), hinged lid mounting version fused 2 x CEE 16A 5-pol (f) recessed mounting fused |
| Protection: | 1 x fault-current circuit breaker (FI) 40A/0,03A 4-pol 2 x circuit breaker C 16A 3-pol 3 x circuit breaker C 16A 1-pol |
| Housing design: | (19″) 48.3 cm rack installation 3 U |
| Dimensions: | Width: 48,3 cm Depth: 29,5 cm Height: 13,35 cm |
| Weight: | 6,05 kg |
