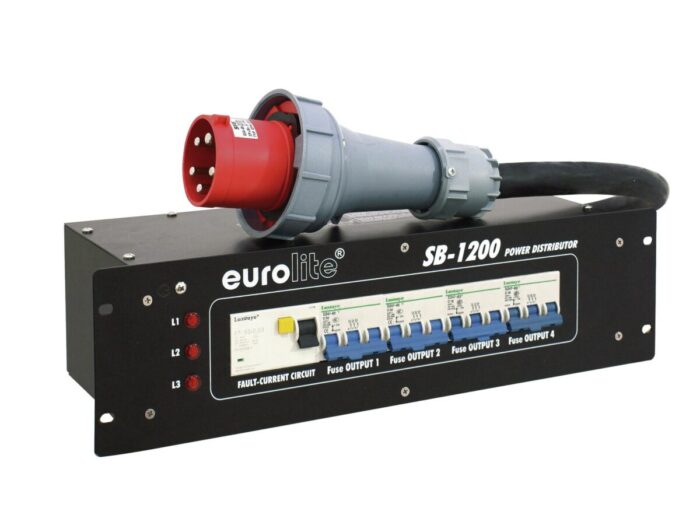

Practical 63 A distributor in 483 mm housing (19″)
- Specially designed for larger distribution needs
- 3 U necessary for installation
- 63 A three-phase current input via 1 meter long 5 x 16 mm² power cable and plug
- The entire distributor is secured via 30 mA Residual Current Device (RCD)

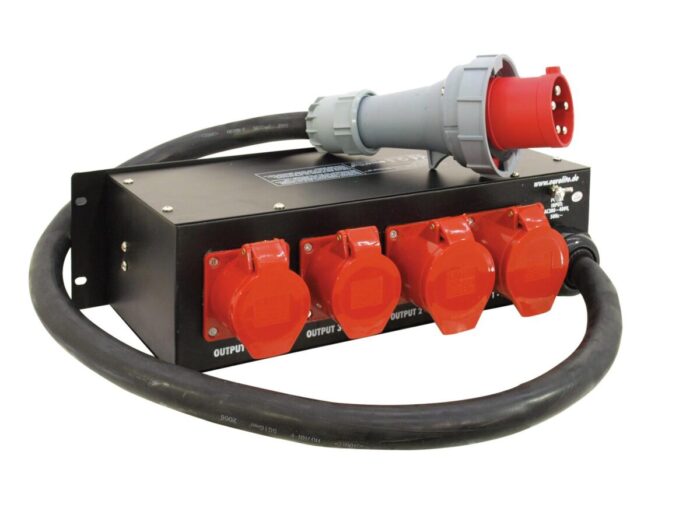

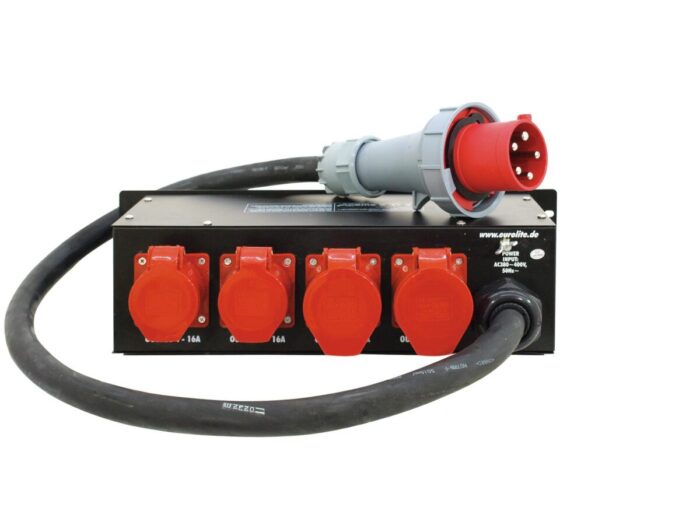

- 2 x 32 A three-phase current outputs via mounted sockets, each individually secured on the rearpanel by a 3-pole 32 A circuit breaker
- 2 x 16 A three-phase current outputs via mounted sockets, each individually secured on the rearpanel by a 3-pole 16 A circuit breaker
- Control lamps indicate each phase
- With earthing screw in order to ground a rigg if necessary
- (19″) 48.3 cm rack installation 3 U
| Power supply: | 380-400V AC, 50Hz |
| Power connection: | Fixed CEE 63A 5-pin (M) |
| Power output: | 2 x CEE 32A 5-pol (f) recessed mounting fused 2 x CEE 16A 5-pol (f) recessed mounting fused |
| Protection: | 1 x fault-current circuit breaker (FI) 63A/0,03A 4-pol 2 x circuit breaker C 16A 3-pol 2 x circuit breaker C 32A 3-pol |
| Housing design: | (19″) 48.3 cm rack installation 3 U |
| Dimensions: | Width: 48,3 cm Depth: 31 cm Height: 13,35 cm |
| Weight: | 8,00 kg |
