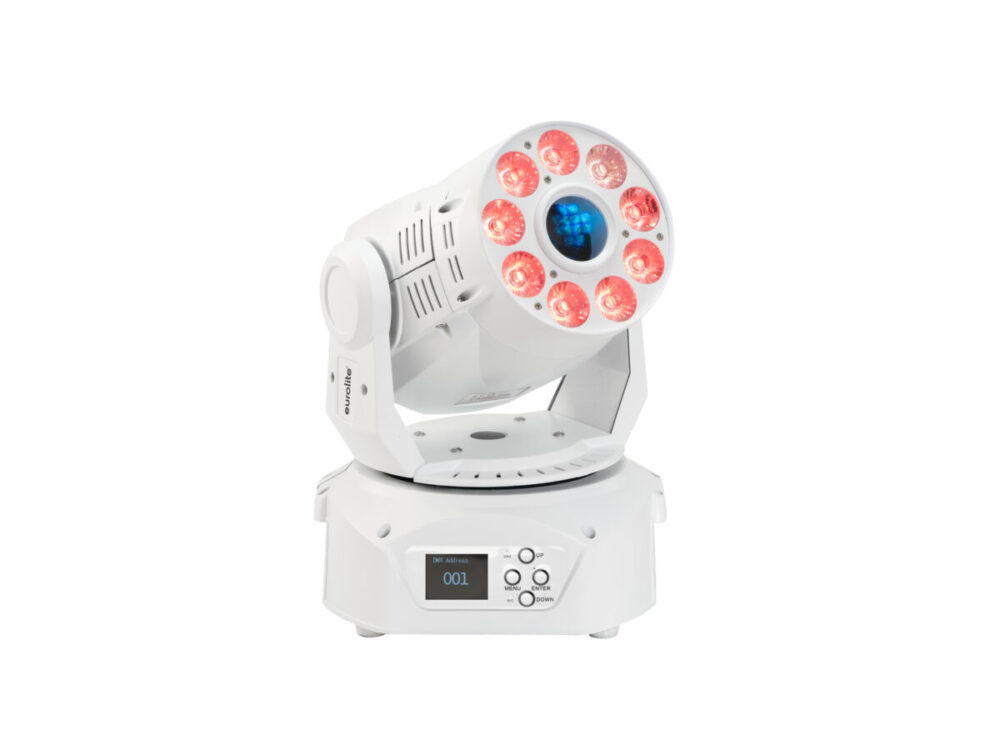

Bright spotlight and full-fledged washlight with 75 W LED
- Equipped with a white 75 W COB LED and nine 8 W 6in1LEDs in the colors red, green, blue, amber, white and UV
- Compact lightweight
- 7 brilliant, dichroic colors plus white
- Rainbow effect with adjustable speed in both directions
- Gobo-wheel with 6 rotating gobos plus open
- 3-facet prism (rotating)
- Preprogrammed scenes in Program Run for stand-alone operation
- Electronic dimmer
- Motorized focus
- Programmable color-change speed and strobe effect
- Stepless RGBAW+UV color mixture
- Color macros can be called up via DMX controller
- Exact positioning via 16 bit PAN/TILT movement resolution
- PAN angle switchable between 540°, 360° and 180°
- TILT angle switchable between 270°, 180° and 90°
- DMX-controlled operation or stand-alone operation with Master/Slave function
- Control board with LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT Reverse, Program, Reset
- Switch-mode power supply for operation between 100 and 240 Volts
- LED: 9 x 8 W 6in1 HCL RGBWA/UV (homogenous color mix)
- LED: 1 x COB (chip-on-board) 75 W color wheel (homogenous color mix)
- Color wheel 7 dichroic filters plus open
- Gobo wheel with rotating gobos, 6 gobos and open
- Can be operated in 21 CH mode
- The device is cooled by cooling fan
- Controlling by Stand-alone Sound to light via Microphone DMX
- Is in EASY SHOW already preprogrammed
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 110 W |
| IP classification: | IP20 |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Lamp type: | LED lamp |
| LED: | 9 x 8 W 6in1 HCL RGBWA/UV (homogenous color mix) 1 x COB (chip-on-board) 75 W color wheel (homogenous color mix) |
| Max. TILT movement: | Exact positioning (16 bit resolution) Positioning switchable to 180° and 90° Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Positioning switchable to 360° and 180° Auto position correction (feedback) |
| Equipment: | Gobo wheel with rotating gobos Prism 3-fold Focus motor-driven |
| Color generation: | Color wheel 7 dichroic filters plus open |
| Gobos: | Gobo wheel with rotating gobos, 6 gobos and open |
| DMX channels: | 21 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone Sound to light via Microphone DMX EASY SHOW |
| Beam angle: | 12° |
| Beam angle (1/2 peak): | Spot 12° Wash effect 28° |
| Illuminance in Lux (lx): | Wash effect R red 3m: 24 lx, 6m: 7 lx Wash effect G green 3m: 133 lx, 6m: 36 lx Wash effect B blue 3m: 20 lx, 6m: 6 lx Wash effect CW 3m: 92 lx, 6m: 26 lx Wash effect A amber 3m: 31 lx, 6m: 9 lx Wash effect UV 3m: 1 lx, 6m: 1 lx Wash effect all 3m: 288 lx, 6m: 78 lx Spot CW 3m: 3942 lx, 6m: 1008 lx |
| Housing color: | White |
| Display type: | LCD display |
| Dimensions: | Width: 25,5 cm Depth: 25 cm Height: 31 cm |
| Weight: | 8,20 kg |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| intended use: | show effect lighting |
