This compact strobe light in a slim-line design is equipped with a total of 98 flicker-free SMD 5030 LEDs and offers you both strobe and blinder effects. The flash frequency is 1-20 flashes per second. The strobe can be operated in stand-alone mode, with a DMX controller or by sound control via the built-in microphone. Delivery includes an IR remote control for convenient operation from a distance. In DMX mode, the 5 ring-shaped LED segments can be controlled individually or in groups. You can choose from two DMX modes with 4 or 9 channels respectively. The fixture has 3-pin DMX connectors as well as an IEC input to connect it to the mains and a feed-through output for daisy-chaining up to 8 units.
Compact strobe with 98 SMD LEDs & DMX, each ring individually controlable
- Operable in stand-alone mode or via DMX
- Each LED ring (or ring combination) can be controlled individually via DMX
- Master/Slave function for synchronous operation with several devices
- Equipped with 98 SMD 5030 LEDs
- Flat housing form requires minimal space when rigging
- Second mounting bracket for safe standing installation
- Comfortable addressing and setting via control panel with LED display and four operating buttons

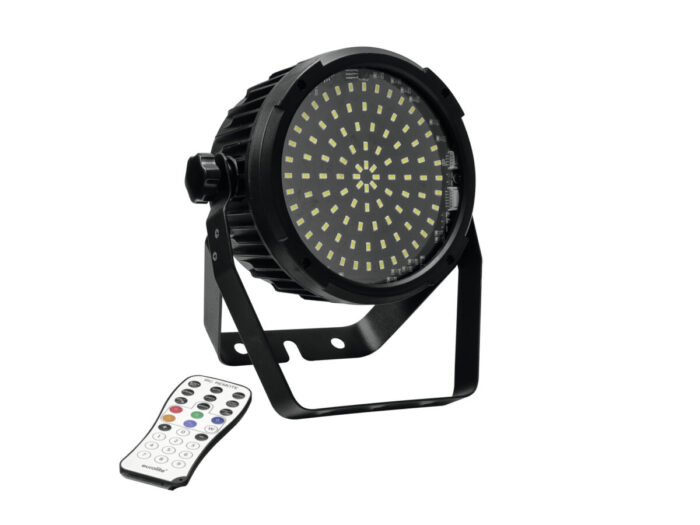

- Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery
- Functions: internal programs, Blinder effect, dimmer, adjustable flash-rate (1-20 flashes/sec), Master/Slave
- Adjustable internal program speed
- IEC terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 98 x SMD CW (homogenous color mix)
- Can be operated in 4 9 CH mode
- The device is cooled by cooling fan
- Controlling by Stand-alone DMX Sound to light via Microphone
- Is in Light J Software EUROLITE LED PC-Control 512 software already preprogrammed
- Flicker-free projection
- Effect: Strobe effect
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 24 W |
Protection class: | Class II |
Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
Power output: | 1 x IEC connector (F) mounting version |
Lamp type: | LED |
LED: | 98 x SMD CW (homogenous color mix) |
Flash rate: | 0 – 20 Hz |
DMX channels: | 4 9 |
DMX input: | 1 x 3-pin XLR (M) mounting version |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Cooling: | Cooling fan |
Control: | Stand-alone DMX Sound to light via Microphone Light J Software EUROLITE LED PC-Control 512 software |
Dimensions: | Width: 21,5 cm Depth: 12 cm Height: 24,5 cm |
Weight: | 1,20 kg |
Remote control | |
Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
Legal specifications | |
Special product: | Not designed for household room illumination |
intended use: | show effect lighting |
