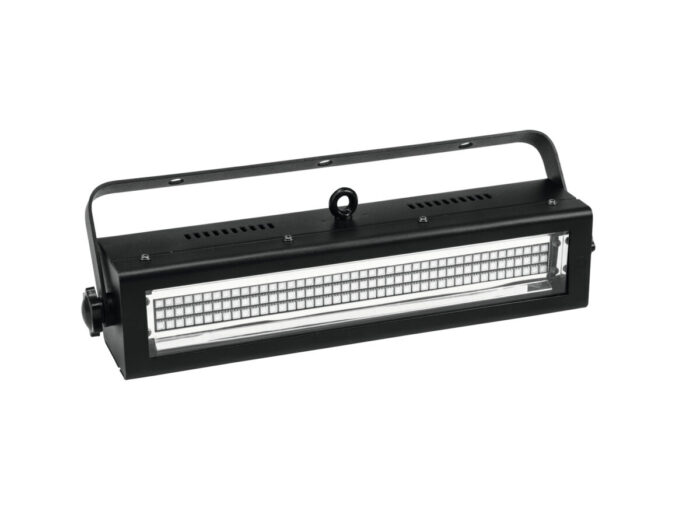

The LED Strobe SMD PRO 132 DMX RGB combines three functions in one fixture: It is equipped with 132 bright RGB SMD LEDs for both dynamic strobe effects and slower blinder effects. Depending on the selected DMX mode, you can choose from up to 15 preset colors for wash effects. The built-in SMD LEDs are flicker-free and therefore the effect can also be used in a TV studio.The fixture has an auto, music, master/slave and DMX mode and incorporates 3-pin DMX connectors as well as an IEC input to connect it to the mains. The flash frequency and duration is variably adjustable. For a structured and versatile use, you can choose from 7 different DMX modes with 1, 2×2, 3×3, 4, or 6 DMX channels respectively.
Multifunctional strobe/flood/blinder with 132 bright SMD RGB LEDs
- 3 effects in one device: strobe, blinder and wash light
- 132 SMD RGB LEDs, 0.2 W each
- Built-in auto and music show program
- Direct color selection for 15 preset colors
- Brightness, flash-rate (1-30 flashes/sec) and flash duration adjustable
- Special effects
- Random strobe effect
- Stepless RGB color mixing and color change
- Dimmer
- Addressing and setting via control panel with 4-digit LED display
- Swivel mounting bracket
- Ready for connection via power cord with safety plug
- LED: 132 x SMD 5050 0,2 W 3in1 TCL RGB (homogenous color mix)
- Can be operated in 1 2 2 3 3 3 4 6 CH mode
- The device is cooled by passive convection
- Controlling by Stand-alone DMX Sound to light via Microphone Master/slave function
- Is in Light J Software EUROLITE LED PC-Control 512 software already preprogrammed
- Flicker-free projection
- Effect: Strobe effect
- For application areas such as: Party room
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 30 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Lamp type: | LED |
| LED: | 132 x SMD 5050 0,2 W 3in1 TCL RGB (homogenous color mix) |
| Flash rate: | 0 – 30 Hz |
| DMX channels: | 1 2 2 3 3 3 4 6 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection |
| Control: | Stand-alone DMX Sound to light via Microphone Master/slave function Light J Software EUROLITE LED PC-Control 512 software |
| Beam angle: | 70° |
| Beam angle (1/2 peak): | 70° |
| Dimensions: | Width: 35 cm Depth: 7 cm Height: 7,1 cm |
| Weight: | 1,70 kg |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| intended use: | show effect lighting |
