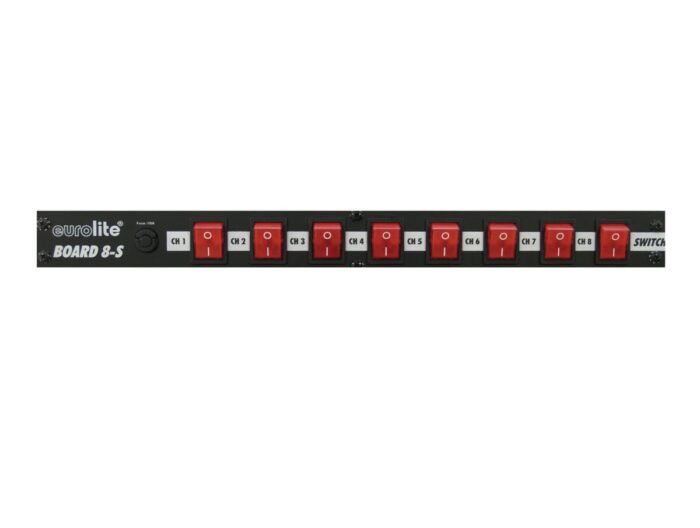

8-fold switching panel for separate switching of 8 IEC outputs
- Fully cabled housing with 8 IEC outputs
- 8 illuminated switches
- 10 A breaker on the front panel
- Controlling by On/off switch on device
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 2300 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Output power: | Max. 2300 W per channal |
| Output current: | Max. 10 A per channal |
| Power connection: | Fixed Power supply cord with safety plug |
| Power output: | 8 x IEC connector (F) mounting version fused |
| Control: | On/off switch on device |
| Control channels: | 8 |
| Color: | Black |
| Dimensions: | Width: 48,3 cm Depth: 24 cm Height: 4,45 cm |
| Weight: | 1,30 kg |
