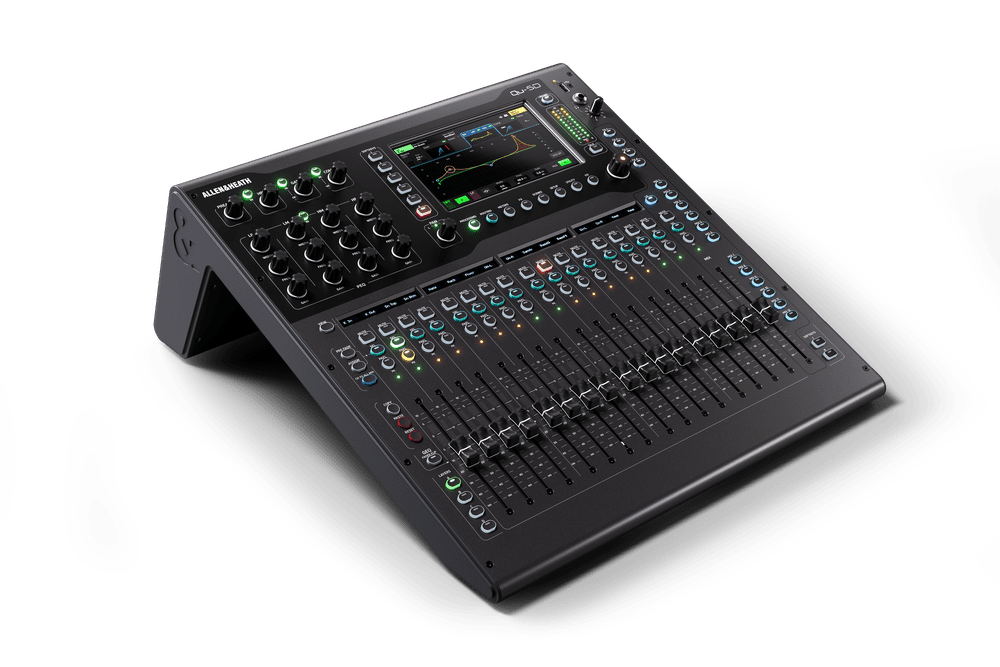

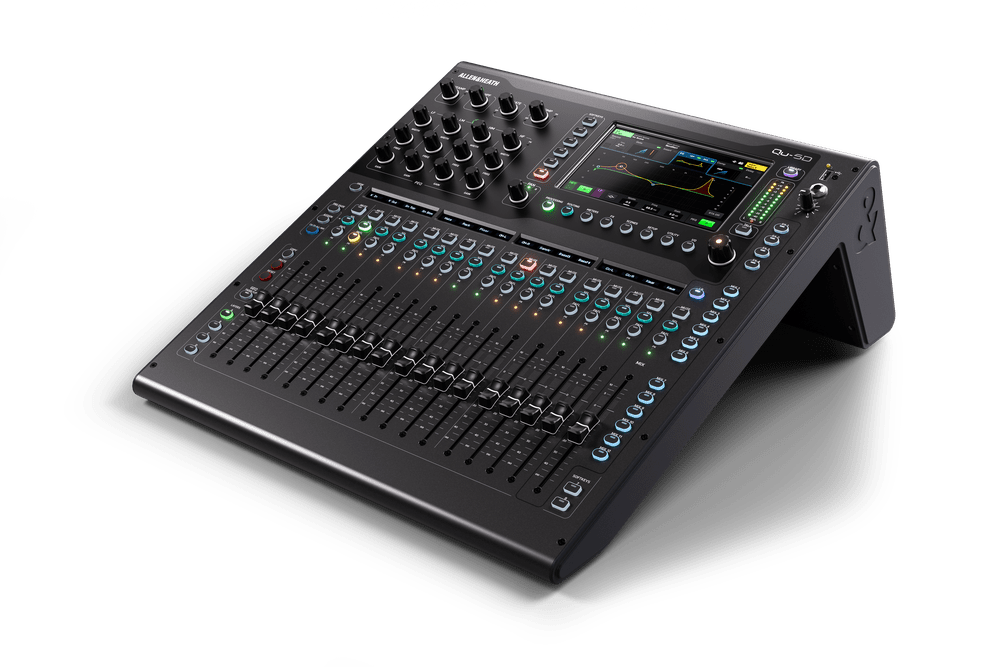

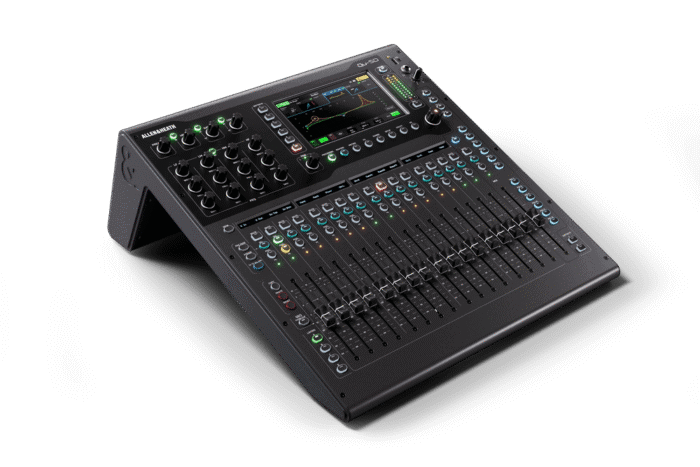

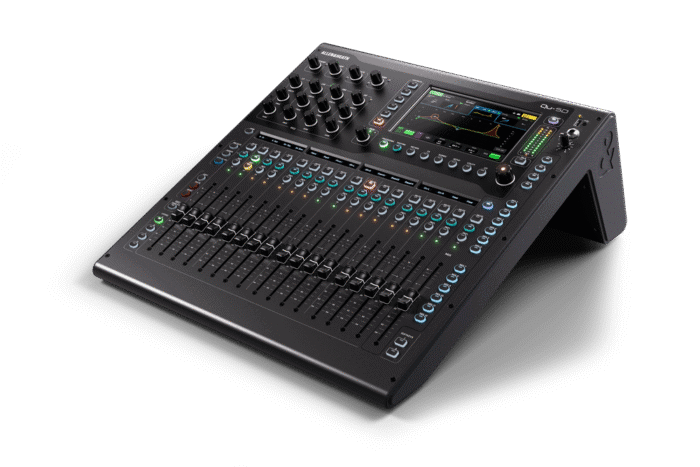

    Allen & Heath Qu-5D – 32-Channel Digital Mixer with Dante

    Compact. Professional. Powerful.
    The Allen & Heath Qu-5D is a cutting-edge 96kHz digital mixer built for professional live sound, broadcast, studio, and AV applications. Engineered with XCVI FPGA processing and integrated Dante networking, this 19″ rack-mountable powerhouse delivers premium audio performance in a compact form.

    🔧 Key Features

    • 96kHz XCVI Core Processing
      Harness ultra-low latency and precision mixing with advanced FPGA technology – under 0.7ms latency throughout the system.

    • 38 Inputs to Mix
      Includes 32 mono channels (linkable) and 3 stereo inputs, offering maximum flexibility for routing and configuration.

    • 16 Recallable Mic Preamps
      Premium-quality preamps with digital control ensure consistent gain structure and complete recall capability.

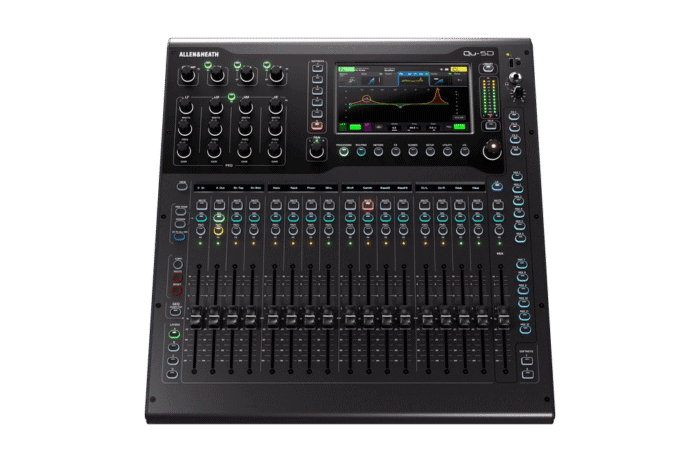

    • 17 Motorized Faders
      Smooth, professional-grade 100mm faders across 4 layers for efficient mix navigation and control.

    • 7” Capacitive Touchscreen
      Intuitive and responsive interface for real-time visualization and quick access to all parameters.

    • Integrated Dante Interface
      Native 16×16 Dante connectivity at both 48kHz and 96kHz sample rates, perfect for seamless audio-over-IP setups.

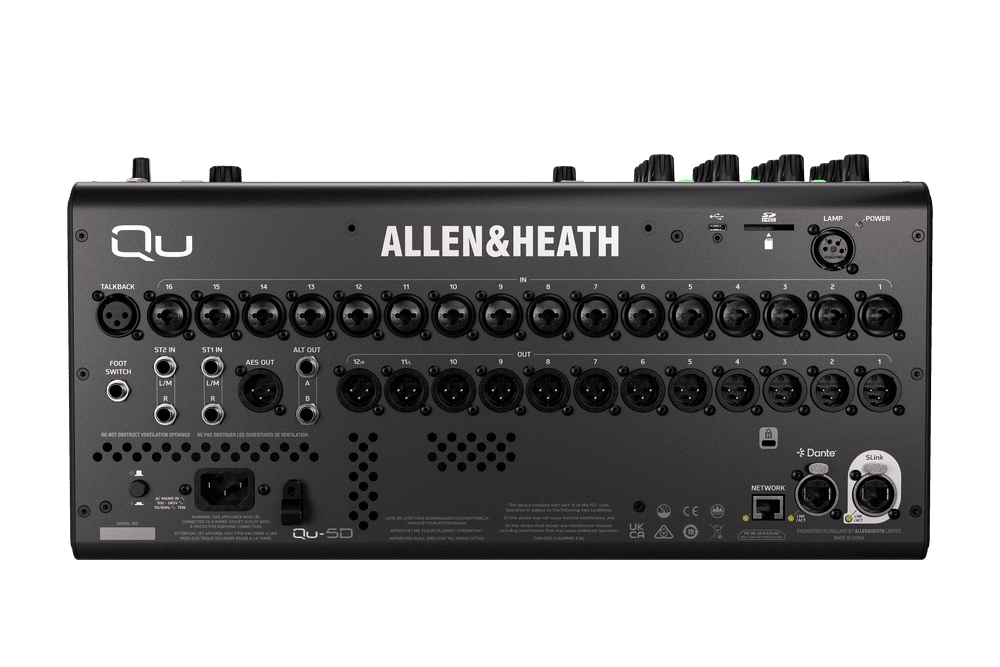

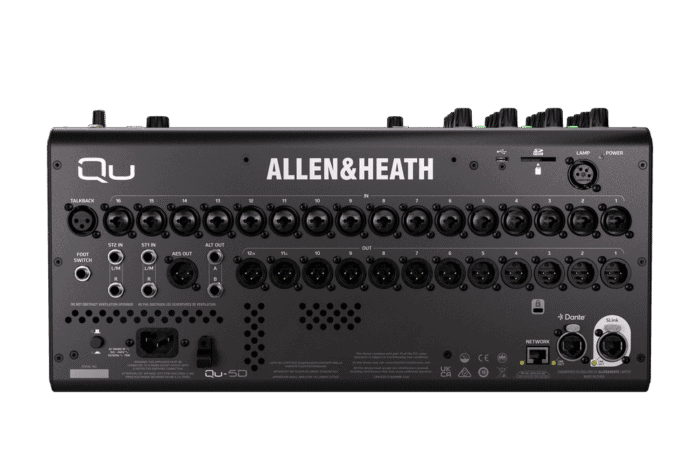

    • Versatile I/O Configuration

      • 16 XLR/TRS combo mic/line inputs

      • 2 stereo line inputs (TRS)

      • 12 XLR mix outputs

      • 2 TRS mix outputs

      • AES digital out + talkback mic input

    • Flexible Mix Architecture

      • 12 Mix outputs: 6 mono (linkable aux/groups) and 6 stereo

      • 4 Matrix outputs (mono/stereo linkable)

      • Stereo Main LR

    • 6 Built-in FX Engines
      Studio-quality effects with dedicated stereo returns and deep parameter control.

    • Multitrack Recording & Playback

      • 32×32 USB-C audio interface

      • SD card multitrack recording (16×16 @96kHz or 32×32 @48kHz)

      • USB-A stereo recording/playback

    • Remote Control Ready
      Full compatibility with control apps for Windows, macOS, iOS, and Android.

    • SLink Port for Expansion
      Intelligent 128×128 SLink port supports remote stageboxes and other Allen & Heath I/O hardware.

    📐 Technical Specifications

    • Dimensions: 440mm (W) x 476mm (D) x 211mm (H)

    • Weight: 10 kg

    • Power: Universal PSU (IEC connector)

    • Mounting: 19” rackmount format (optional rack kit available)

    The Qu-5D offers professional mixing power in a streamlined footprint — ideal for touring engineers, houses of worship, corporate AV, and installed sound applications. With flexible I/O, rock-solid build quality, and future-proof networking, the Qu-5D is ready to meet any challenge.
