Next-Generation Mixing Power in a Compact Format
The Allen & Heath Qu-5 redefines compact digital mixing by integrating the robust features of the renowned Qu series with cutting-edge advancements. Powered by a 96kHz XCVI core, the Qu-5 delivers pristine audio quality, enhanced processing capabilities, and an intuitive workflow—ideal for live sound engineers, recording professionals, and houses of worship.
Key Features
- 38 Inputs to Mix: Includes 32 mono channels (linkable for stereo operation) and 3 stereo channels for maximum flexibility.
- 12 Mix Buses: 6 mono/linkable aux/group mixes and 6 stereo aux/group mixes for versatile routing and monitoring.
- 4 Matrix Outputs: Perfect for sub-mixes or additional zone outputs.
- 6 FX Engines: Studio-grade effects with dedicated stereo returns for rich sound processing.
- DEEP Processing Ready: Access to acclaimed dLive compressor and preamp emulations.
- 7″ Capacitive Touchscreen: Intuitive interface with fast navigation and responsive control.
- 17 Motorized Faders: Precise level control and smooth transitions with customizable layers.
- Flexible I/O: 16 XLR mic/line combo inputs, 2 stereo line inputs, 12 XLR outputs, 2 TRS outputs, and 1 AES3 digital output.
- Multitrack Recording: USB-C 32×32 audio interface and SD card slot for standalone recording up to 96kHz.
- SLink Port: Integrates with Everything I/O ecosystem, supporting up to 128×128 channels of 96kHz audio.
- Remote Control Apps: Compatible with Qu-MixPad and Qu-You apps for wireless mixing and personal monitor control.
Technical Specifications

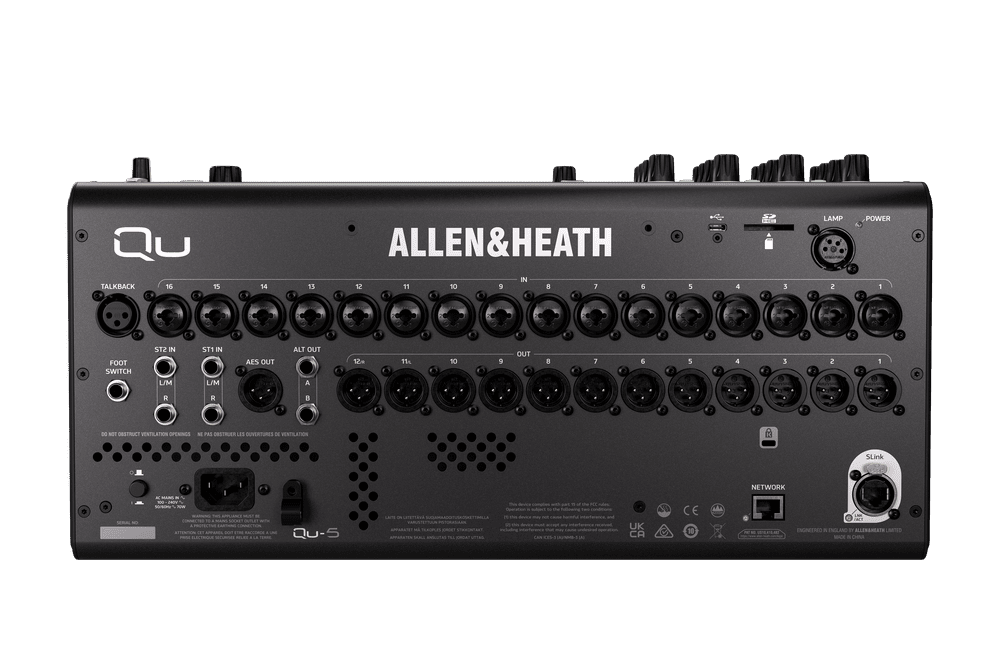

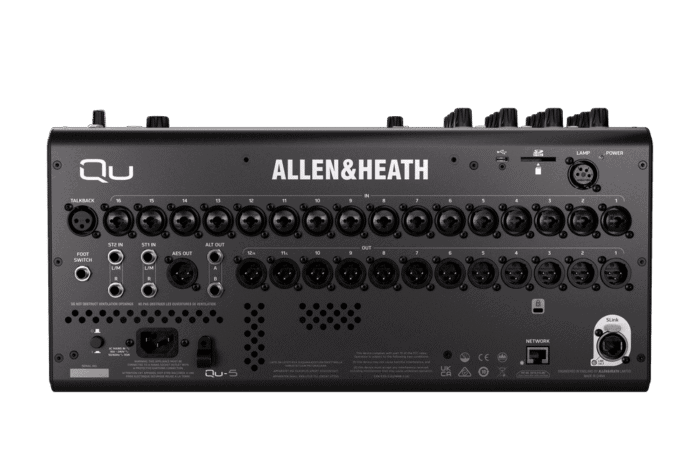

Inputs:
- 16 x XLR mic/line combo inputs
- 2 x Stereo line inputs (1/4″ TRS)
- 1 x XLR talkback input
Outputs:
- 12 x XLR mix outputs
- 2 x 1/4″ TRS outputs
- 1 x AES3 stereo digital output
Processing:
- 96kHz XCVI Core
- Variable bit-depth up to 96-bit
- <0.7ms system latency
Recording:
- USB-A for stereo record/playback
- USB-C 32×32 audio interface
- SD card slot for multitrack record/playback

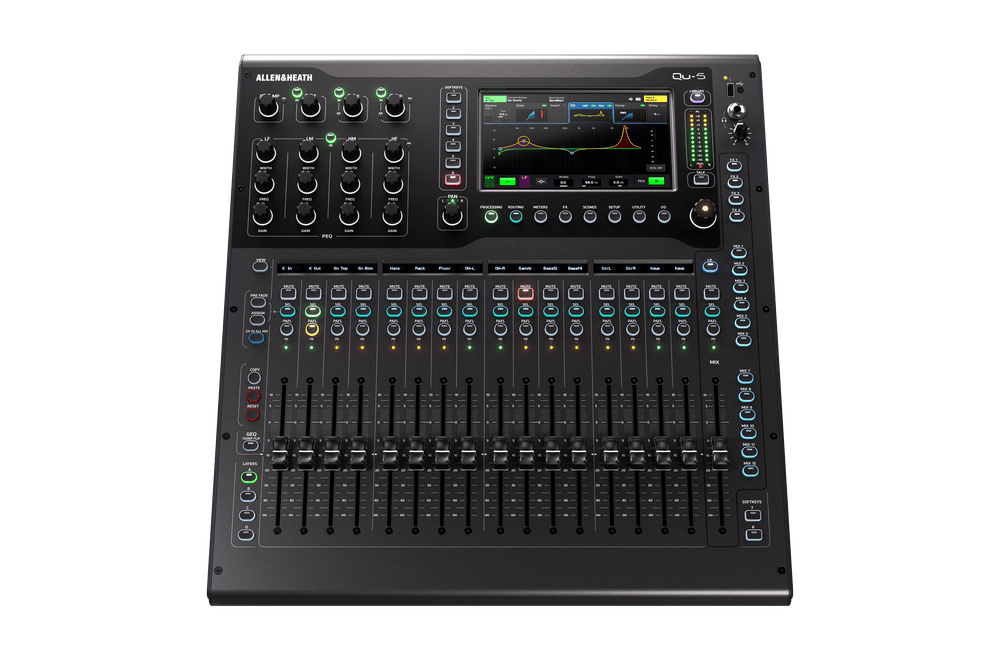

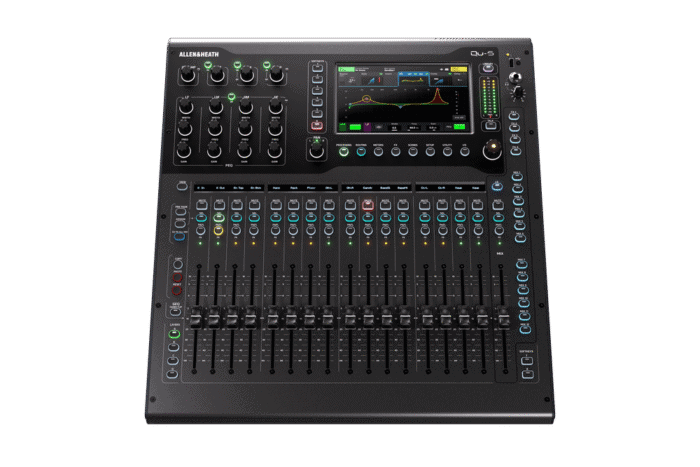

Control:
- 7″ capacitive touchscreen
- 17 x 100mm motorized faders
- 4 fader layers
- 8 SoftKeys
- Configurable footswitch input
Dimensions: 440 x 476 x 211 mm
Weight: 10 kg
Ideal Applications
- Live sound
- Broadcast and studio recording
- Houses of worship
- Corporate events and presentations
- Theater and performing arts
The Allen & Heath Qu-5 is a future-ready digital mixer, combining power, versatility, and portability into one compact console. Whether for stage, studio, or installation, it delivers uncompromising audio performance and professional-grade control.
