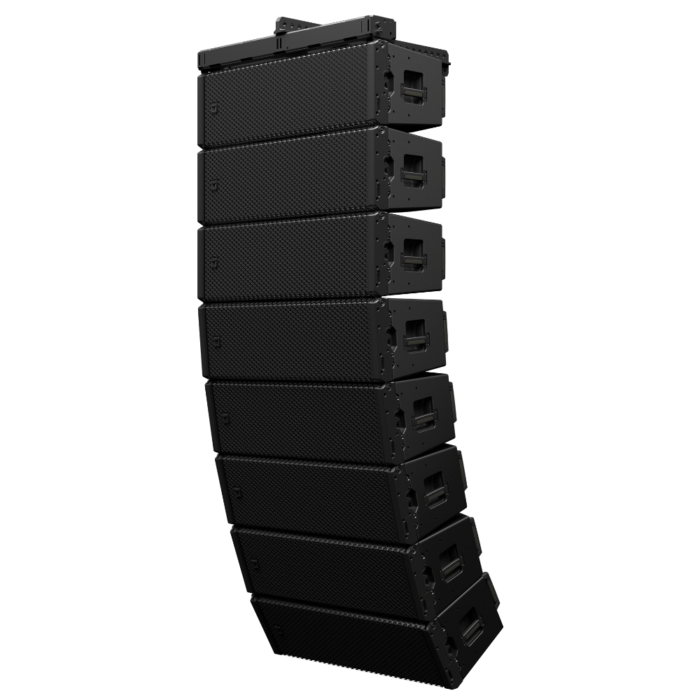

The GTX 12 is a 3-way line array module for large-scale, high-demanding touring and install applications, indoors and outdoors. Equipped with eight best-in-class transducers, it offers excellent playback quality and optimized directivity. Up to 24 GTX 12 modules can be suspended on a single fly-bar.
GTX 12 evolved from TT+ AUDIO’s continued effort to deliver powerful and trustworthy sound reinforcement systems for demanding sound providers. Whether for large concerts, festivals or permanent installations, the GTX 12 system delivers the best possible audio experience, surpassing any product TT+ AUDIO has ever created.
The symmetrical multi-ply enclosure design and component topology produce consistent coverage from left to right. Symmetrical component positioning and special DSP crossover filtering provide constant directivity and perfect continuity of the hemicylindrical wave directivity without lobes and discontinuities. Frequency modulations are avoided by the optimized active crossover design.
All TT+ AUDIO enclosures are finished with a highly durable polyurea coating that provides excellent waterproofing and corrosion protection and withstands abrasion, impacts, and mechanical stress. Its extreme elasticity maintains flexibility even in low temperatures – perfect for enclosures prone to vibrations such as high-power subwoofers. It also exhibits strong chemical resistance and does not emit any VOCs (volatile organic compounds), making it environmentally friendly and safe for human health.
With classic bass reflex ports, the air flow becomes turbulent, and the vortices become audible. All GTX / GTS loudspeakers have vented ports designed to achieve optimized aerodynamic (laminar flow) behavior of the air motion, resulting in increased efficiency, reduced distortion, and improved sound quality.

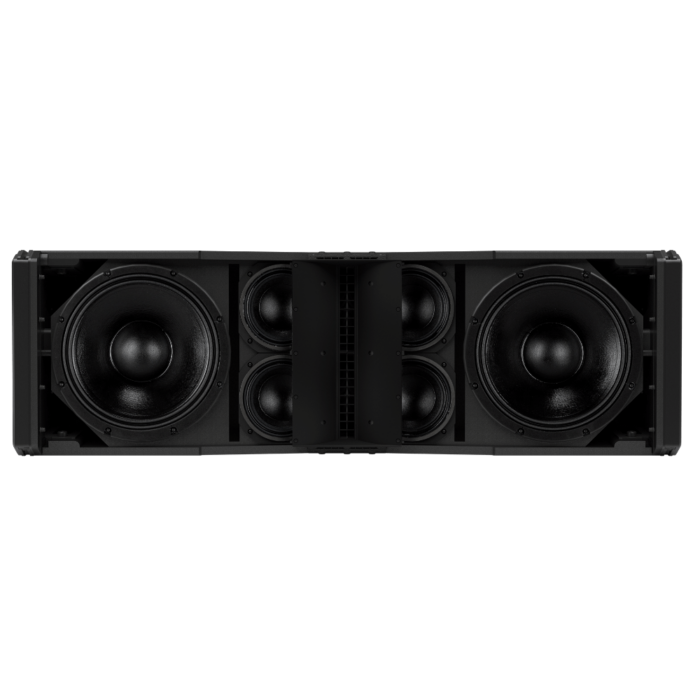

Boasting two 3” rugged titanium dome compression drivers with a high flux density neodymium magnet, a 3-inch voice coil and the exceptional capabilities of the 4PATH waveguide, the HF section effectively capitalizes on its low crossover point, resulting in a phase-coherent coverage of 90° x 10°.
Critical mid-range frequencies rely on the high output design of the four 6-inch neodymium midrange transducers with 2” voice coils in coplanar configuration, with minimal power compression characteristics and low harmonic distortion.
Two 12” HyperVented woofers with 3.5” inside-outside voice coils and high-grade neodymium magnets are the solid foundation of the GTX 12. High-damping cone materials and an extremely fast motor section provide remarkable dynamic range and detailed reproduction.

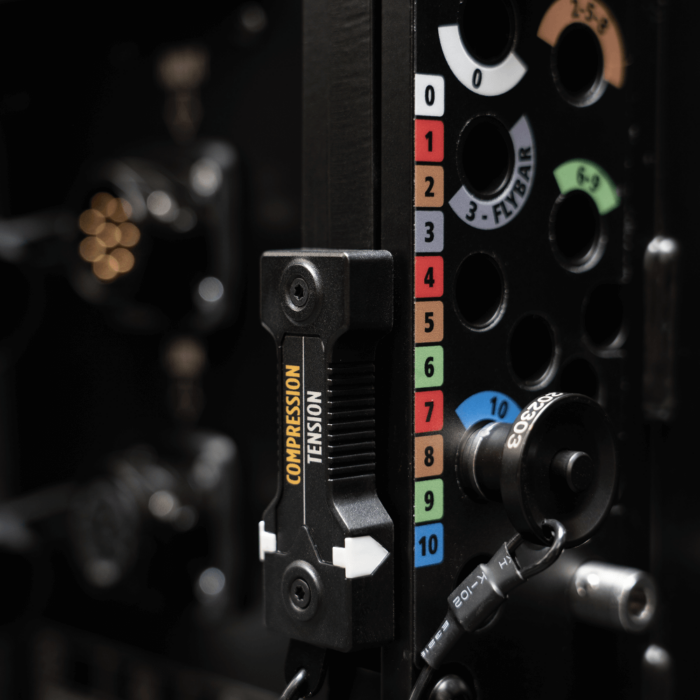

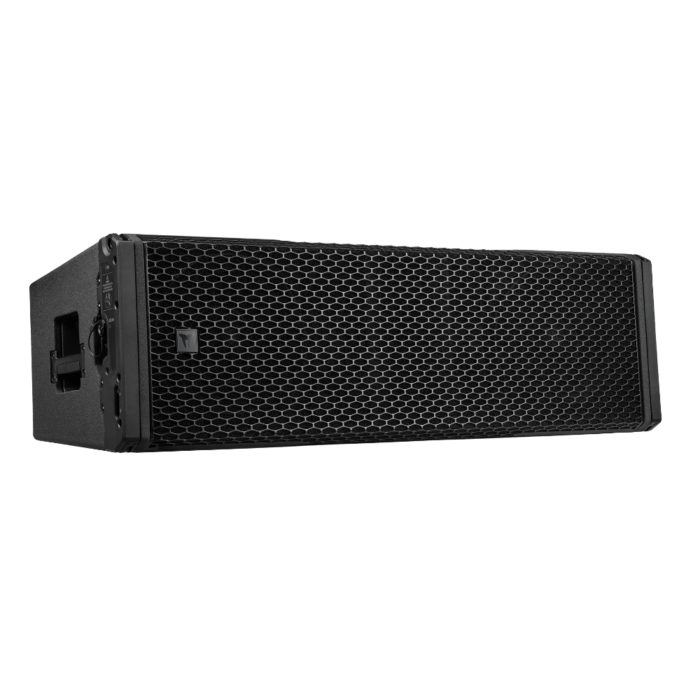

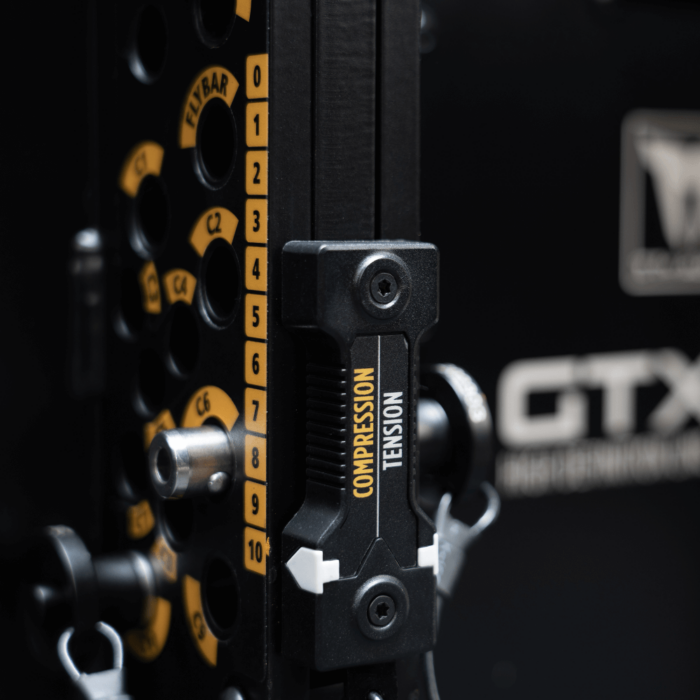

The sturdy weather-resistant birch multi-ply enclosure with durable polyurea coating features optimized hardware for speed and efficiency, providing streamlined suspension with anti-rattle front locks and a unique captive rear hinge bar mechanism that slips into the angle preset position when hoisting (Tension Mode) or pulling back the array (Compression Mode). The optional cart allows for the transport of four GTX 12 enclosures, with custom-designed protective covers for safe handling.
Specifications
Frequency Response (-10dB): 35 Hz ÷ 20000 Hz
Max SPL @ 1m: 148 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 10°
Amplification: Quad-amp
Nominal Impedance LF: 8 ohm
Nominal Impedance LF2: 8 ohm
Nominal Impedance MF: 8 ohm
Nominal Impedance HF: 16 ohm
Compression Driver: 2 x 1.4” neo, 3.0” v.c
Midrange: 4 x 6.5” neo, 2.0” v.c
Woofer: 2 x 12” neo, 3.5” v.c

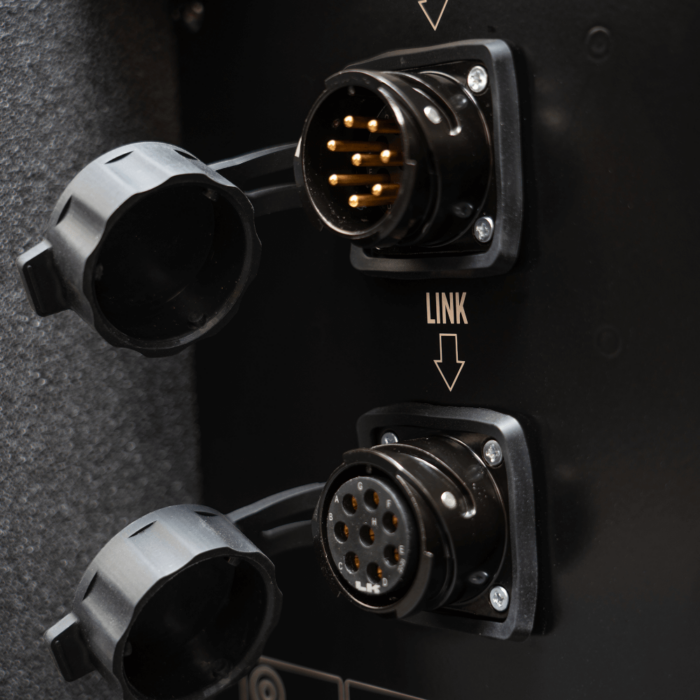

I/O Connectors: P-COM 8POLE
Safety agency: CE compliant
Hardware: Array fittings

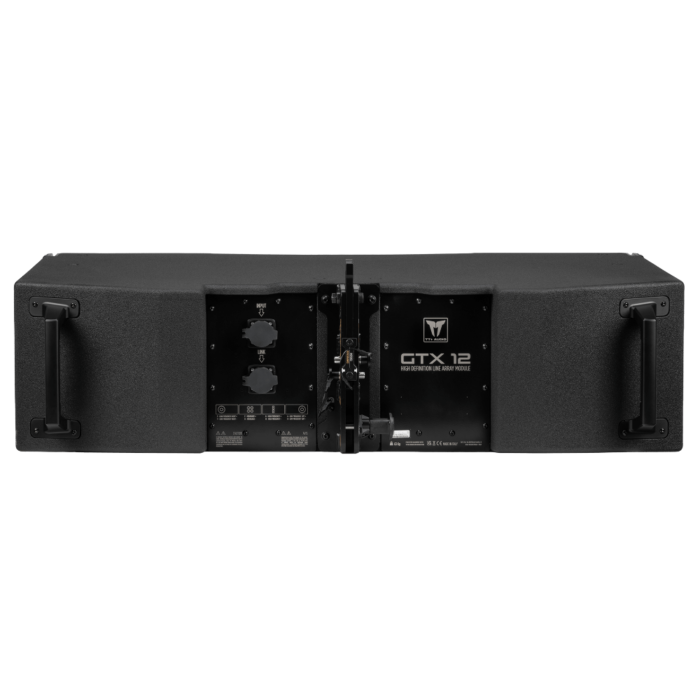

Handles: 1x side, 2x rear
Color: Black
Height: 366 mm / 14.41 inches
Width: 1177.5 mm / 46.36 inches
Depth: 540.6 mm / 21.28 inches
Weight: 64.2 kg / 141.54 lbs
Package Height: 605 mm / 23.82 inches
Package Width: 1210 mm / 47.64 inches
Package Depth: 400 mm / 15.75 inches
Package Weight: 71.2 kg / 156.97 lbs
