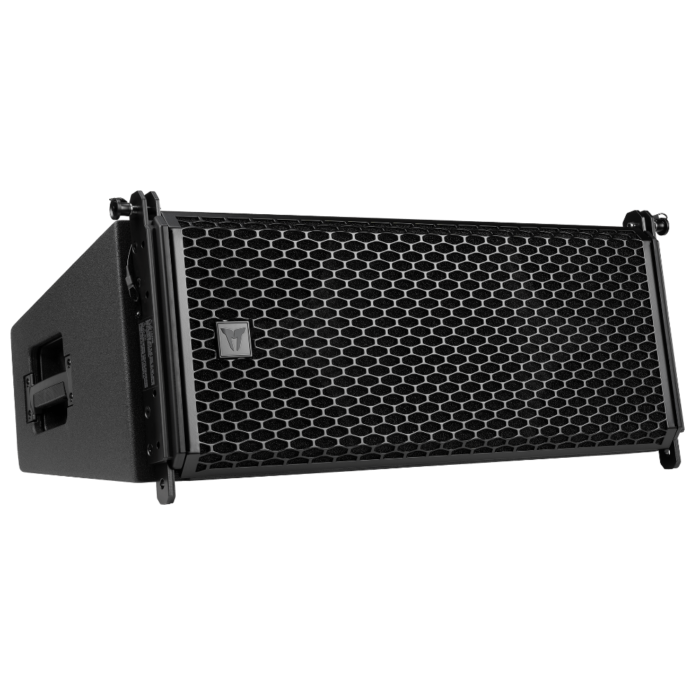

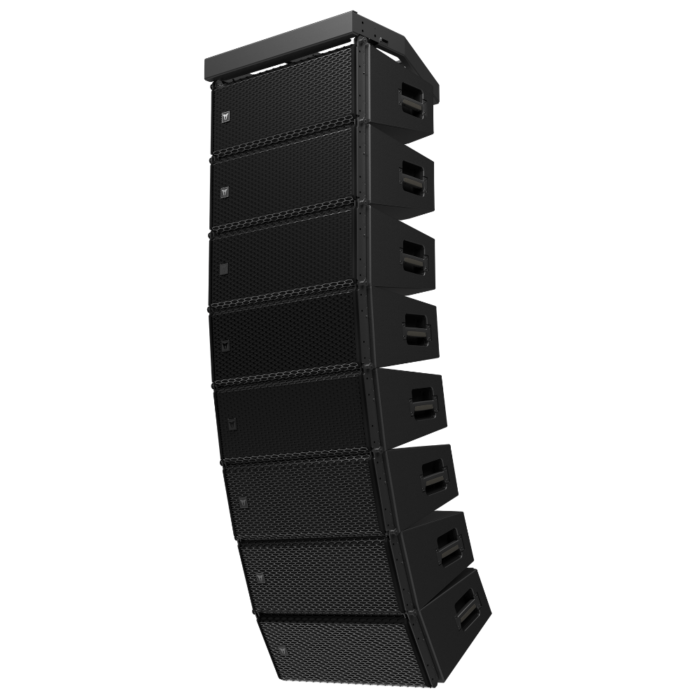

The GTX 10 is a 2-way line array module for medium to large-scale, high-demanding touring and install applications, indoors and outdoors. Equipped with three best-in-class transducers, it offers excellent reproduction quality and optimized directivity. Up to 24 GTX 10 modules can be suspended on a single fly-bar.
The GTX 10 is the solution for medium-sized events where high scalability and fast deployment are required. While the GTX system is already the epitome of quality in the TT+ AUDIO catalog, the GTX 10 line array incorporates this philosophy fully, providing remarkable power and extreme clarity in a small and fast-to-deploy package.
The symmetrical enclosure design and component topology produce consistent coverage from left to right. Symmetrical component positioning and special DSP crossover filtering provide constant directivity and perfect continuity of the hemicylindrical wave directivity without lobes and discontinuities. Frequency modulations are avoided by the optimized active crossover design.

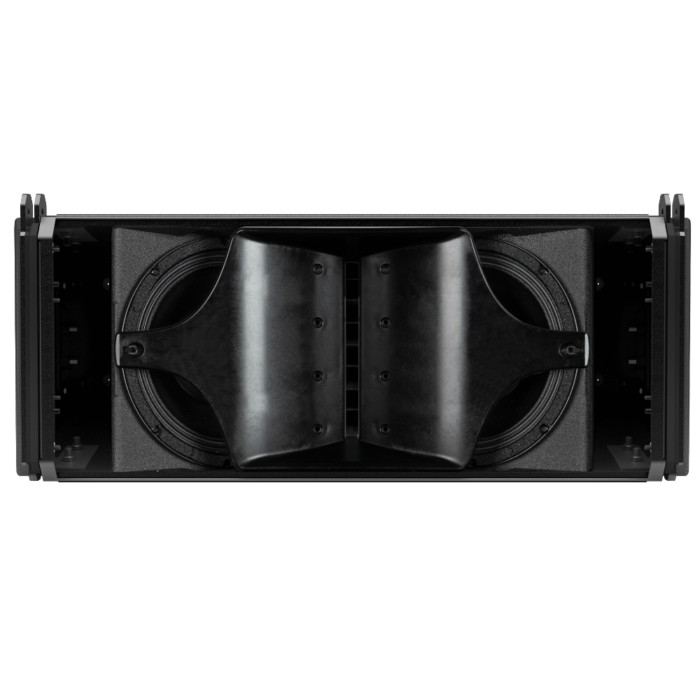

The 4-inch titanium dome compression drivers, equipped with high-current neodymium magnets, are designed to fully leverage the remarkable capabilities of the TRW-4PATH waveguide. As a result, the GTX10’s 110° x 15° coverage is finely matched with the output of its woofers for perfect phase coherence.
The low distortion, high output design of the two 10” HyperVented woofers ensure superb fidelity and high dynamic range. With 3.0” inside-outside voice coils and high flux density neodymium magnets, the fast, high-stiffness motor section provide high impact low frequency reproduction.

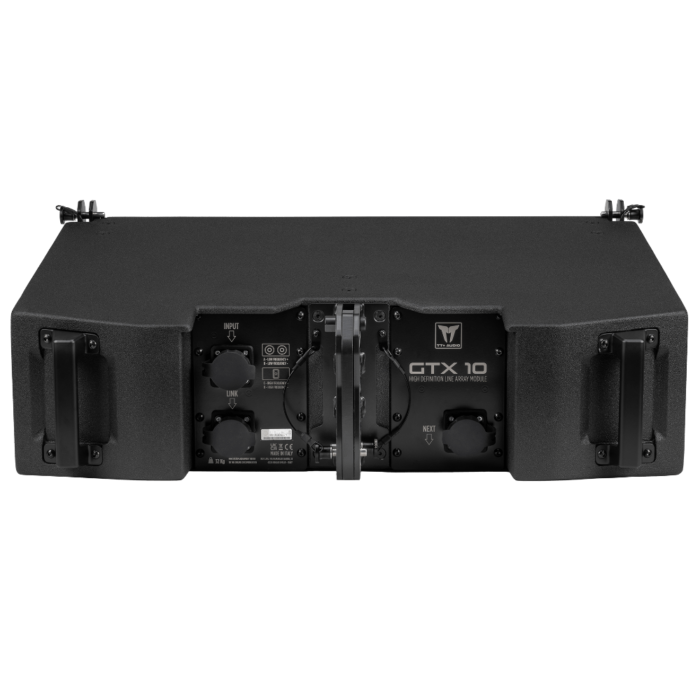

The sturdy weather-resistant birch multi-ply enclosure with durable polyurea coating features optimized hardware for speed and efficiency, with a rear hinge bar mechanism that slips into the angle preset position when hoisting the array. The optional cart (Model# KRT-WH 002) allows for the transport of four GTX 10 enclosures, with custom-designed protective covers for safe handling.
Specifications
Frequency Response (-10dB): 42 Hz ÷ 20000 Hz
Max SPL @ 1m: 143 dB
Horizontal coverage angle: 110°
Vertical coverage angle: 15°
Amplification: Bi-amp
Nominal Impedance LF: 8 ohm
Nominal Impedance HF: 8 ohm
Compression Driver: 1 x 1.4″ neo, 4.0″ v.c
Woofer: 2 x 10″ neo, 3.0″ v.c

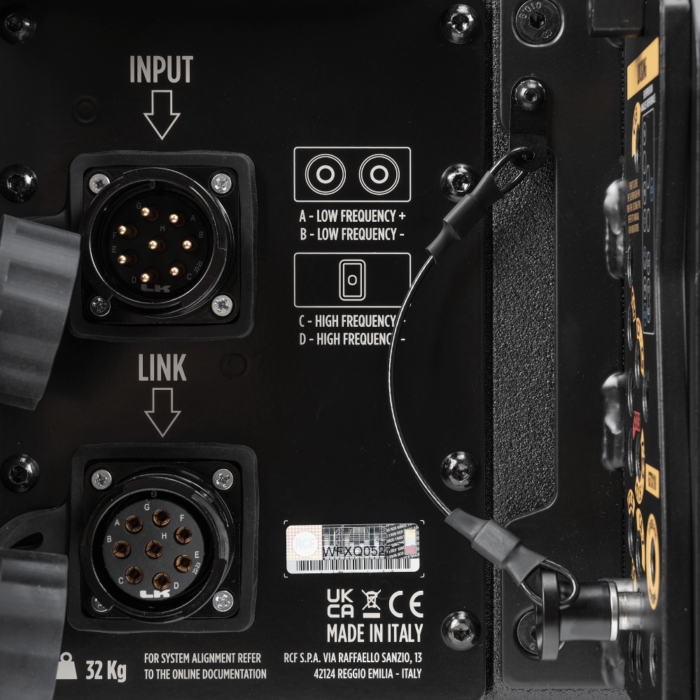

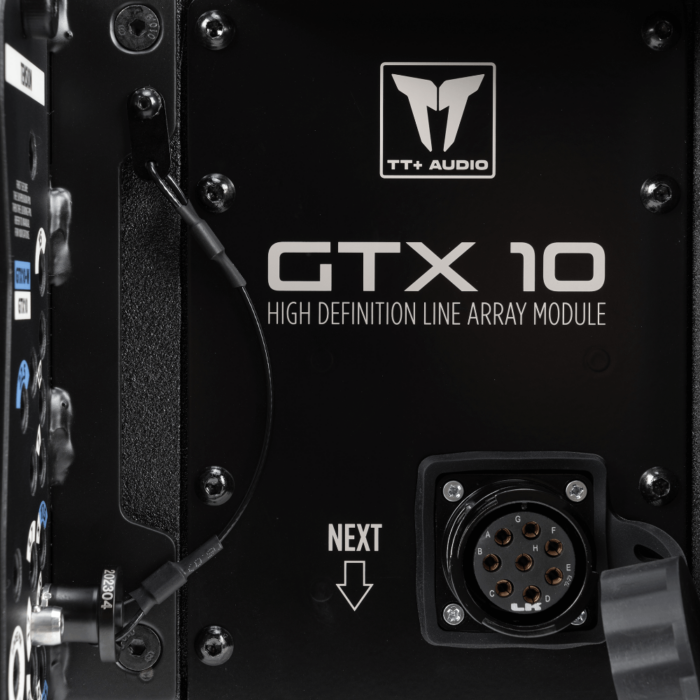

I/O Connectors: P-COM 8POLE
Safety agency: CE compliant
Hardware: Array fittings
Handles: 1x side, 2x rear
Color: Black
Height: 337 mm / 13.27 inches
Width: 750 mm / 29.53 inches
Depth: 483.5 mm / 19.04 inches
Weight: 31.5 kg / 69.45 lbs
Package Height: 539 mm / 21.22 inches
Package Width: 787 mm / 30.98 inches
Package Depth: 382 mm / 15.04 inches
Package Weight: 33.2 kg / 73.19 lbs
