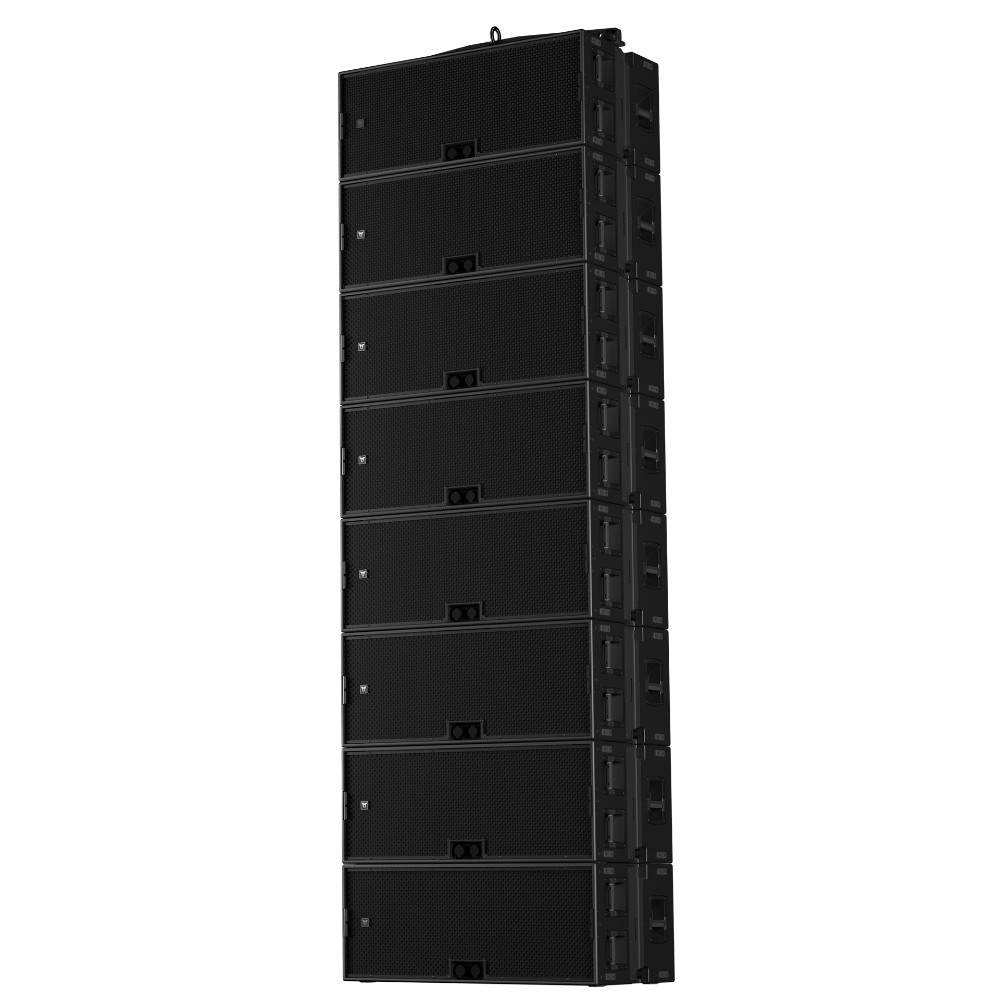

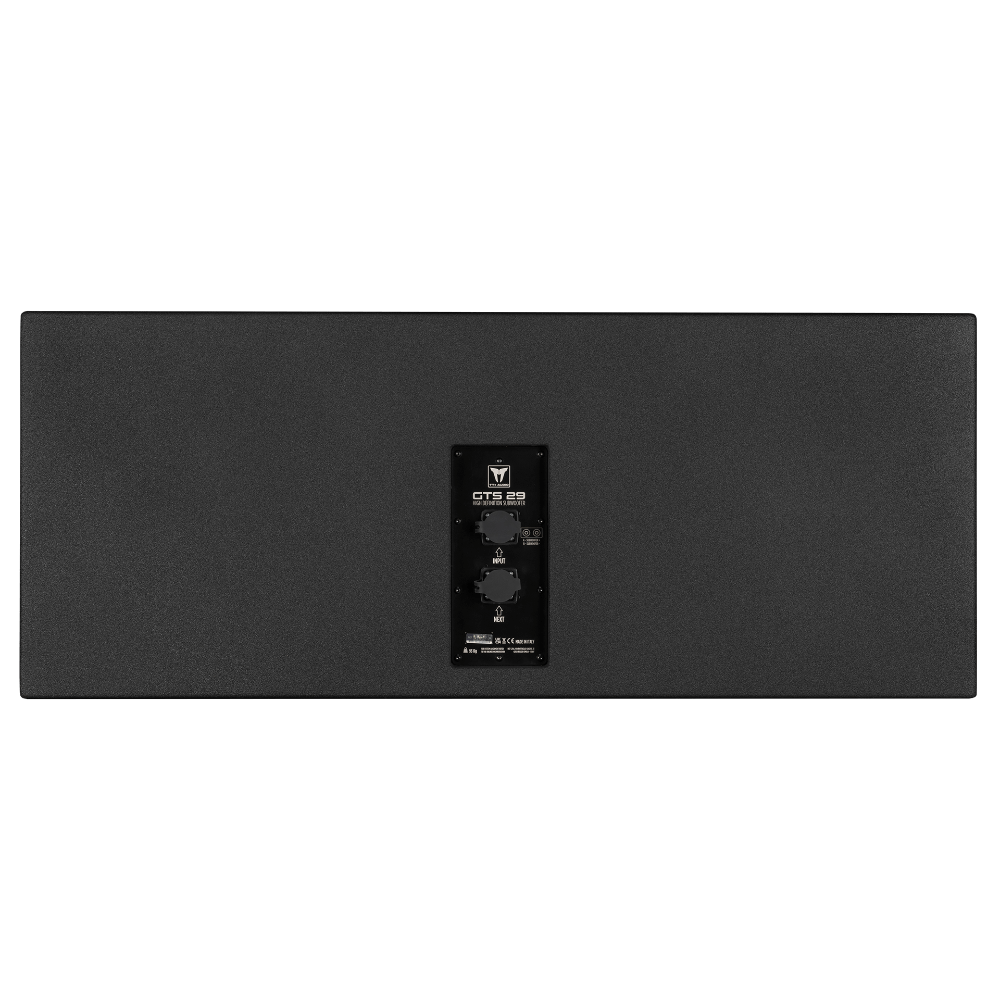

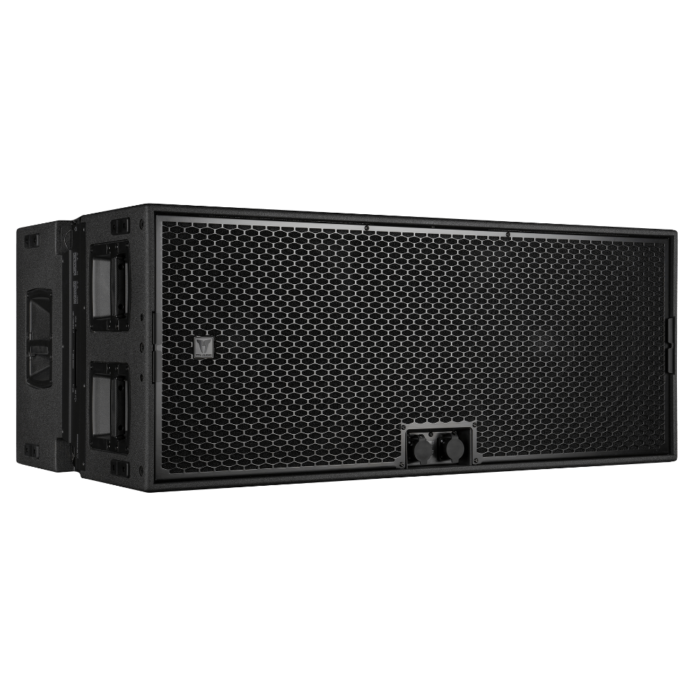

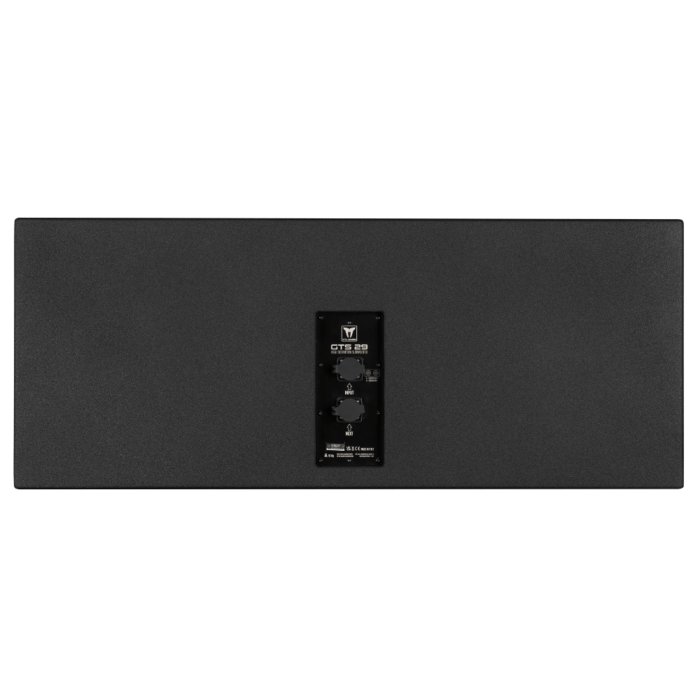

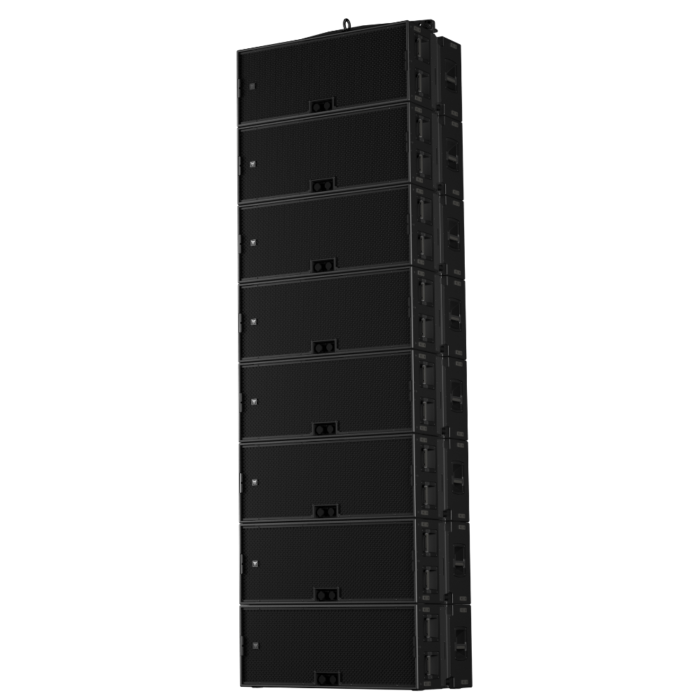

The GTS 29 is a dual 19”subwoofer module for the low-frequency extension in high-demanding touring and install applications, indoors and outdoors. Equipped with two high-excursion best-in-class transducers, it offers excellent reproduction quality and extreme sound pressure. The cabinet is provided with power connections on front and back panels for easy deployment in cardioid configuration. Up to 16 GTS 29 modules can be ground-stacked or flown on a single fly-bar.
The GTS 29 is the most versatile and powerful subwoofer ever built by TT+ AUDIO. This subwoofer incorporates the latest transducer technology from our labs and comes with a flyable, fast-to-deploy enclosure. Despite its small and lightweight footprint, the GTS 29 produces powerful yet articulate bass remaining true to even the most subtle low-frequency variations.

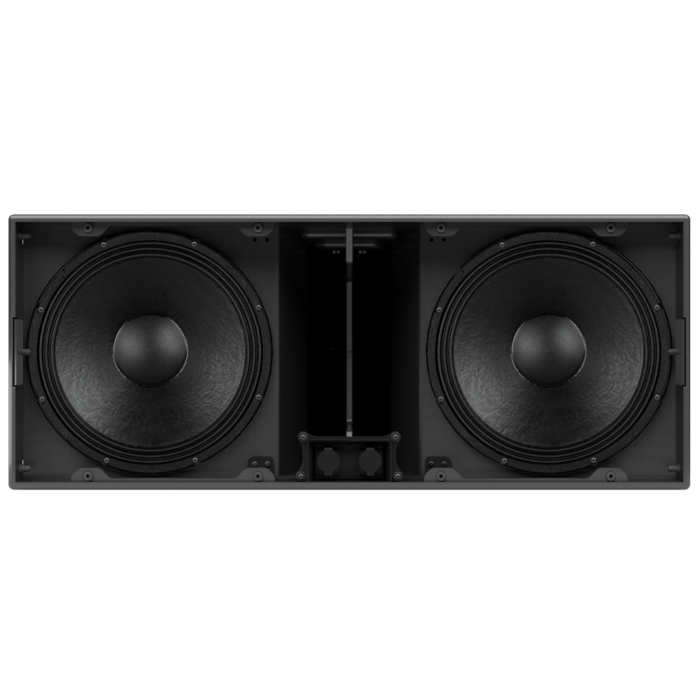

The new unconventional motor structure was requested by touring professionals for accurate low-frequency reproduction using a high excursion piston. The 19 inch cone size is the ideal balance between traditional high-speed 18” and the slower 21” and inherits the best characteristics of the two sizes. Employing lightweight aluminum core coils, high-damping cellulose cone material, composite spiders and a 4-layer inside-outside voice coil, the ultra-long excursion moving mass (67 mm / 2.6”) gains high power with fast acceleration. The improved TT+ Audio’s Hypervented technology reduces power compression, heat and distortion.

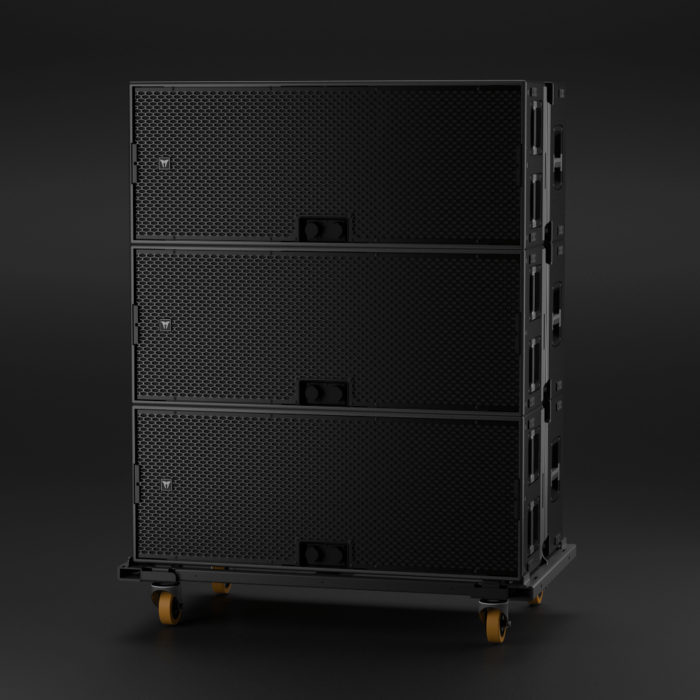

The sturdy weather-resistant birch plywood enclosure with durable polyurea coating features optimized hardware for speed and efficiency, with anti-rattle mechanism for fast and safe suspension in both straight and reverse cardioid mode. A detachable cart can be secured to the front and the stack cart can carry up to three GTS 29 enclosures, with custom-designed protective covers for safe handling.
Specifications
Frequency Response (-10dB): 25 Hz ÷ 200 Hz
Max SPL @ 1m: 144 dB
Amplification: Full Range
Nominal Impedance LF: 8 ohm
Nominal Impedance LF2: 8 ohm
Woofer: 2 x 19″ neo, 4.0″ v.c
I/O Connectors: P-COM 8POLE
Safety agency: CE compliant
Hardware: Suspension fittings, M20 Socket
Handles: 3x side
Color: Black
Height: 531.5 mm / 20.93 inches
Width: 1310 mm / 51.57 inches
Depth: 735 mm / 28.94 inches
Weight: 96 kg / 211.64 lbs
Package Height: 620 mm / 24.41 inches
Package Width: 1360 mm / 53.54 inches
Package Depth: 800 mm / 31.5 inches
Package Weight: 107 kg / 235.89 lbs
