The new Tentacle SYNC E mkII timecode generator is based on the well-known SYNC E. We have made it ready for the future with Bluetooth 5 and improved battery management. The rest of the improvements you won’t recognize, but make the production much easier to handle. Everything else is as good as always: same precision, same size and weight, same features, full compatibility with all Tentacle devices and same prize.

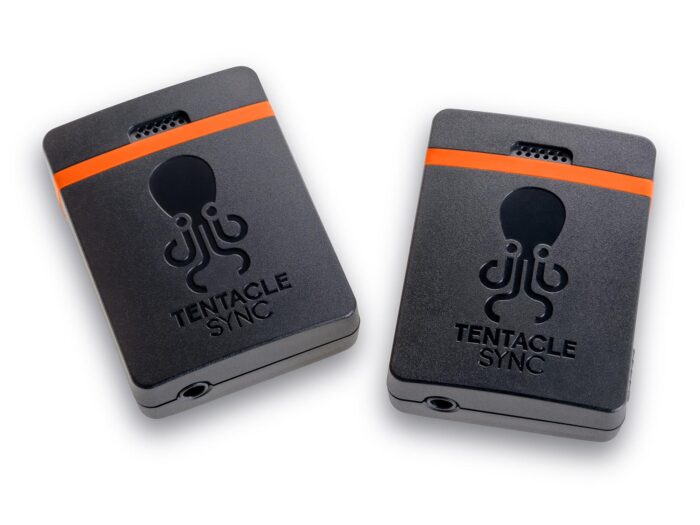

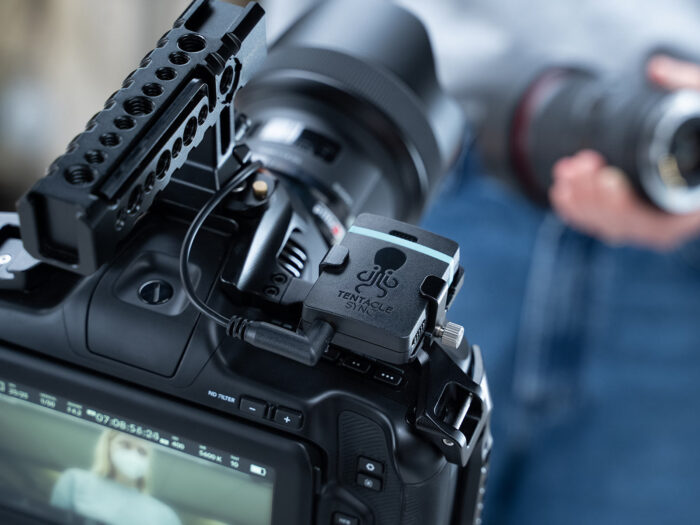

The Standard Set, with two SYNC E mkII devices, is a complete hardware/software solution offering timecode synchronization over Bluetooth. The Set also includes the renowned Tentacle Sync Studio Software for macOS, for fast and easy synchronization of your audio and video footage. The Tentacle SYNC E combined with our TRACK E timecode audio recorder is the perfect workflow solution for any video shooting from YouTube and Wedding applications to Multicam setups as well as post production syncing tasks.
FEATURES
- Syncing over Bluetooth 5 (Low Energy) for monitoring and setup via phone or tablet
- Super small and lightweight

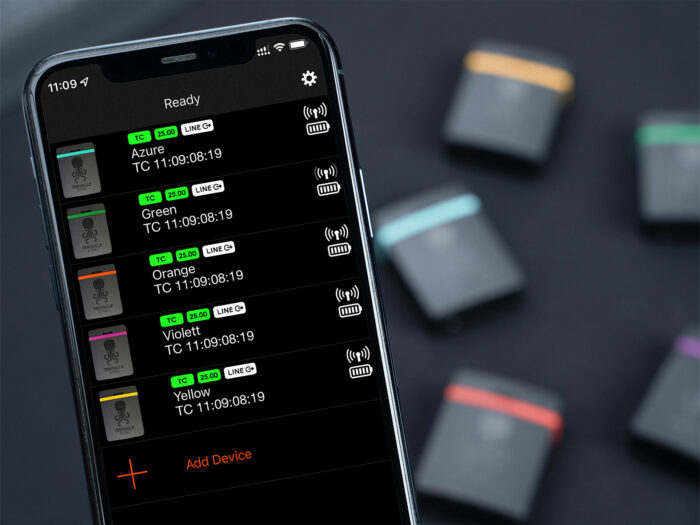

- Frame rate and TC output level adjustable via Tentacle Setup App (iOS/ Android/ macOS/ Windows)
- Two Tentacle Sync Studio Software Licenses included

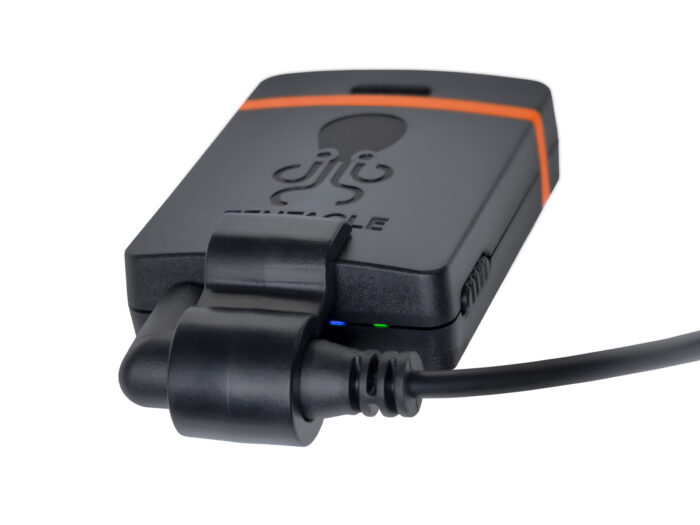

- Tentacle Clamp locks a right-angle mini jack connector
- Accurate built-in reference microphone
- Generates All SMPTE timecode rates or jam-sync to any external timecode source
- High precision TCXO: accuracy with less than 1 frame drift in 24 hours (-30°C to +85°C)
- Designed and manufactured in Köln, Germany
SPECS
LTC Timecode: According to SMPTE-12M Standard
Drift: High Precision TCXO: Accuracy Less than 1 Frame Drift in 24 Hours (-30°C to +85°C)
Frame rates: 23.98, 24, 25, 29.97, 29.97DF, 30
Timecode I/O: Mini Jack Socket
Audio: Built-In Reference Mic

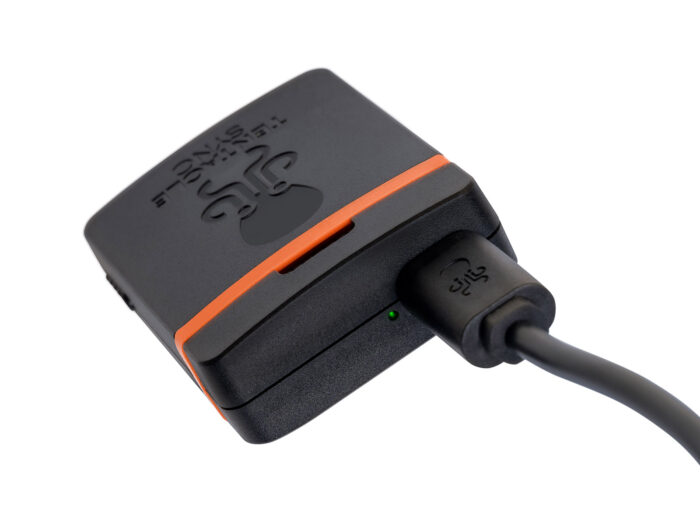

Power: Built-In Lithium Polymer Battery, up to 35 hrs Operating Time, Fast Charging via USB-C (max. 1.5 hrs)

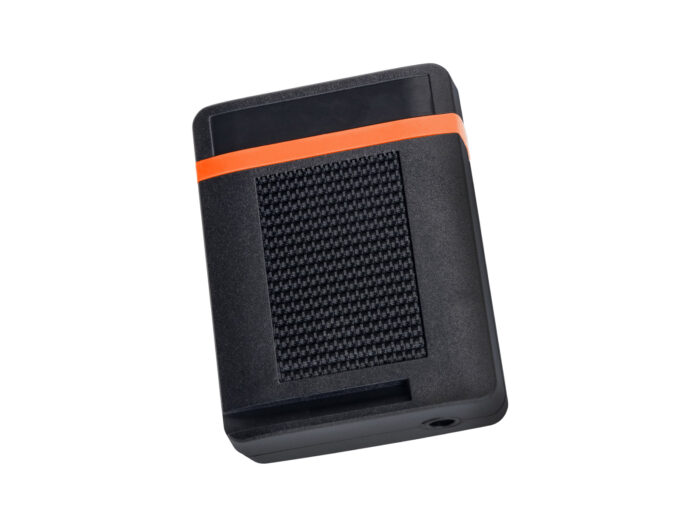

Mounting: Integrated Hook Surface on the Back for Easy Mounting
Weight: 30 g / 1 oz
Dimensions: 38 x 50 x 15 mm / 1.49 x 1.97 x 0.59 inches

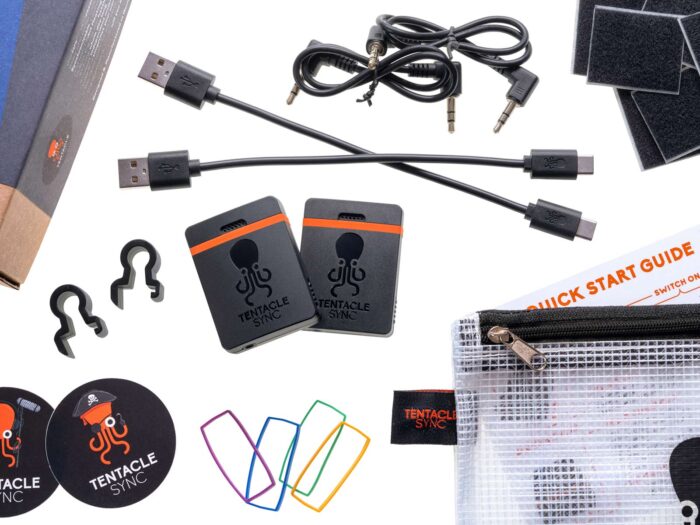

WHAT’S IN THE BOX?
- 2x Tentacle SYNC E – Timecode Generator with Bluetooth™ Functionality
- 2x Mini-Jack-Cable (90° angled) for Syncing Cameras with TRS (Sony a7S III, BMPCC4K/6K, GH5s …)
- 2x USB-C Cable for Charging and Setup (Win/Mac)
- 2x Tentacle Clamps for Locking your Right-Angle Cables to the Tentacle SYNC E
- 10x Velcro Loop Pads for Mounting the Tentacle to any Device
- 4x Coloured Rubber Bands
- 1x Quickstart Guide
- 1x Software Activation Details and Manual included
