Inspire your audience. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.
The XS WIRELESS 2 LAVALIER MIC SET is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone. Metal receiver housing and rackmount kit included.
- Unobstrusive clip-on microphone for hands-free operation and compact bodypack transmitter
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
Receivers
-
- Dimensions
-
approx. 200 x 42 x 127 mm
-
- Weight
-
-
- Power supply
-
-
- Housing
-
-
- AF frequency response
-

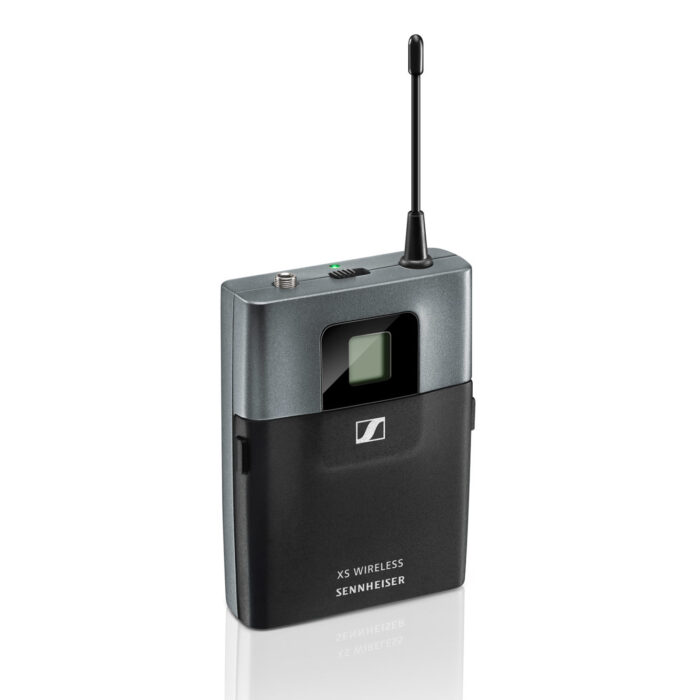

Transmitter
-
- Dimensions
-
-
- Weight
-
-
- Operating time
-
-
- Power supply
-
2 AA size batteries, 1.5 V
-
- Housing
-
-
- AF frequency response
-
-
- Microphone
-
-
- Frequency response
-
-
- THD, total harmonic distortion
-
-
- Pick-up pattern
-
-
- Signal-to-noise ratio
-
-
- RF output power
-
-
- Switching bandwidth
-
-
- Modulation
-
-
- Output voltage
-
‘1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
-
- Diversity reception
-
-
- Frequency
-
8 frequency banks, each with up to 12 factory-preset channels
-
- Frequency range
-
A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz
-
- Sensitivity
-
< 3 μV at 52 dB(A)rms S/N
-
- Squelch
-
switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
-
- Synchronization
-
2.4 GHz, Low Power OQPSK (only active during synchronization)
-
- Adjustment Range Transmitter
-
0 to -30 dB, adjustable in 10 dB steps
-
- Audio adjustment range
-
40 dB, adjustable in 5-dB steps
-
- Line / Mic level
-
-
- Temperature Range
-
operation: 0°C to +40°C, storage: –20°C to +70°C
-
- Receiver Principle
-
