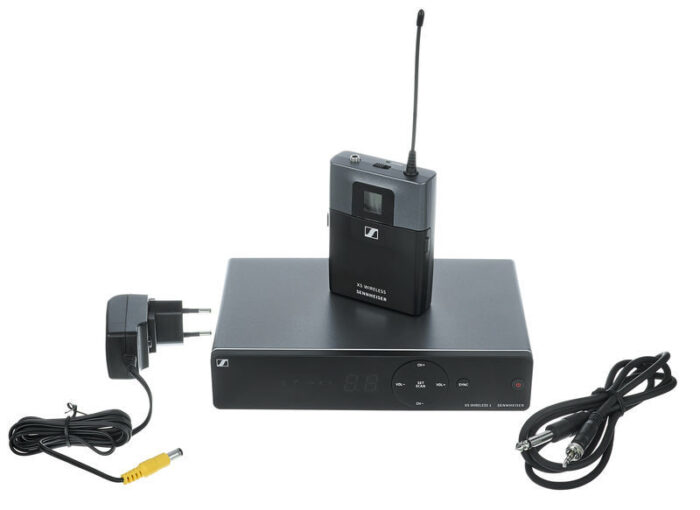

Sennheiser XSW 1-CI1-BC Wireless instrument set. Includes (1) SK-XSW bodypack transmitter, (1) Ci 1 instrument cable, (1) EM-XSW 1 stationary receiver with internal antennas and (1) NT 12-5 CW power supply
Amplify your tunes. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 INSTRUMENT SET is an easy to use all-in-one wireless system for guitarists and bassists, excellent for live sound. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable
- Compact bodypack transmitter, rugged instrument cable
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
General
- THD, total harmonic distortion: ≤ 0.9%
- Signal-to-noise ratio: ≥ 103 dBA
- RF output power: 10 mW
- Switching bandwidth: up to 24 MHz
- Operating time: approx. 10 hrs
- Modulation: Wideband FM
- Frequency: 8 frequency banks, each with up to 10 factory-preset channels
- Sensitivity: < 3 μV at 52 dB(A)rms S/N
- SPL for peak deviation: 130 dB
- Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
- Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
- Input sensitivity: 1.5 mV / Pa
- AF frequency response: Receiver: 50 to 16,000 Hz (–3 dB)
- Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range: 45 dB, adjustable in 5-dB steps
- Line / Mic level: 20 dB, switchable
- Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
- Receiver Principle: double superheterodyne
- Diversity principle: Antenna switching diversity via internal antennas
Physical & Dimensions
- Dimensions
- Receiver: approx. 200 x 42 x 127 mm
- Bodypack transmitter: approx. 71 x 96 x 28 mm
- Weight: approx. 340g (receiver), approx. 95g (transmitter)
- Power supply:
- Receiver: 12 V DC nom. / 300 mA
- Transmitter: 2 AA size batteries, 1.5 V
- Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Housing: Rugged ABS housing
