A powerful performance. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band.
The XS WIRELESS 1 BRASS SET is an easy to use all-in-one wireless system, especially designed to provide a powerful
live sound for brass instruments. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a rugged condenser gooseneck microphone.

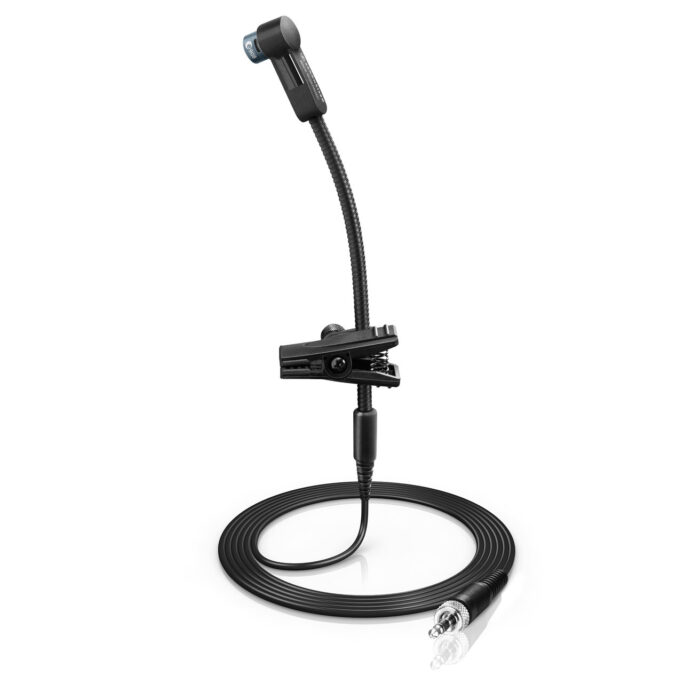

- Versatile gooseneck microphone with outstanding sound reproduction from the renowned evolution microphone series
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
Receivers
-
- Dimensions
-
approx. 200 x 42 x 127 mm
-
- Weight
-
-
- Power supply
-
Receiver: 12 V DC nom. / 300 mA
-
- AF frequency response
-
Receiver: 50 to 16,000 Hz (–3 dB)

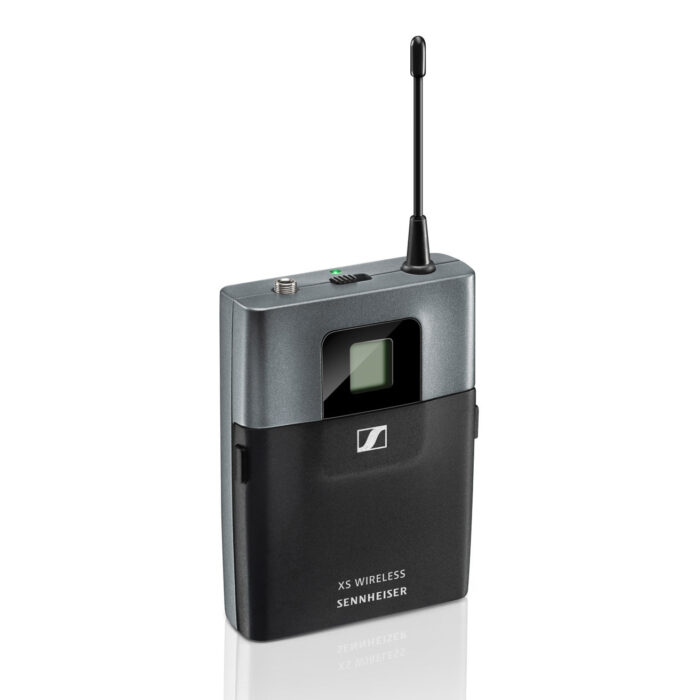

Transmitter
-
- Dimensions
-
-
- Weight
-
-
- Power supply
-
Transmitter: 2 AA size batteries, 1.5 V
-
- Adjustment Range Transmitter
-
0 to -30 dB, adjustable in 10 dB steps
-
- Microphone
-
-
- THD, total harmonic distortion
-
-
- Pick-up pattern
-
-
- Signal-to-noise ratio
-
-
- RF output power
-
-
- Switching bandwidth
-
-
- Operating time
-
-
- Modulation
-
-
- Output voltage
-
1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
-
- Housing
-
-
- Frequency
-
8 frequency banks, each with up to 10 factory-preset channels
-
- Frequency range
-
A: 548-572 MHz, GB: 606-630 MHz
E: 821-832 MHz, 863-865 MHz
-
- Sensitivity
-
< 3 μV at 52 dB(A)rms S/N
-
- SPL for peak deviation
-
-
- Squelch
-
adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
-
- Synchronization
-
2.4 GHz, Low Power OQPSK (only active during synchronization)
-
- Input sensitivity
-
-
- Audio adjustment range
-
45 dB, adjustable in 5-dB steps
-
- Line / Mic level
-
-
- Temperature Range
-
operation: 0°C to +40°C, storage: –20°C to +70°C
-
- Receiver Principle
-
-
- Diversity principle
-
antenna switching diversity via internal antennas
