- For Stage and Theater Applications
- 8 Banks of 10 Frequency Presets
- Automatic Frequency Management
- Built-In Antennas
- No Lengthy Set Up

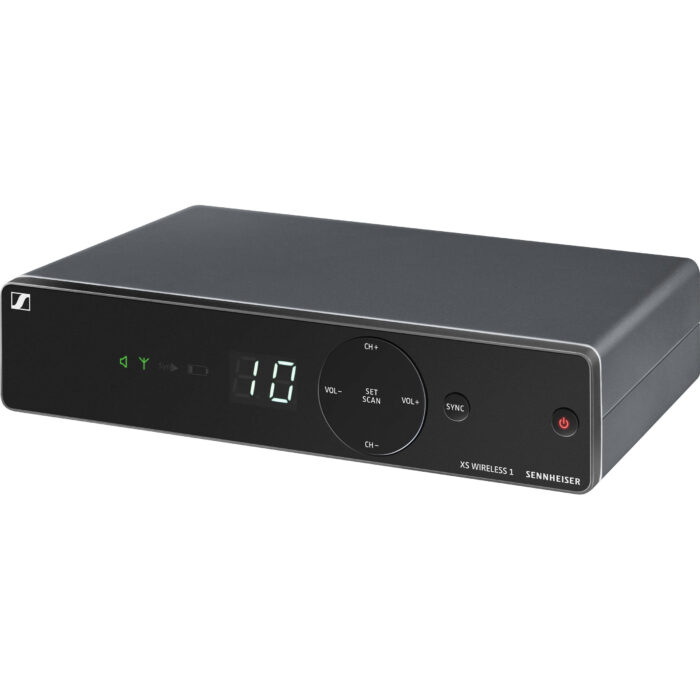

The EM-XSW 1-A Table Top Receiver from Sennheiser is designed to be paired with the XSW 1-A handheld microphone or bodypack transmitter with a lavalier microphone (sold separately). It can be used to capture audio for live stage applications and features internal, integrated antennas, as well as automatic frequency management, which offers up to ten coordinated frequency presets for wireless applications.
The receiver is built to withstand even the toughest stress in everyday on-stage use and offers reliable transmission with easy-to-use set up. No matter whether you’re a band, a theater, or at a seminar, the XS Wireless 1 receiver lets you do your thing and not worry about equipment.
Great Performance and Price
The XS Wireless 1 receiver lets you concentrate on your talent and not the equipment. Just switch it on and its automatic frequency management does the rest. You can operate up to 10 coordinated frequency preset wireless connections.
Live Sound
The receiver yields an open, natural sound. No lengthy set up—just go!
Reliable Transmission
On stage, you must put up with a lot of things—so does your equipment. XS Wireless 1 is built to last: Receivers are designed to withstand even the toughest stress in everyday on-stage use.
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 80 |
| Diversity | Antenna Diversity |
| RF Channel Scanning | Auto-Scan |
| Max Transmitters per Band | 10 |
| Timecode Support | No |
| Control App Support | No |
| Modulation | Wideband FM |
Receiver
| Receiver Type | Tabletop |
| Mounting Options | Tabletop |
| Antenna | Internal |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR TRS Male Balanced Mic/Line Output 1 x 1/4″ TS Female Unbalanced Mic/Line Output |
| Gain Range | 45 dB (5 dB Steps) |
| Audio Output Level | XLR Output: +12 dBu (Balanced) 1/4″ Output: +6 dBu (Unbalanced) |
| Frequency Response | 50 Hz to 16 kHz -3 dB |
| Network I/O | None |
| Network Protocols | None |
| Word Clock I/O | None |
| USB/Lightning Connectivity | None |
| Standalone Audio Interface Capable | No |
| RF Principle | Double Superheterodyne |
| Approximate RF Sensitivity | 52 dB / 3 µV |
| RF Output Power | 10 mW |
| Squelch | Adjustable, 3 to 25 dBμV |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 VDC at 300 mA (Included) |
| Display & Indicators | 1 x LCD |
| Housing | ABS |
| Dimensions | 7.9 x 1.7 x 5″ / 200 x 42 x 127 mm |
| Weight | 12 oz / 340 g |
Packaging Info
| Package Weight | 1.91 lb |
| Box Dimensions (LxWxH) | 11.15 x 10 x 3.3″ |
