4 x 4000 W
Class D Continuous Power at 2.7 Ohms
Configurations
and Presets Provided for RCF Speakers
Ideal for Both Touring and Installed Sound Systems
with Analog, Digital
and Dante I/O
for each Amplifier Channel and Power Supply
XPS Series is the best choice for high-power installation systems such as auditoriums, theme parks, and performance venues. Whether perfectly integrating with RCF passive speakers with ready-to-use presets, XPS provides installation-specific features, including enhanced system status monitoring, GPIOs for extended capabilities, flexible routing, and perfect integration with our proprietary RDNet management platform.
XPS shines when used in touring applications and live events from medium to very large capacity. Paired with RCF high-powered passive speakers, XPS gives a new perspective in sound system management. The system designer now has complete flexibility in choosing powered, or externally amplified speakers, balancing portability, weight, ease of installation, cabling, fast setup speed, and complete remote management, via RDNet.

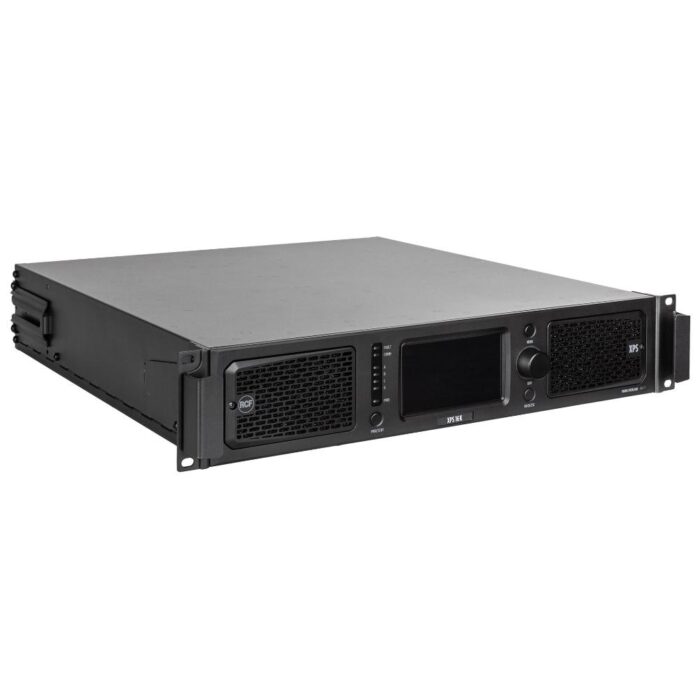

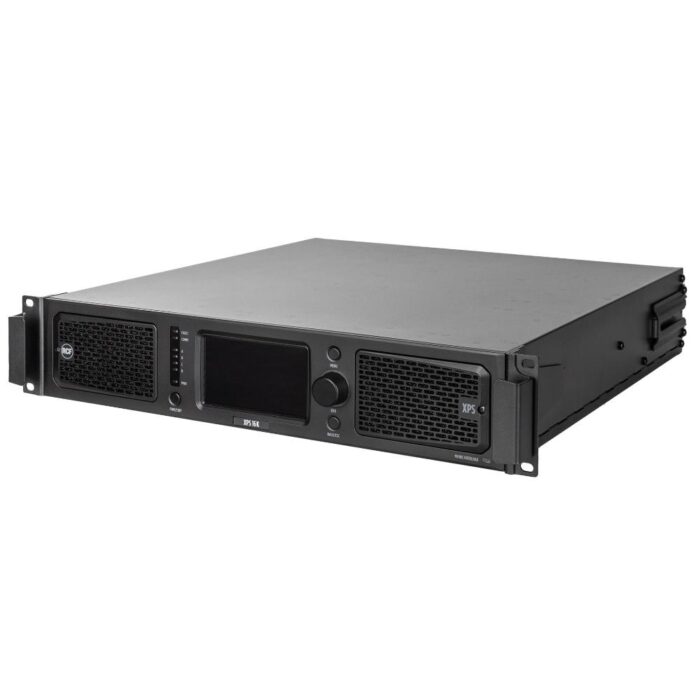

XPS 16K provides extreme power density with 4 x 4000 W continuous power outputs in 2 RU space for both touring and installed sound systems. The unit features 4 analog and digital AES/EBU inputs/outputs, a Dante Network ready design, and complete signal processing, tuning, and routing capability all at 96 kHz. Redundancy and full scalability are granted by the advanced and modular design of the circuitry. A complete set of RCF speaker presets is available, with powerful signal processing for complete system tuning.
XPS 16K supports the RCF philosophy with a power-agnostic approach, where the sound system engineer has complete freedom in choosing powered, or externally amplified, modules for their system. XPS 16K offers a new solution for balancing portability, weight, ease of installation, cabling, fast setup speed, and complete remote management of each connected device, via RDNet.
RCF’s effort in assisting both installers and sound providers with the best audio technology and clear, powerful sound is at the core of the company’s beliefs. Since 1949, providing both power amplifiers and transducers to the professional market, the RCF experience marks a new milestone with XPS 16K.
Amplifier Class:
D
Output power (EIAJ 8:32 all channels driven):
4 x 4000 W @ 2.7 ohm
4 x 2600 W @ 4 ohm
4 x 1400 W @ 8 ohm
Frequency Response (-3dB):
20 Hz ÷ 23000 Hz
SNR (unweighted)
Analog inputs: 111 dB
Digital inputs: 115 dB
Crosstalk:
<70 dB
THD+N (20 Hz ÷ 20000 Hz, 1000 W @ 4ohm):
<0.2 %
Gain (linear mode @ 0 dB):
32 dB
Damping factor (@ 4 ohm, 20 Hz ÷ 1500 Hz):
> 95
Max burst length (@ 50 Hz, CF = 7 dB, 4 ohm, 1% THD+N):
200 ms

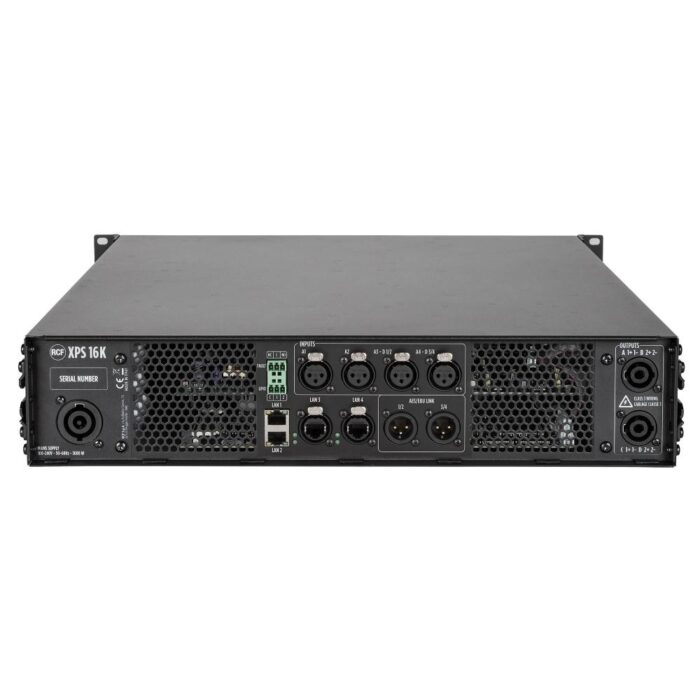

Total number of inputs:
8
Line inputs:
4
Line connectors:
XLR
Input impedance:
19 kohm (unbalanced)
Maximum input level:
+24 dBU
Digital inputs:
4
Digital connectors:
XLR
Digital type:
4 AES/EBU
General Purpose Inputs (GPI):
2
Programmable GPI:
Yes
Photo-coupled GPI:
Yes
Signal output number:
4
Signal output connectors:
XLR
Power output lines:
4
Power output connectors:
Speakon
General Purpose Outputs (GPO):
3
Programmable GPO:
Yes
Digital Signal Processing (DSP):
2 SHARC, 40-bit floating point, 96 kHz
2 ADAU 1442, 32-bit fixed point, 96 kHz
EQ Filters:
Peaking | HI/LO-shelving | HI/LO-pass
(Butterworth, Linkwitz-Riley, Bessel)
Advanced algoritms:
FiRPHASE technology | BASS shaper | air compensation | mid-low correction | driver excursion control | dynamic PEQ | multi-band compressor | pilot tone detection | backup recovery strategy | impedance load measurement
Compressors:
RMS limiter | dynamic compressor | power limiter | thermal compressor
Delay:
0 ÷ 4000 ms (each channel)
Configuration:

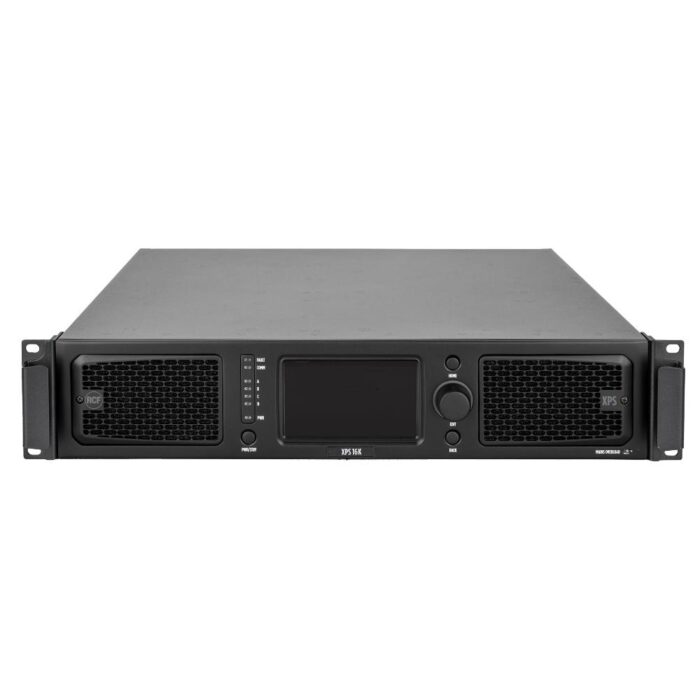

Front panel touch screen | PC Software
Speakers presets:
RCF presets library
Control and monitoring protocols:
Proprietary OSC based protocol | RDNet
Network:
Gigabit ethernet
Forced cooling | short circuit | thermal | DC | Fuses | VHF (Very High Frequencies)
Temperature range
Continuous operation:
–5°C ÷ +40°C / +23°F ÷ +104° F
Reduced output power:
–5°C to +50°C / +23°F to +122°F
Fan noise idle:
<35 dBA
Fan noise max:
<64 dBA
Operating voltage:
90-240 V~ 50/60Hz
Nominal current requirements (@ 100-120 V):
30 A
Nominal current requirements (@ 200-240 V):
16 A
Power consumption standby:
20 W
Power consumption idle:
90 W
Power consumption max:
5800 W
Mains fuse:
Internal
CE | UL
Cabinet/Case Material:
Metal
Handles:
2 metal handles for rack mount
Color:
Black
Rack mounting:
19″, 2U
Height:
88.7 mm / 3.49 inches
Width:
482 mm / 18.98 inches
Depth:
482.4 mm / 18.99 inches
Weight:
15 kg / 33.07 lbs
Package Height:
150 mm / 5.91 inches 580 mm / 22.83 inches
Package Width:
580 mm / 22.83 inches
Package Depth:
600 mm / 23.62 inches
Package Weight:
18 kg / 39.68 lbs
