RCF X MAX 12

• 800 W program power handling
• 129 dB max SPL
• 60 ÷ 20000 Hz frequency range
• 90° x 70° constant directivity coverage angle
• 1 x 12″ high power woofer
• 1 x 1.4″ voice coil compression driver
• High quality plywood cabinet

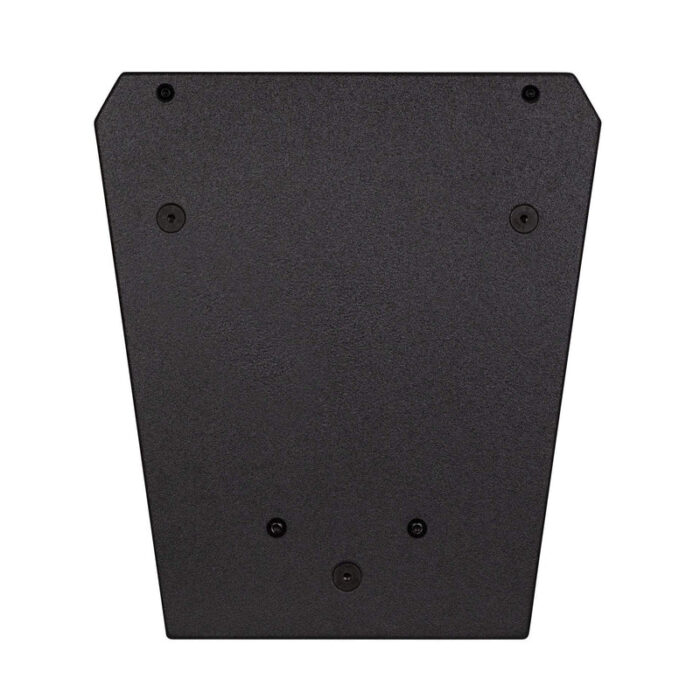

• Installation points available on all sides

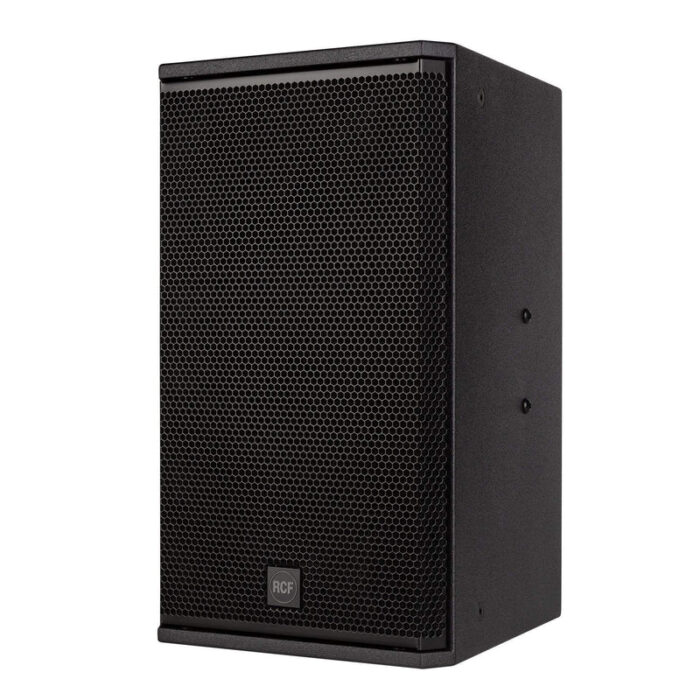

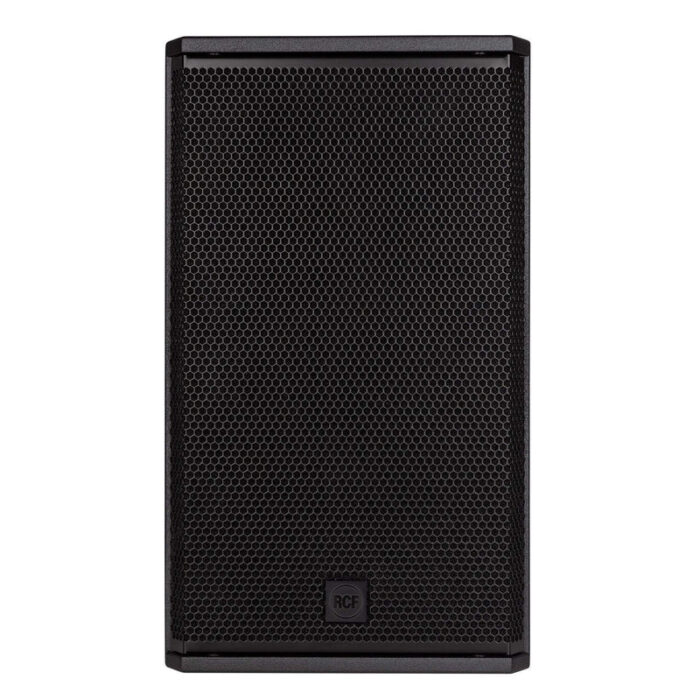

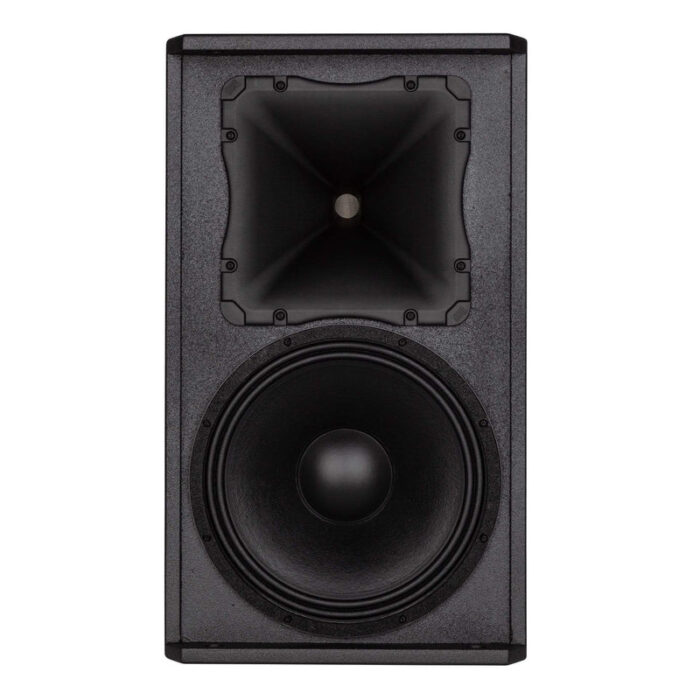

X MAX 12 is a full-range passive two-way speaker designed for entertainment and clubs, featuring high nearfield quality, perfect vocal coherence, and a stable tonal balance even at high volume. The 12” woofer with a 2.5” voice is coupled with a 1.0” compression driver with 1.4” voice coil by a LICC crossover design, which includes electronic protection on the high-frequency device. Black textured acrylic paint protects the plywood heavy-duty speaker cabinet with multiple rigging points. The rotatable 90°x70° horn allows installation either vertically or horizontally for the best versatility in any environment and architectural constraint.

SPECIFICATIONS
