- 700 W program power handling
- 128 dB max SPL
- 65 ÷ 20000 Hz frequency range
- 90° x 70° constant directivity coverage angle
- 1 x 10″ high power woofer
- 1 x 1.4″ voice coil compression driver
- High quality plywood cabinet
- Installation points available on all panels

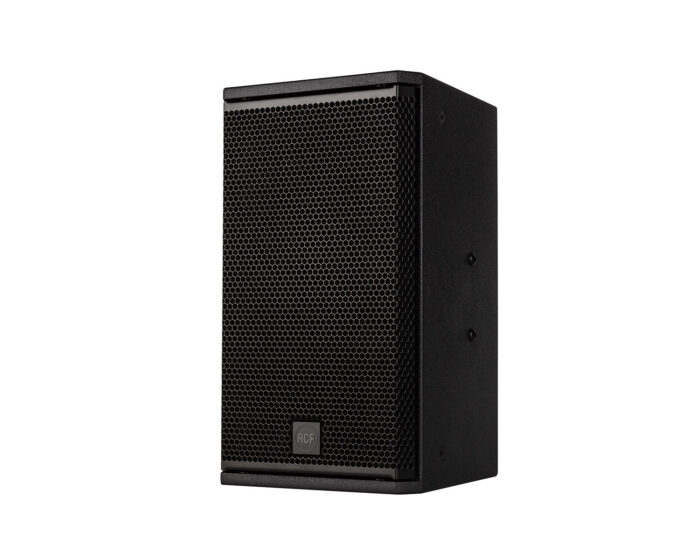

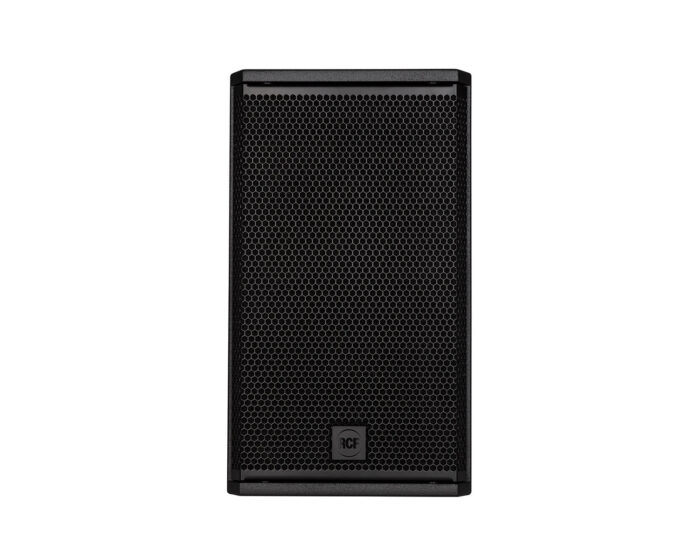

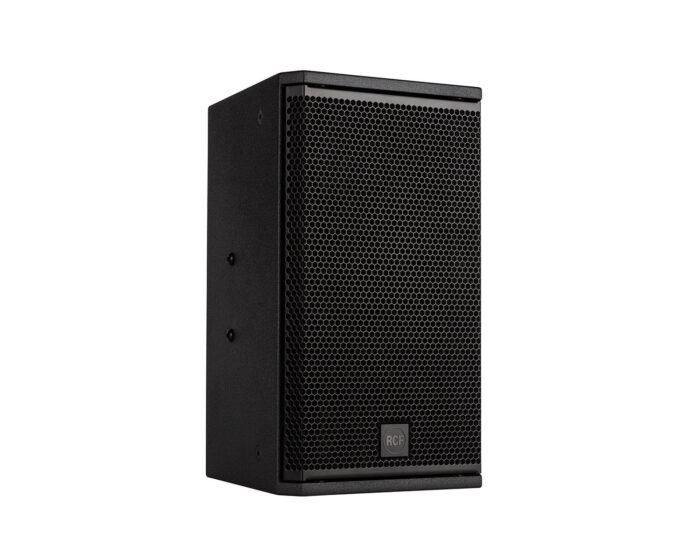

X MAX 10 10″ 2-Way High-Powered Loudspeaker 700W Black

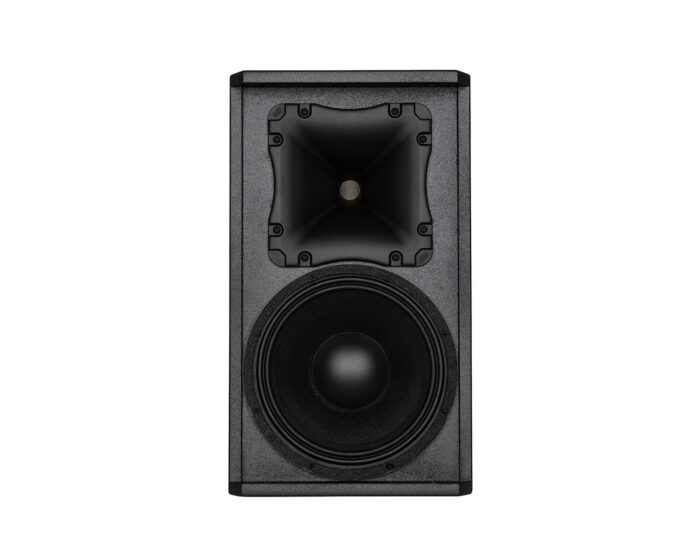

The full-range passive two-way speaker X-MAX 10 has been specifically designed as club systems for entertainment, to achieve the best nearfield quality, vocal coherence and a stable tonal balance even at high volume. The heavy-duty speaker cabinet is made of plywood coated with black textured acrylic paint. Featuring a 10” woofer with a 2.5” voice and a 1.0” compression driver with 1.4” voice coil. The LICC crossover design includes an electronic protection on high-frequency device. The rotatable 90°x70° horn allows installation either vertically or horizontally in any environment and architectural constraint.
Acoustical specifications
- Frequency Response (-10dB): 65 Hz ÷ 20000 Hz
- Max SPL @ 1m: 128 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 70°
- Directivity index Q: 11
- System Sensitivity: 97 dB
Power section
- Nominal Impedance: 8 ohm
- Power Handling: 350 W
- Peak Power Handling: 1400 W PEAK
- Recommended Amplifier: 700 W
- Protections: Dynamic active mosfet
- Crossover Frequencies: 1800 Hz
Transducers
- Compression Driver: 1 x 1.0”, 1.4” v.c
- Woofer: 10”, 2.5” v.c
Input/Output section

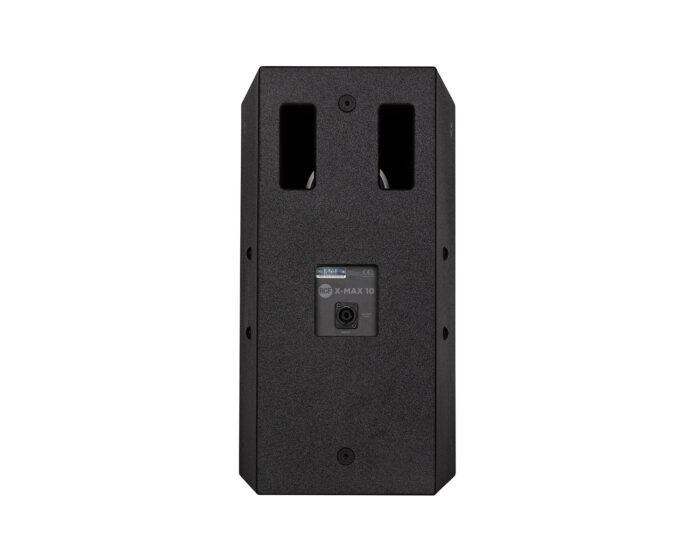

- Input connectors: Speakon
Standard compliance
- CE marking: Yes
Physical specifications
- Cabinet/Case Material: Plywood
- Hardware: 2 x M8, 16 x M10
- Grille: Steel with clothing
- Colour: Black
Physical & Dimensions
- Height: 510 mm / 20.08 inches
- Width: 295 mm / 11.61 inches
- Depth: 325 mm / 12.8 inches
- Weight: 17 kg / 37.48 lbs
