Specifications:
PA Speaker
- Configuration Active 3-Way
- Total Power Capacity 1650 W RMS
Drivers
- LF Driver 3 x 12″ / 30.5 cm Woofer
- LF Voice Coil 3″ / 7.6 cm
- Magnet LF:Neodymium
Performance
- Frequency Response 35 Hz to 400 Hz -3 dB
- Maximum SPL 139 dB
- Input Sensitivity +4 dBu
- Protections RMS, Thermal

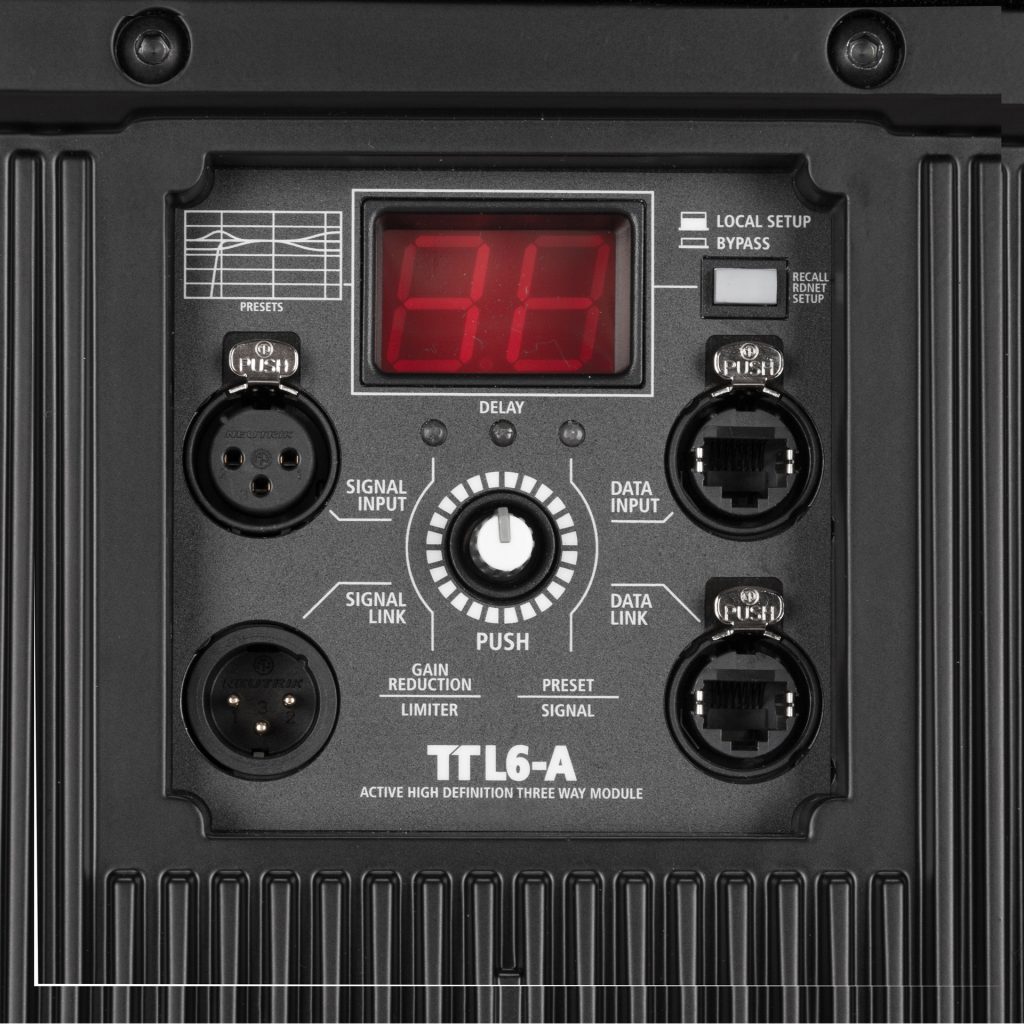

Connectivity
- Audio I/O 1 x XLR Input
- 1 x XLR Output
- Network I/O 1 x etherCON (RDNet) Input
- 1 x etherCON (RDNet) Output
Signal Processing
- EQ Yes
- Dynamic Processing Fast Limiter
- Alignment Delay Yes
- Phase Adjustment Yes
Power
- AC Power Connector 1 x powerCON Input
- 1 x powerCON Output
- Physical

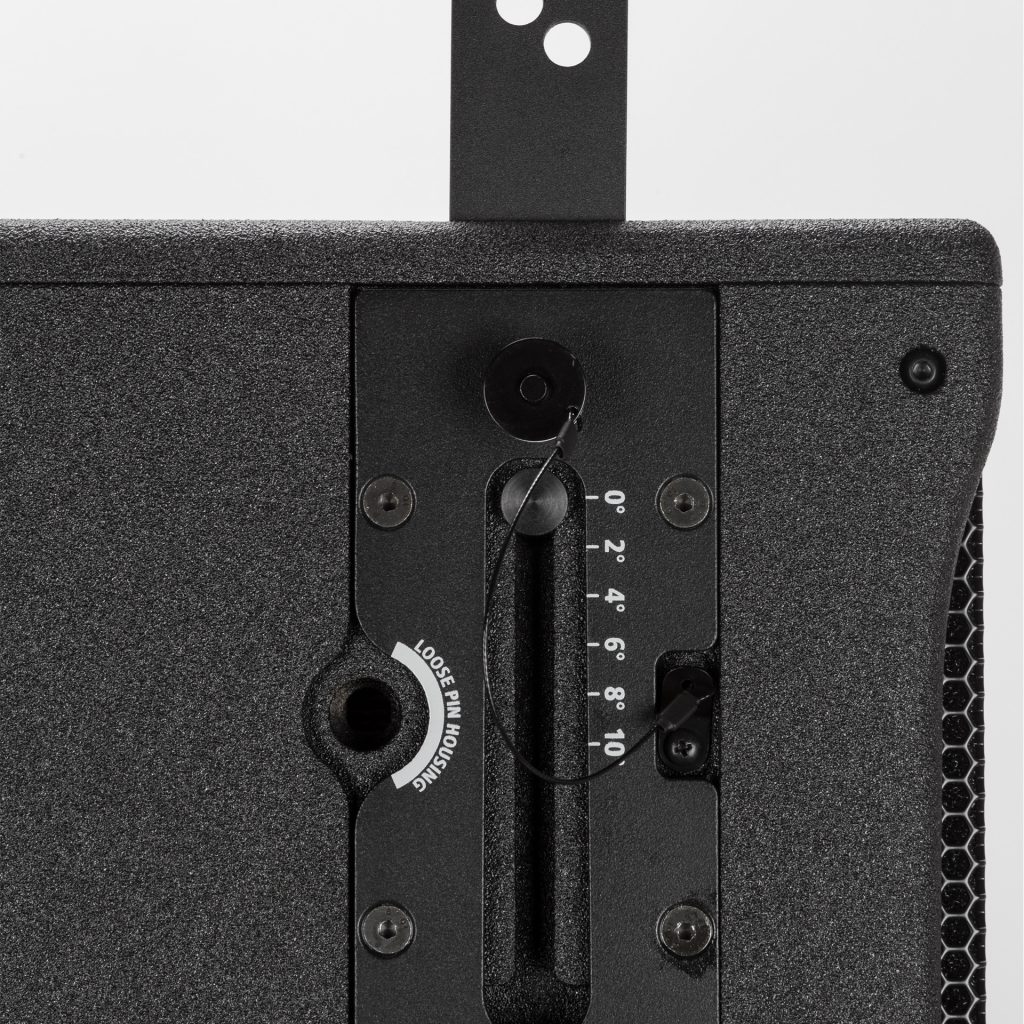

- Mounting Fly Point

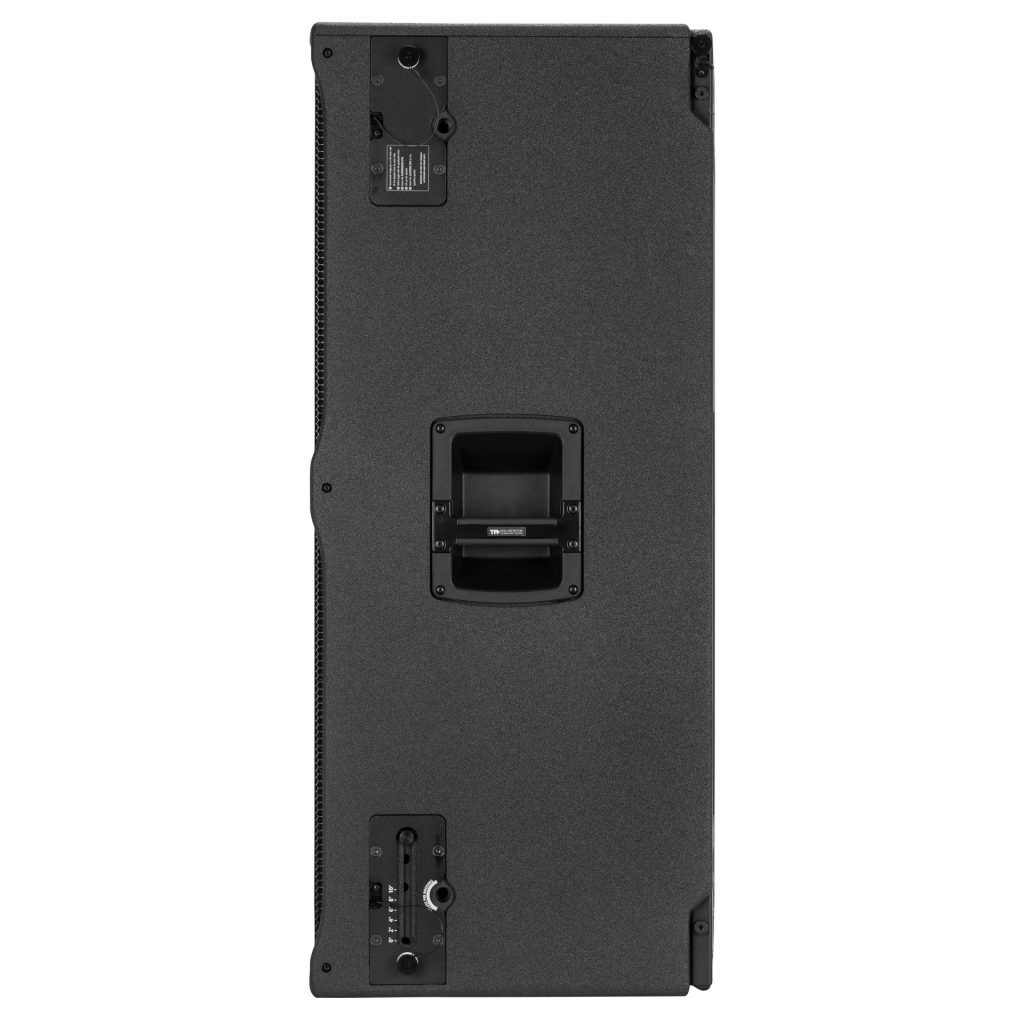

- Handles 2 x Side
- 1 x Top
- 1 x Bottom
Cooling Forced Convection
- Construction Material Metal Grille, Plywood
- Dimensions 43.3 x 14.9 x 18.4″ / cm
- Weight 99.2 lb / 45 kg
