- Compact installation within speaker’s input panel

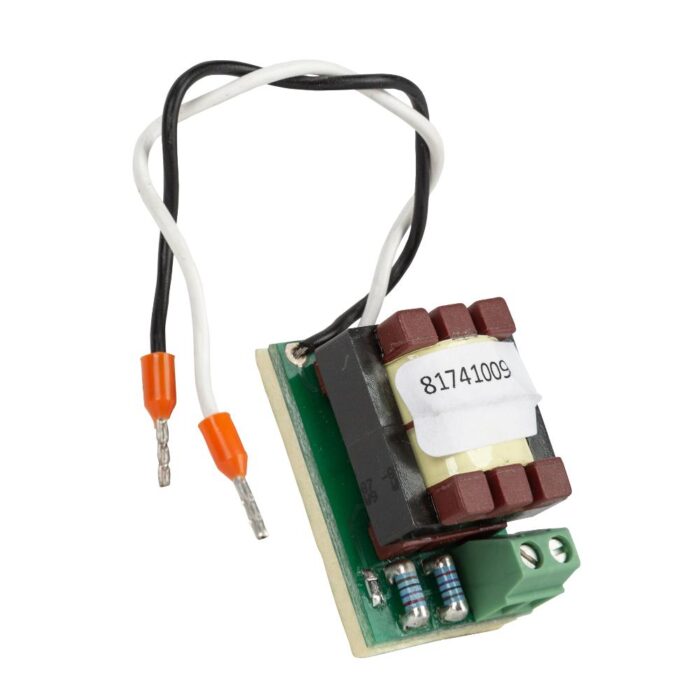

TA 1000 is an accessory that consists of a small printed circuit board with a transformer that allows the connection of a 100 V line (amplifier output) directly to the aux audio input (0 dBu) of an active speaker.
SPECIFICATIONS
GENERAL SPECIFICATIONS-
Input voltage: 100 V – 70 V
Output voltage: 0.1 ÷ 1 V
Frequency response: 40 Hz ÷ 16000 Hz (± 1 dB)
Input connection: Screw terminals
Output: 0 dBu with settled black-white cable (10 cm) with section 2 x 0.25 mm²
Mounting: Double-coated, open-cell urethane foam tape, thickness 3.2 mm
Compatilbe models: VSA 850, VSA 1250, VSA 2050
SIZE-
Weight: 0.05 kg / 0.11 lbs
SHIPPING INFORMATIONS-
Package Height: 75 mm / 2.95 inches
Package Width: 140 mm / 5.51 inches
Package Depth: 70 mm / 2.76 inches
Package Weight: 0.8 kg / 1.76 lbs
