- 1400 Watt Class-D Amplifier
- 12” Woofer, bass reflex housing
- Stereo Crossover
- Switchable Crossover Frequencies
- Polarity-reverse switch
- Electronic equalization, soft limiter and protection
- Stereo XLR input, Stereo XLR signal output
- Bass Motion Control excursion management

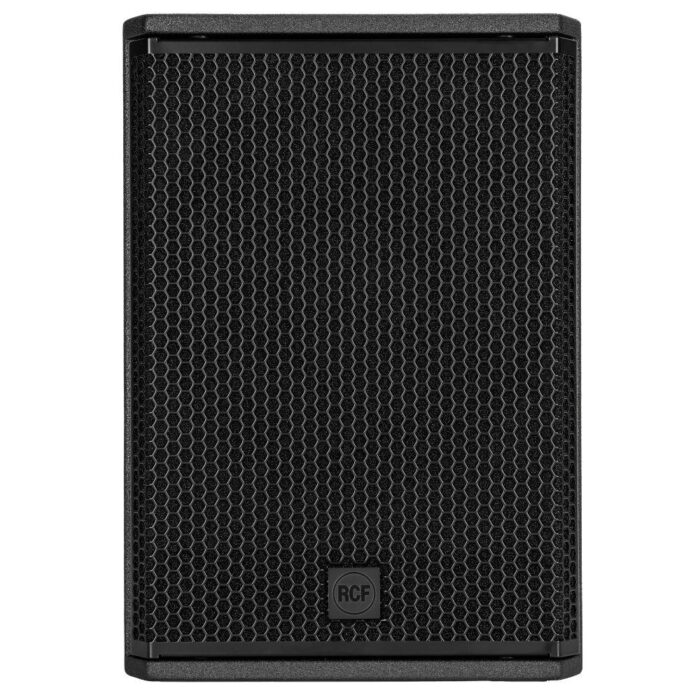

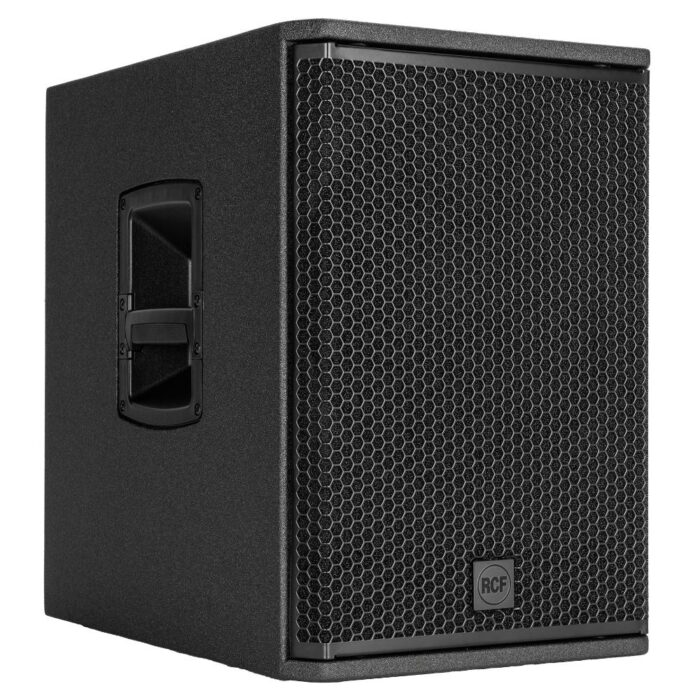

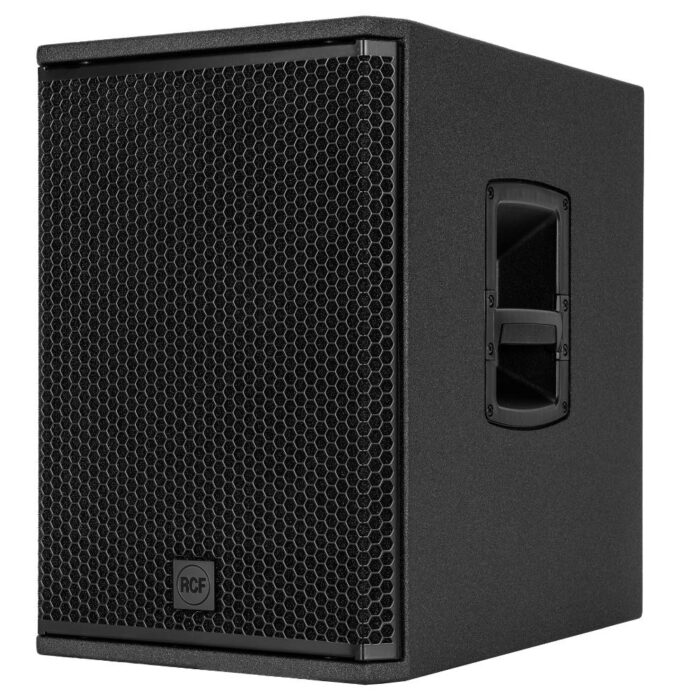

The SUB 702-AS mk3 is a portable 12″ high-power active subwoofer for live sound applications. It features a state-of-the-art transducer with a high-power ceramic magnetic circuit and a powerful Class-D amplifier that delivers sound pressure levels up to 129 dB with exceptional headroom. Designed as the ideal complement for 8″ or 10″ loudspeakers, it provides outstanding performance in any application. Rear panel controls include volume, EQ, polarity, and crossover frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 702-AS MK3 is perfect for small to mid-sized venues and portable applications.
TECHNICAL SPECIFICATIONS
Acoustical specifications Frequency Response: 40 Hz ÷ 120 Hz
Max SPL @ 1m: 129 dB
Transducers Woofer: 12”, 2.5” v.c
Input/Output section Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor section Hi-Pass Frequencies: 110 Hz
Low-Pass Frequencies: 80 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter

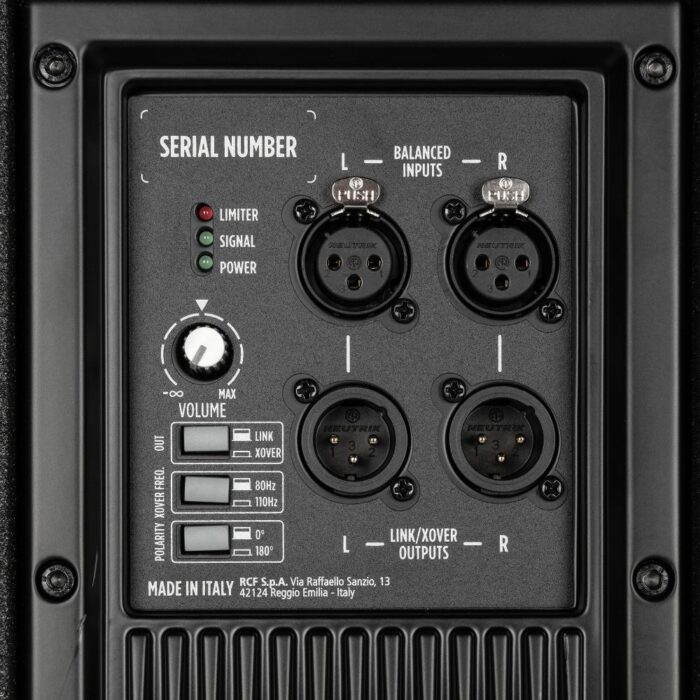

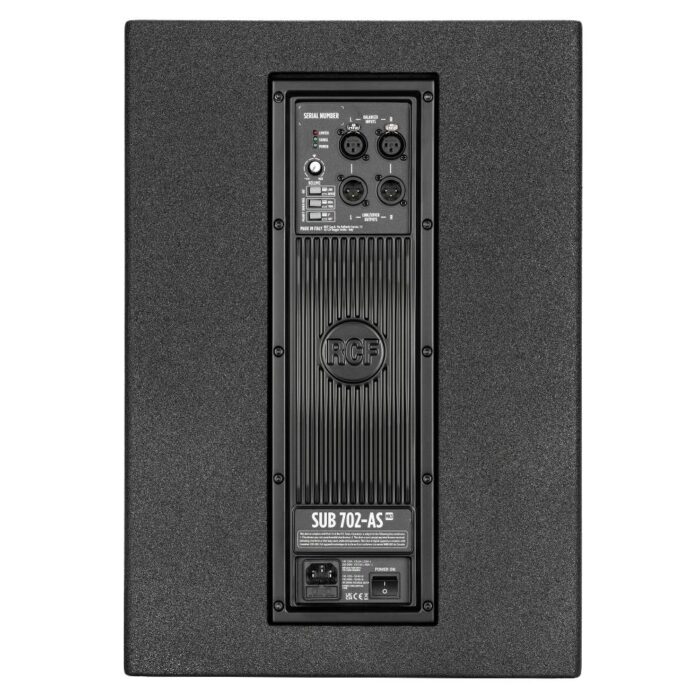

Controls: Volume, EQ, Phase, Xover
Power section Total Power: 1400 W Peak, 700 W RMS
Low frequencies: 1400 W Peak, 700 W RMS
Cooling: Convection
Connections: VDE
Standard compliance Safety agency: CE compliant
Physical specifications Cabinet/Case Material: Baltic birch plywood

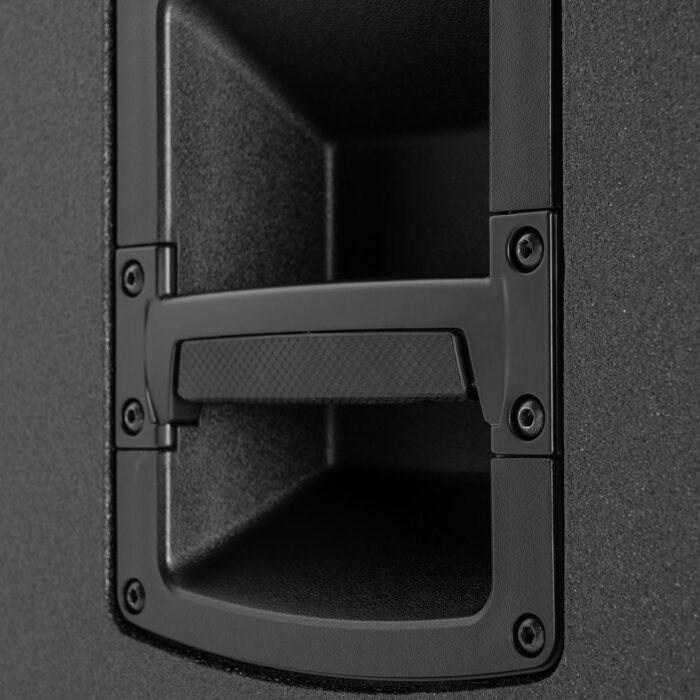

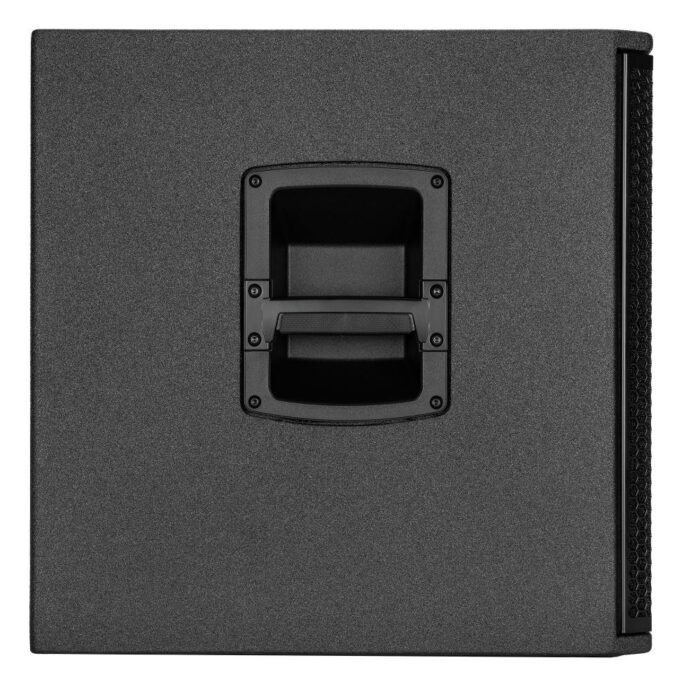

Handles: One each side

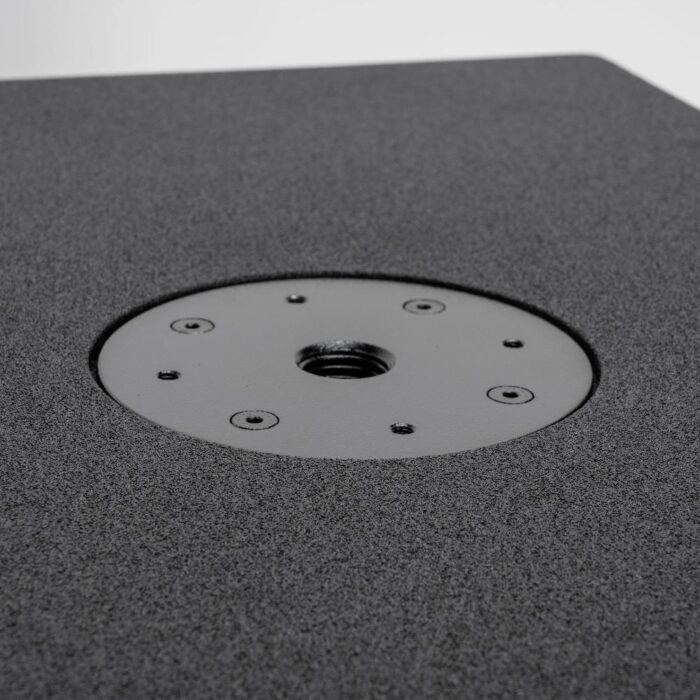

Pole mount/Cap: Yes
Grille: Steel with clothing
Color: Black
Size Height: 523 mm / 20.59 inches
Width: 360 mm / 14.17 inches
Depth: 515 mm / 20.28 inches
Weight: 21 kg / 46.3 lbs
Shipping information Package Height: 565 mm / 22.24 inches
Package Width: 575 mm / 22.64 inches
Package Depth: 420 mm / 16.54 inches
Package Weight: 25 kg / 55.12 lbs
