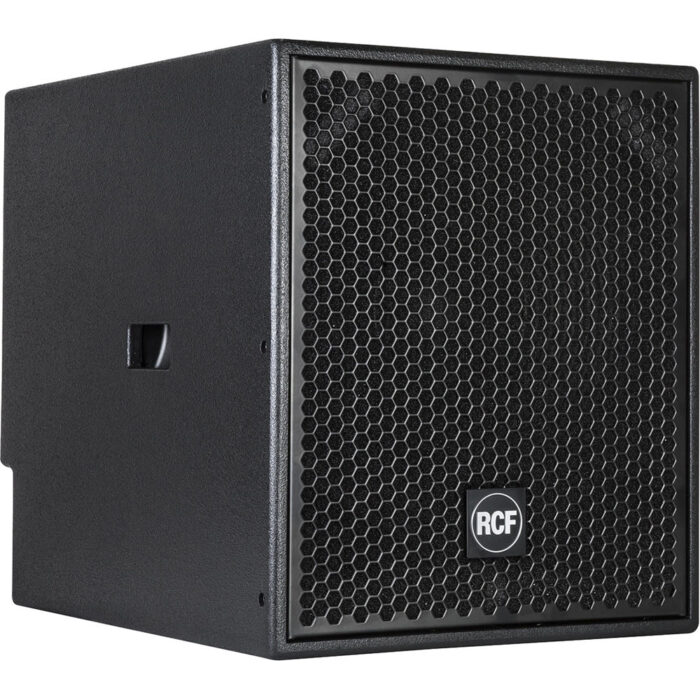

The S8015 II High-Efficiency Subwoofer from RCF is a compact, high-output, bass-reflex subwoofer. The system is equipped with a hyper-vented 15″ RCF precision woofer. It features a massive ceramic magnet and high excursion 4″ copper voice coil. The cabinet is designed to achieve tight and maximized output. The system is able to produce a max SPL of 133 dB and handles 1000 W AES.The loudspeaker enclosure shape is rectangular, and the cabinet is constructed from multi-ply Baltic birch plywood that is finished with resistant and textured polyurethane black paint. It features a M20 pole-mount receptacle, rubber feet, and two recessed handles. The front steel grille is epoxy powder coated.
15″ RCF precision, 4″ voice-coil woofer with Inside/Outside coil technology
Rectangular box enclosure with protective metal grille
35 mm standard pole mount in top section of cabinet
Baltic birch cabinet painted with black, heavy duty, textured epoxy
Integrated hand carry points
| Frequency Response | 35 – 200 Hz @ -10 dB |
| Maximum Sound Pressure Level (SPL) | 133 dB |
| Sensitivity | 98 dB |
| Nominal Impedance | 8 ohms |
| Power Handling | RMS: 1000 W Peak: 4000 W |
| Recommended Amplifier Power | 2000 W |
| Woofer | 15″ neodymium Voice coil: 4″ |
| Power Rating | 1000 W AES |
| Sensitivity | 98 dB |
| Input/Output Connectors | Speakon NL4 |
| Material | 15 mm birch plywood construction |
| Hardware | M20, Recessed side handles |
| Handles | 2 |
| Grille | Custom perforated steel grille |
| Dimensions | 20.7 x 17.3 x 24.2″ (525 x 440 x 615 mm) |
| Weight | 75 lb (34 kg) |
