The P3115-T features a selectable line transformer for 70 – 100 Volt applications
P 3115T
WEATHERPROOF COAXIAL TWO WAY SPEAKER
- 15″ high-output LF transducer with 2.5″ voice coil
- RCF Precision 1″ Compression Driver with 1.5″ voice coil
- Active Mosfet Compression Driver Protection

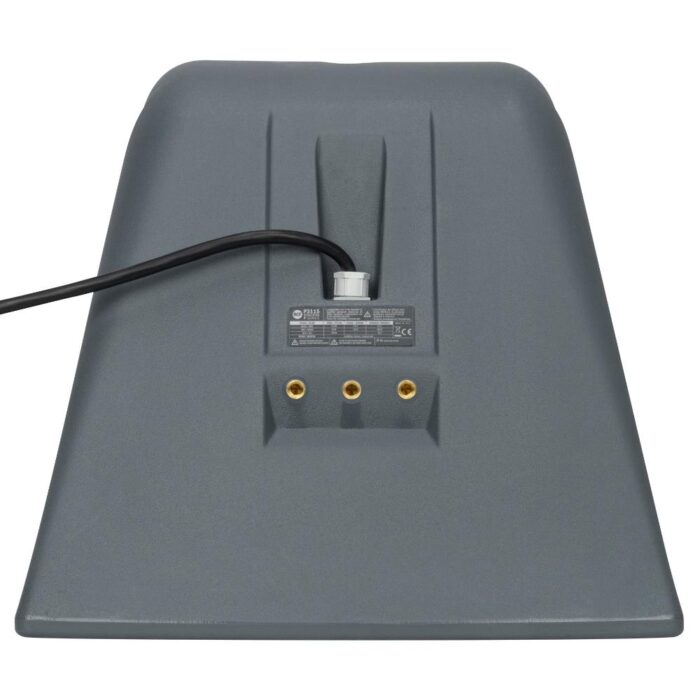

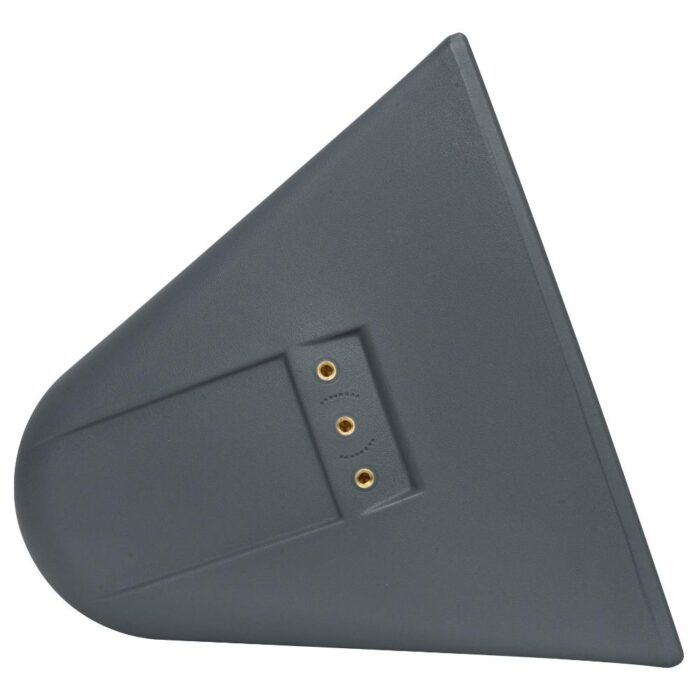

- 12 brass suspension points (M10)

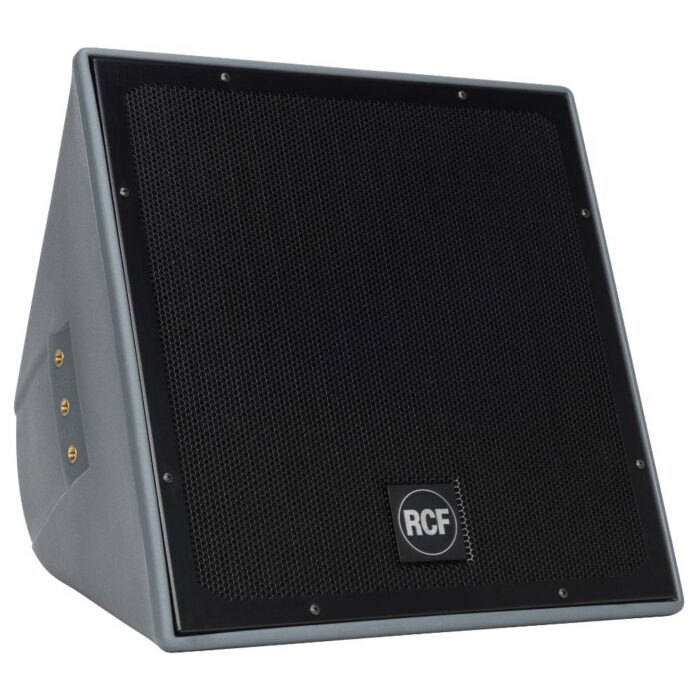

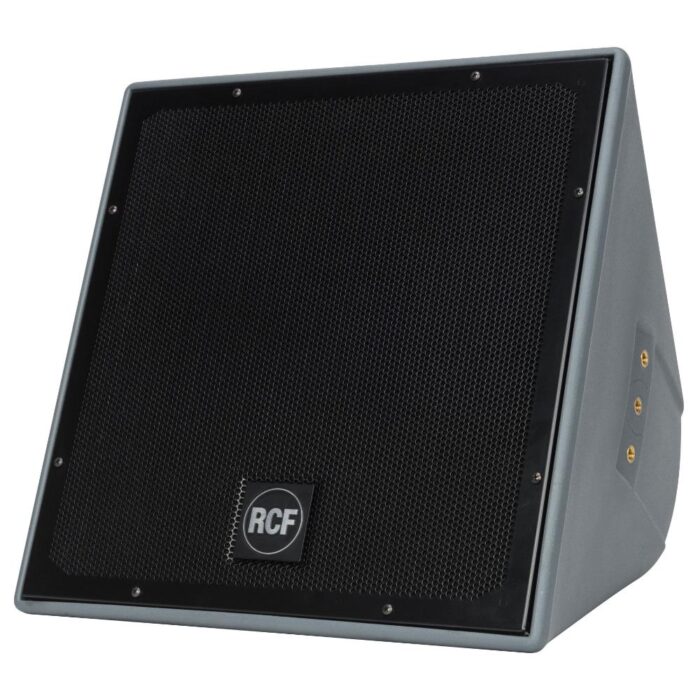

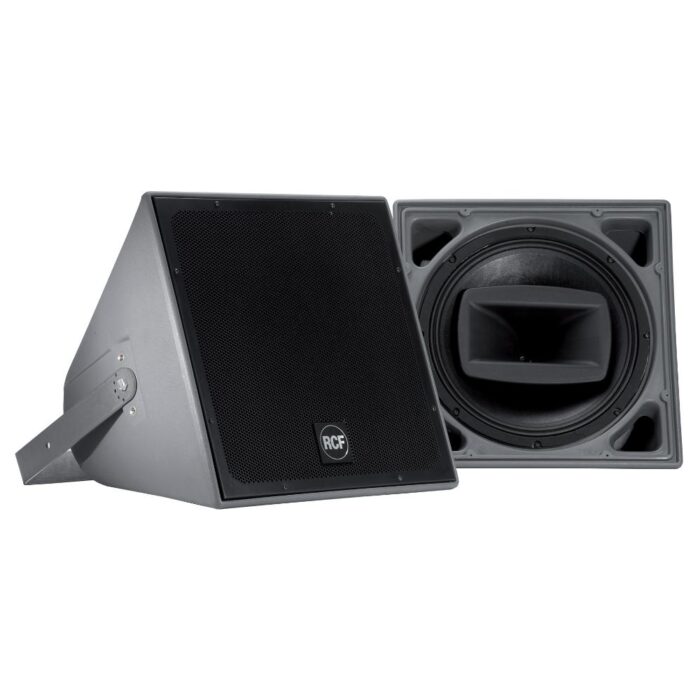

The P3115-T is a weatherproof full range, wide-dispersion, coaxial two way loudspeaker system offering substantial power and efficiency for a variety of professional indoor or outdoor applications.

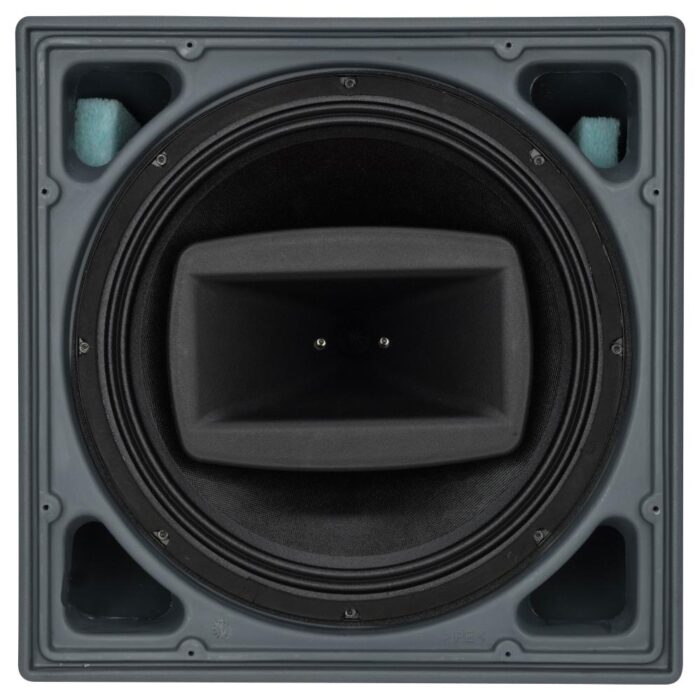

The high-frequency section is a constant directivity CMD horn loaded to a 1″ RCF Precision compression driver with a 1.5″ diaphragm assembly for smooth, wide dispersion. The low-frequency transducer is a 15″ woofer with a 2.5″ voice coil..
FEATURES

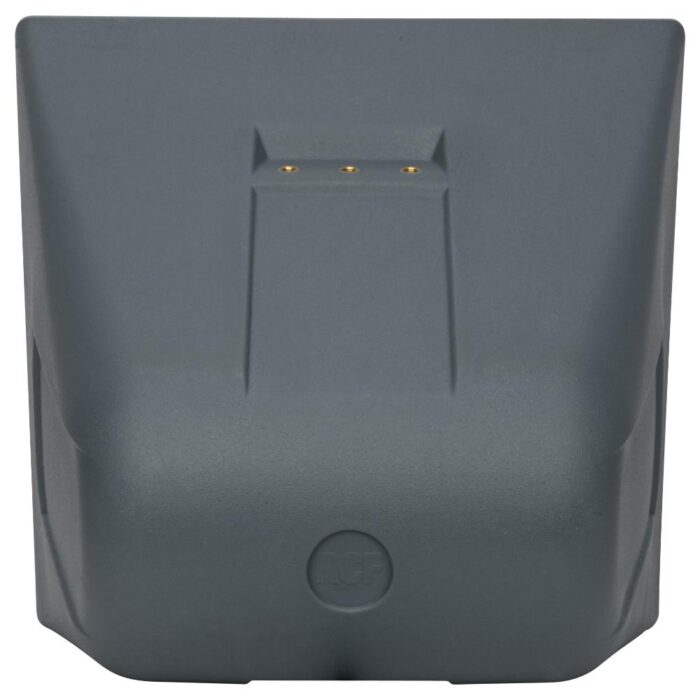

- Cabinet is a single piece rotational moulded in medium density polyethylene, fully UV protected and waterproof IP 55

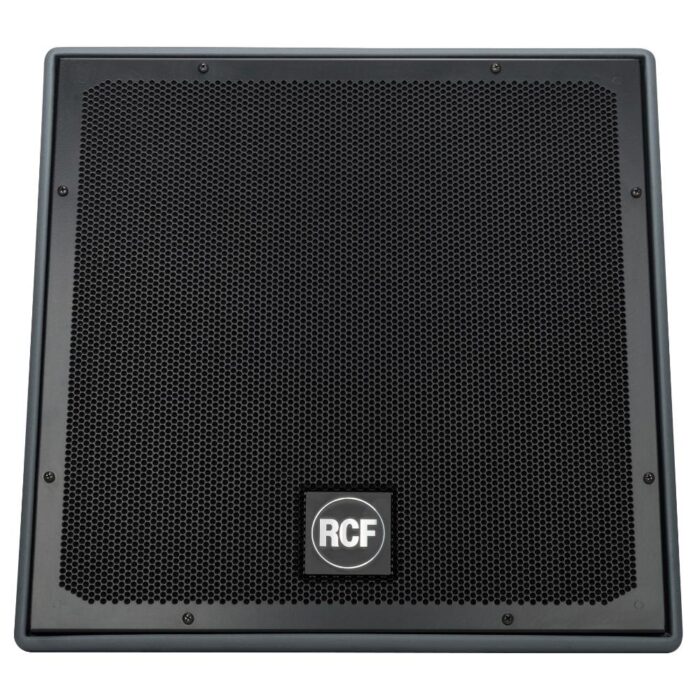

- Front grille in custom perforated aluminium with open-cell fibres and water repellent woven fabric backing

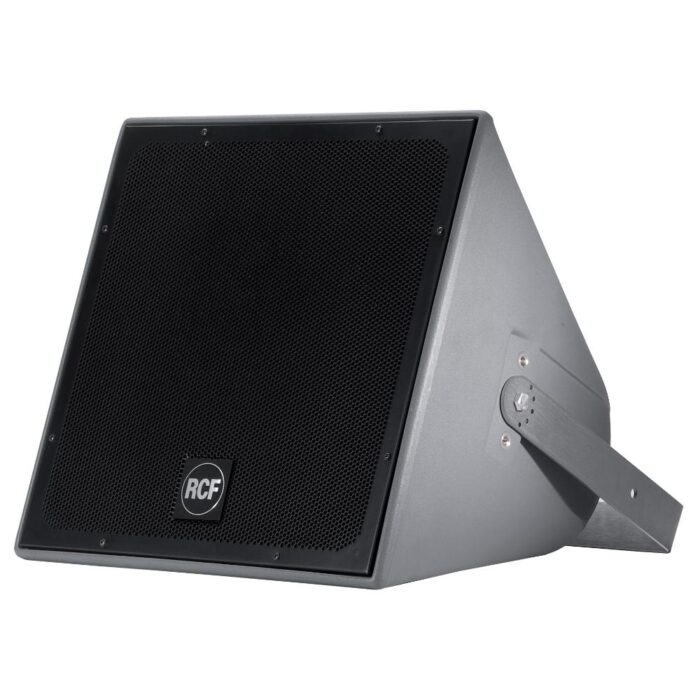

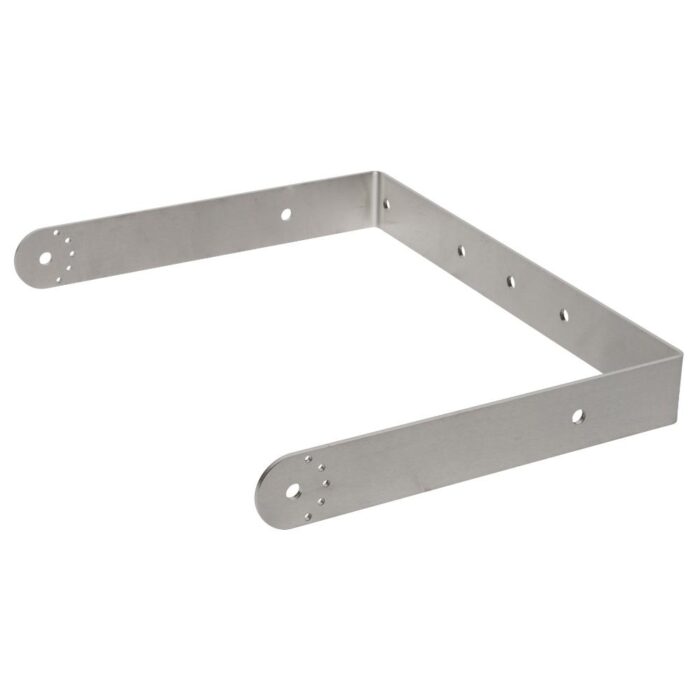

- Stainless steel bracket
- 15″ high-output LF transducer with 2″ voice coil
- RCF Precision Neo 1″ Compression Driver with 1.5″ voice coil
- 90° x 60° constant directivity horn
- 10° X 20° enclosure sides for array configurations
- Active Mosfet Compression Driver Protection
- 12 brass suspension points (M10)
- Line transformer
- ACOUSTICAL SPECIFICATIONS
- Frequency Response -10 dB:75 Hz ÷ 20 kHz
- Max SPL @ 1m:123 dB
- Horizontal coverage angle:90°
- Vertical coverage angle:60°
- Directivity index; Q:13.3
- System Sensitivity:98 dB
- Nominal Impedance:16 O
- Power Handling:300 W
- Peak Power Handling:1200 W
- Protections:dinamyc
- Crossover frequencies:1300 Hz
- TRANSDUCERS
- Compression Driver:1″ HF driver, 1.5″ voice coil
- Nominal Impedance:8 O
- Input Power Rating:25 W AES
- Sensitivity:108 dB
- Woofer:15″ woofer, 2.5″ voice coil
- Nominal Impedance:16 O
- Input Power Rating:250 W AES
- Sensitivity:98 dB
- INPUT SECTION
- Input connector:4-adriges Neopren Kabel, 5m
- Constant voltage transformer:70/100 V
- Power Selection:70V/60W, 30W , 100V/120W, 60W
- CABINET
- Cabinet Material:Polyethylene rotomoulded
- Hardware:12 x M10 inserts+ U-brackets and pair of spacers
- Grille:Custom perforated aluminium grillewith open-cell fiber and water repellent woven fabric backing
- Colour:grey
- PHYSICAL SPECIFICATIONS
- Height:463 / 18.22 mm/inch
- Width:463 / 18.22 mm/inch
- Depth:433 / 17.04 mm/inch
- Net Weight:19.4 / 42.76 kg/lbs
- APPLICATIONS
- Outdoor Sound Reinforcement in medium and large spaces
- Very High-Level AV Playback
- Flown cluster configurations
- Large speech systems
- Music Sound Reinforcement
P 3115-T meets the requirements of IP 55 code (International Protection Rating).
