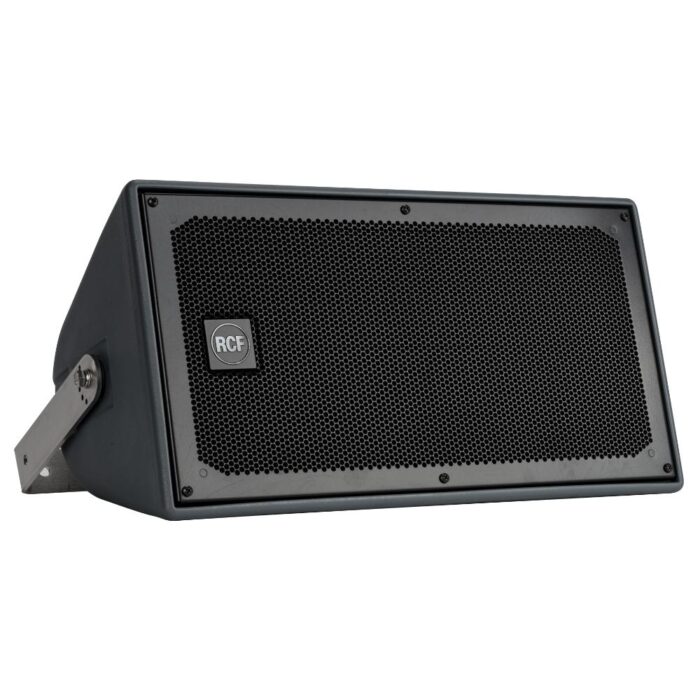

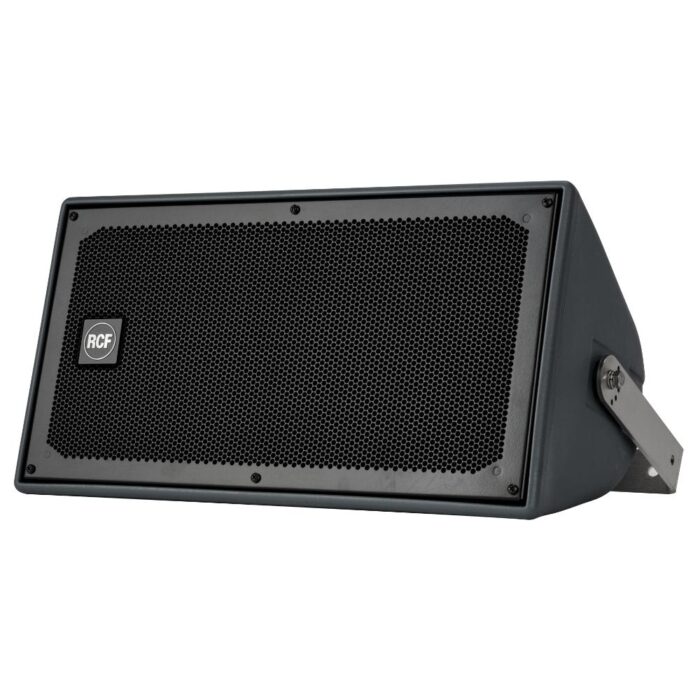

RCF’s 8″ 300W Weatherproof 2-Way Speaker System is a weatherproof, full-range, wide-dispersion, coaxial two-way loudspeaker system offering substantial power and efficiency for a variety of professional indoor or outdoor applications.

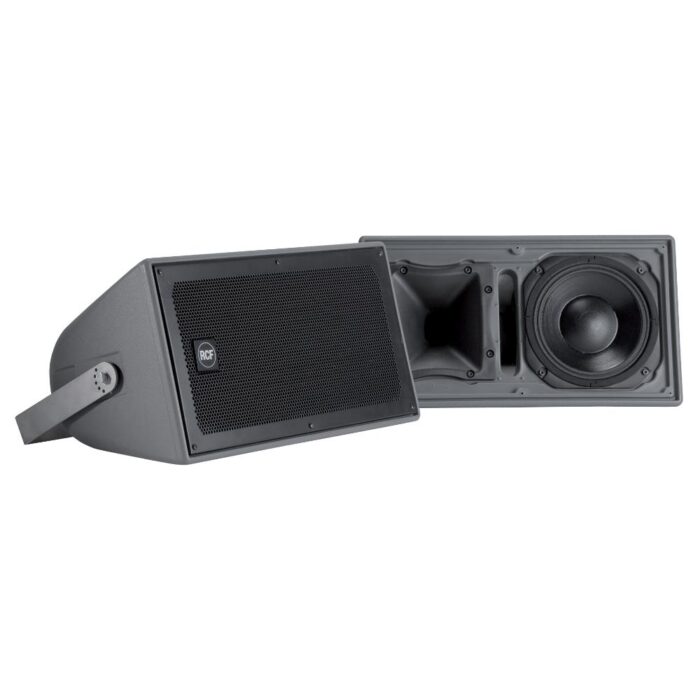

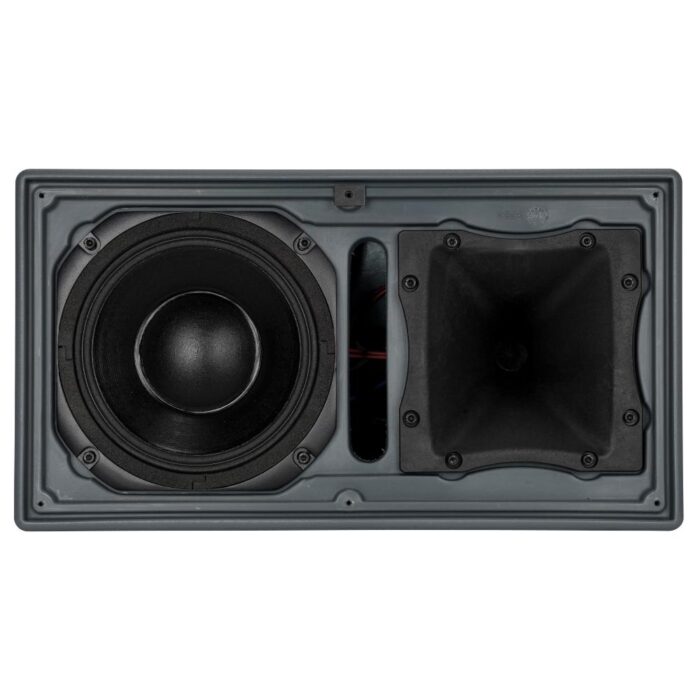

The high-frequency section is a constant directivity CMD horn loaded with a 1″ RCF precision compression driver with a 1.5″ diaphragm assembly for smooth, wide dispersion. The low-frequency transducer is an 8″ woofer with a 2.5″ voice coil. The cabinet is a single piece rotational molded in medium density polyethylene and is fully UV protected.

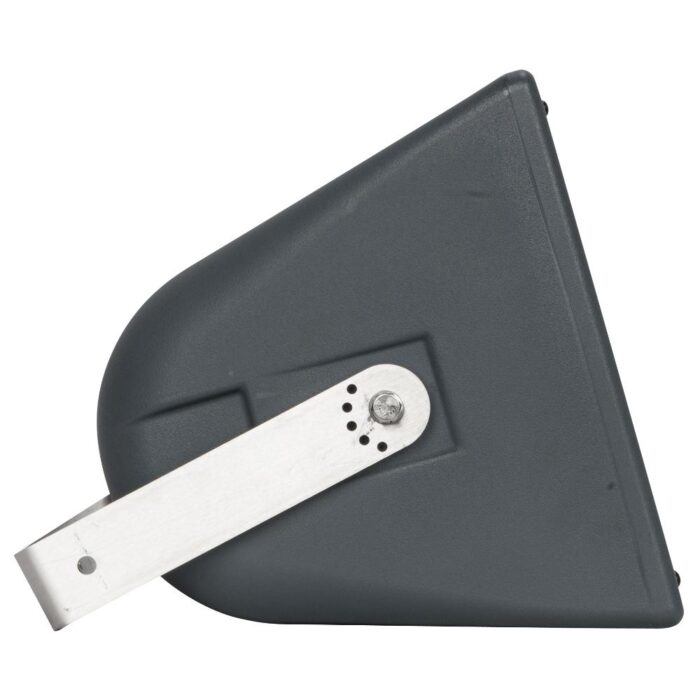

The cabinet is equipped with 4 x M 8 brass inserts, a stainless steel U-Bracket. The front logo is in aluminum and rotatable.

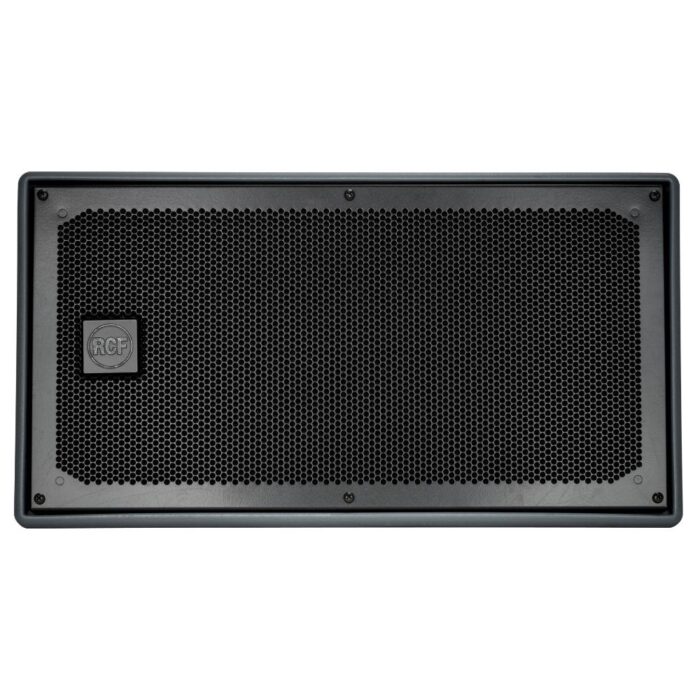

The grille is in custom perforated aluminum with open-cell fibers and water-repellent woven fabric backing. The system meets the requirements of IP55 code.
- Weatherproof cabinet IP 55
- Aluminum grille
- One 8″ high-output LF transducer with 2.5″ voice coil
- One RCF precision 1″ compression driver with 1.5″ voice coil
- 60×90° constant directivity horn
- Built in passive crossover
- 2×15° enclosure sides for array configurations
- Active Mosfet Compression Driver Protection
- 4 brass suspension points (M8)

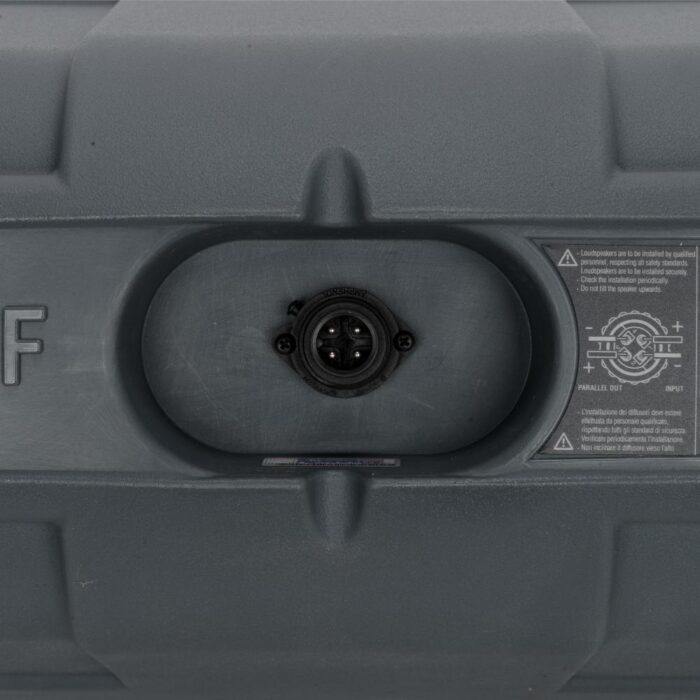

- Input connector 4 pole Amphenol IP 67
- Mounting hardware 304 stainless steel, highly resistant to corrosion and oxidation
Specs:
RCF P3108 Specifications
- System: Frequency Range (-10 db): 80 Hz – 20 kHz
- System: Frequency Range (-3 db): 100 Hz – 20 kHz
- System: Horizontal coverage angle(-6 db): 90deg.
- System: Vertical coverage angle (-6 db): 60deg.
- System: Directivity factor; Q: 11
- System: Sensitivity: 94 dB, 1W at 1m
- System: Rated maximum spl: 125 dB, at 1m
- System: Nominal impedance: 8 Ohms
- System: Input power rating rms: 300 W
- System: Input power rating peak: 1200 W
- System: Recommended amplifier: 600 W
- System: HF protection: Dynamic
- System: Crossover: 1.8 kHz
- Transducers: Low frequency
- Woofer: 8″ (203.2mm) woofer with 2.5″ (63.5mm) coil
- Driver: 1″(25.4mm) throat, 1.5″ (38.1mm) coil diaphragm assembly
- Transducers: Nominal impedance
- Woofer: 8 Ohms
- Compression Driver: 8 Ohms
- Transducers: Input power rating
- Woofer: 300 W AES; 1200 W Peak
- Compression Driver: 25 W AES; 100 W Peak
- Transducers: Sensitivity
- Woofer: 95 dB, 1W at 1m
- Compression Driver: 109 dB, 1W at 1m
- Applications
- Outdoor Sound Reinforcement in small and medium spaces
- Sound Reinforcement in outdoor and indoor applications
- High-Level AV Playback- AV Playback
- Flown cluster configurations
- Large speech systems
- Music Sound Reinforcement
- Voice and Music reproduction
- Enclosure: Trapezoidal, 2deg. Horizontal side angles, 15deg. Vertical side angle, 8mm Polyethylene roto-molded
- Rigging inserts: 4x M8 + U-Bracket and Pair of spacers
- Grille: Custom perforated aluminum grille with open-cell fiber and water repellent woven fabric backing
- Input connectors: 4 pole Amphenol
- Dimensions (H x W x D): 19.41 x 10.47 x 16.23″ / 493.01 x 265.94 x 412.24mm
- Weight: 22lbs / 9.98kg
