- Up to 131 dB Sound Pressure Level
- 2100W Class-D bi-amplification
- 45-20000 Hz linear frequency response
- 1.75″ Compression Driver
- 15″ Woofer
- FiRPHASE zero degrees phase technology
- Bass Motion Control woofer excursion management
- 70ºx100º Constant Directivity Coverage Angle
- Perfectly tailored for horizontal or vertical deployment

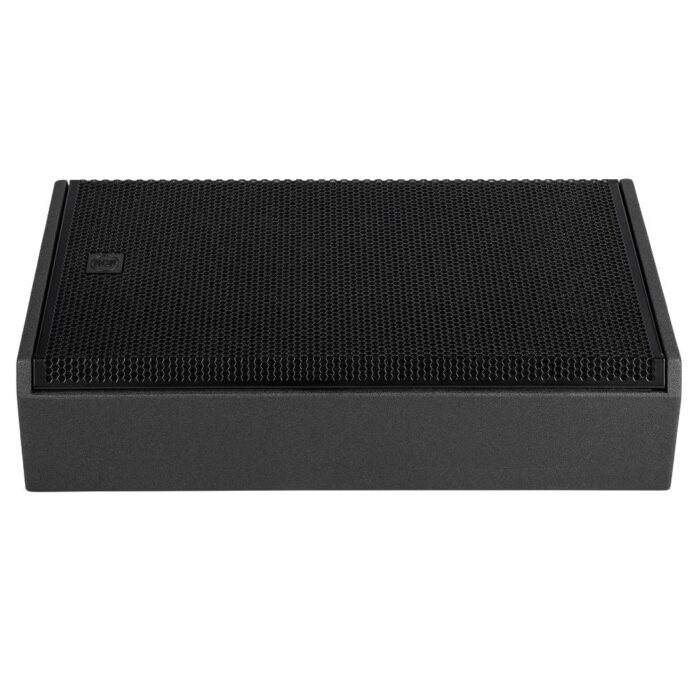

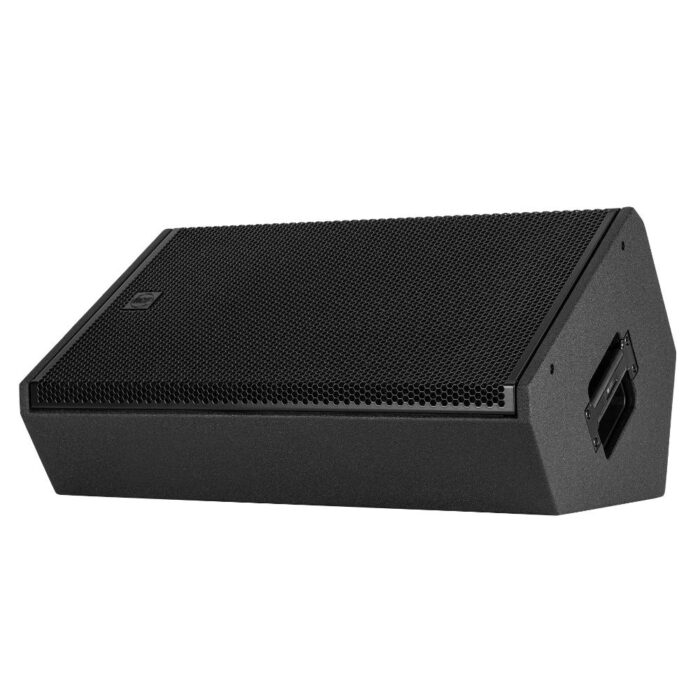

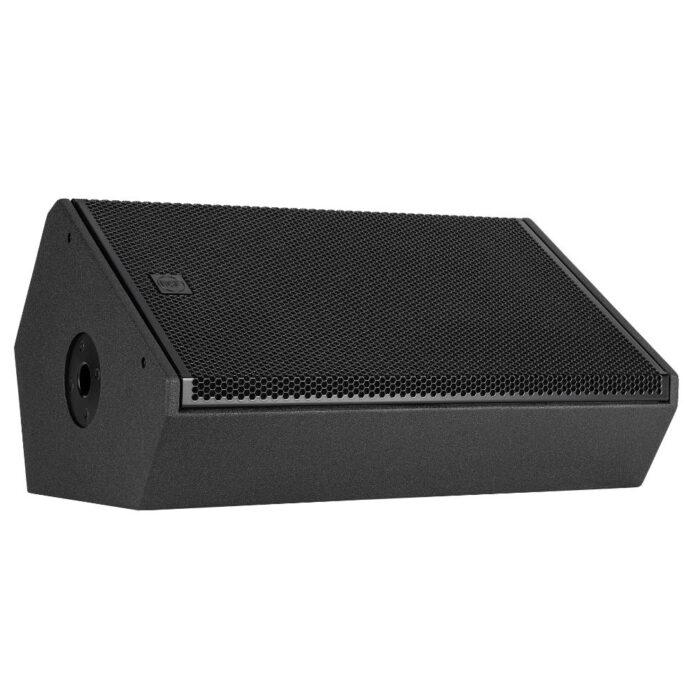

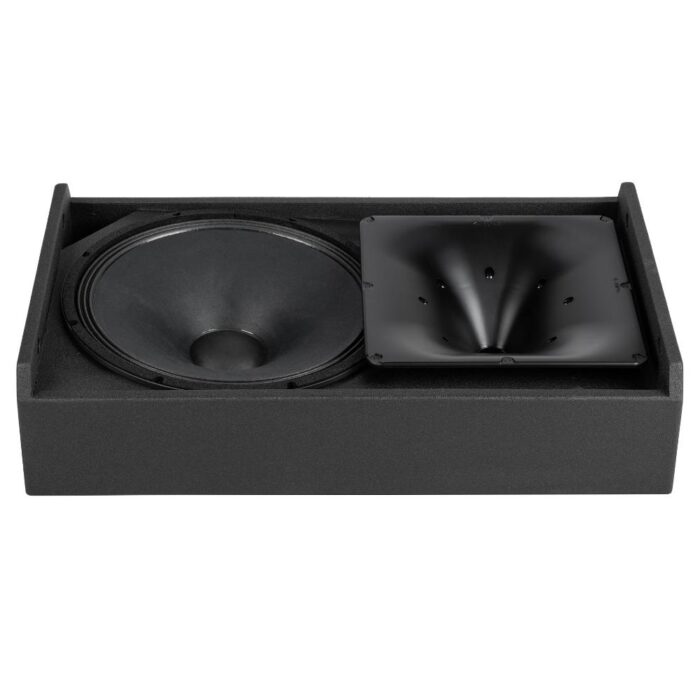

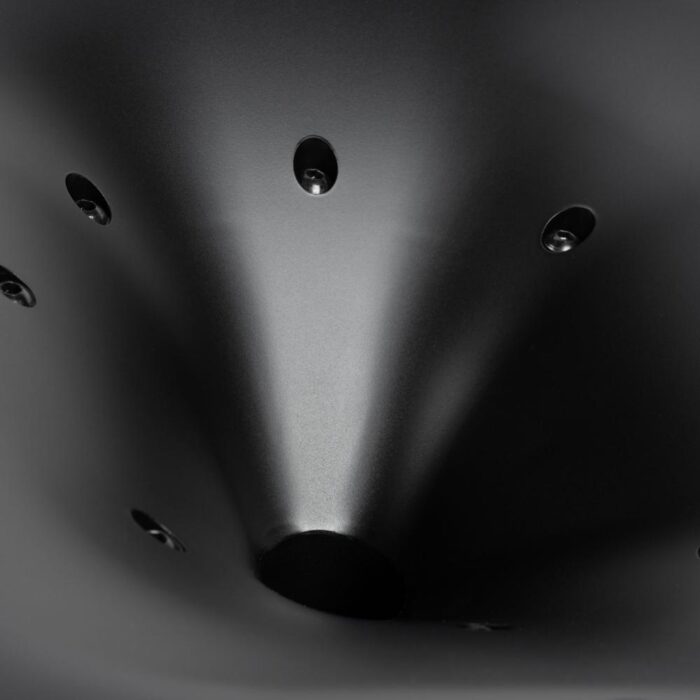

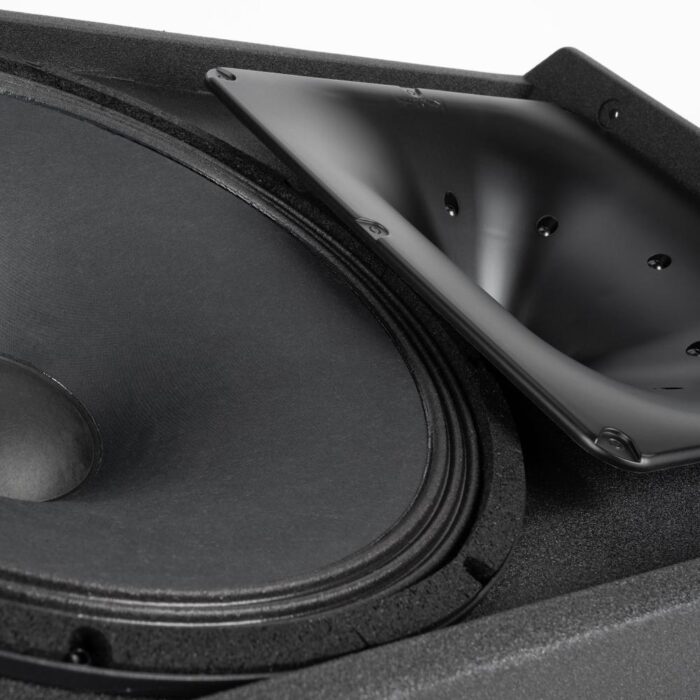

NX 915-SMA speaker is a stage monitor designed for sound providers, musicians, bands, and DJs. The combination of a 1.75” compression driver, 15” woofer, two-channel 2,100W amplifier, and the TRW waveguide produces coherent 100° x 70° coverage for the listening area with up to 131dB SPL of distortion-free sound. Used as a stage monitor, stand-alone speaker system, or satellite paired with a subwoofer, the NX 915-SMA blends high performance and reliability in a compact package. Combining RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 915-SMA Series speakers deliver absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and set up on stage or on a pole.
TECHNICAL SPECIFICATIONS
Acoustical specifications Frequency Response: 45 Hz ÷ 20000 Hz
Max SPL @ 1m: 131 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 70°
Transducers Compression Driver: 1 x 1.0”, 1.75” v.c
Woofer: 15”, 2.5” v.c

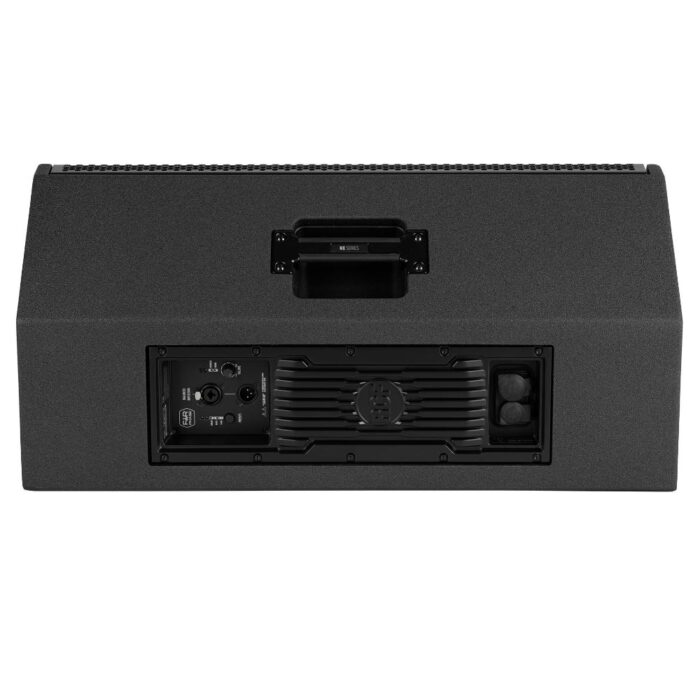

Input/Output section Input signal: bal/unbal
Input connectors: Combo XLR/Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor section Crossover Frequencies: 1600 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Power section Total Power: 2100 W Peak
High frequencies: 700 W Peak
Low frequencies: 1400 W Peak
Cooling: Convection
Connections: Powercon TRUE1 TOP IN/OUT
Standard compliance Safety agency: CE compliant
Physical specifications Cabinet/Case Material: Plywood

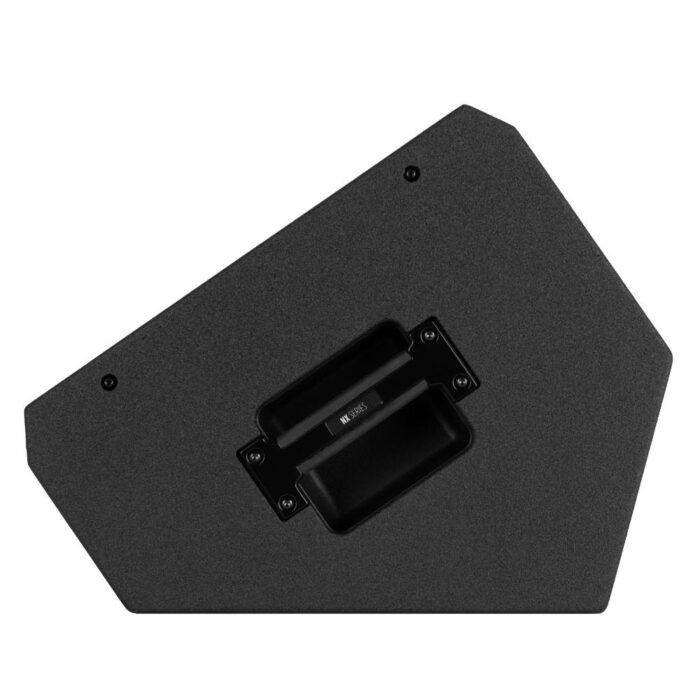

Handles: 1 on side and 1 on top

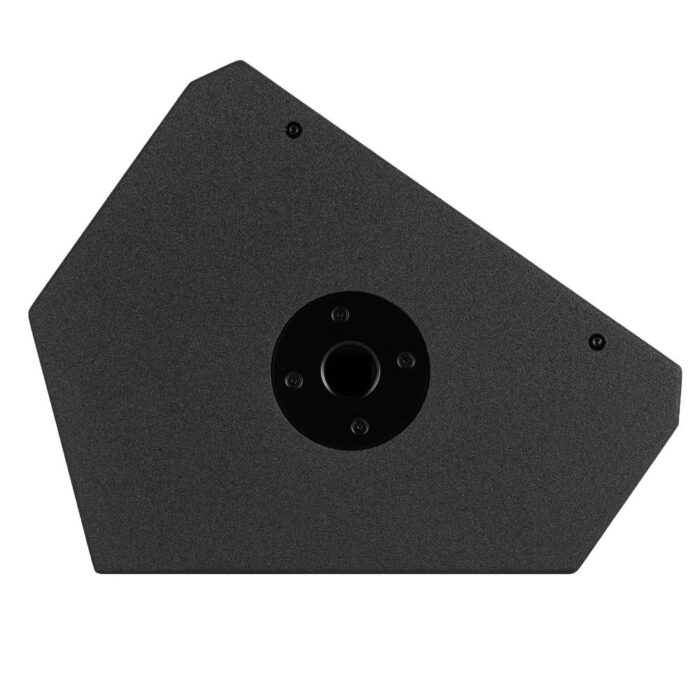

Pole mount/Cap: Yes
Grille: Steel
Color: Black
Size Height: 357.3 mm / 14.07 inches
Width: 705 mm / 27.76 inches
Depth: 456.6 mm / 17.98 inches
Weight: 17.3 kg / 38.14 lbs
Shipping information Package Height: 745 mm / 29.33 inches
Package Width: 505 mm / 19.88 inches
Package Depth: 425 mm / 16.73 inches
Package Weight: 20 kg / 44.09 lbs
