- Three-way long-range stadium loudspeaker
- Rated power: 1000W (LF) + 900W (MF-HF) AES
- Maximum sound pressure: 145 dB
- Frequency response (-10 dB): 43 – 18,000 Hz
- Opening angle: 45°x15°
- Equipped with RCF neodymium drivers
- Bi-amp operation with passive filter between mids and highs
- Symmetrical horn design
- Hull – Baltic birch plywood plus steel grating
- Weather protection

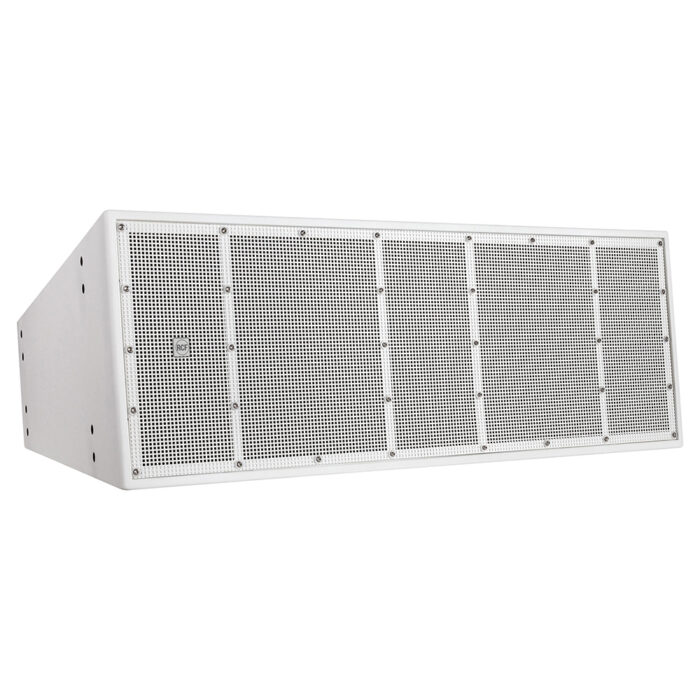

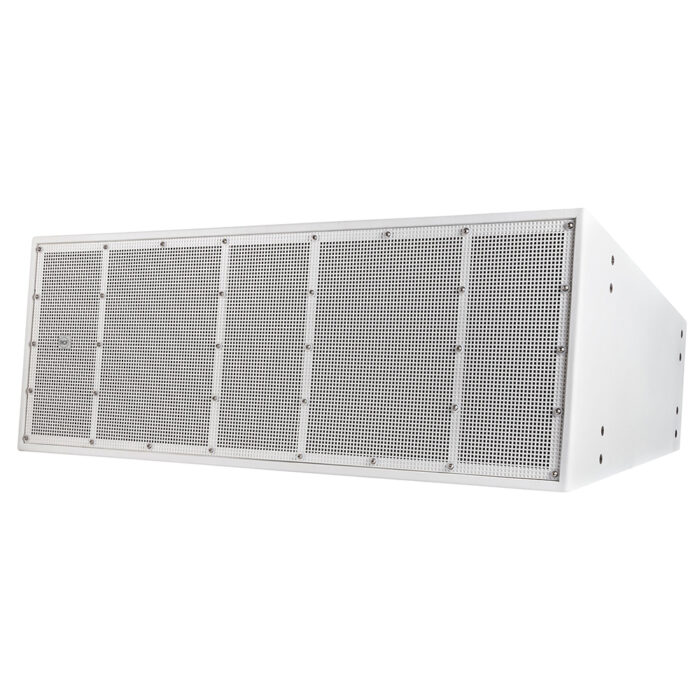

Three-way stadium speaker system for long-distance sound transmission. Equipped with two 15″ woofers, two 10″ midrange drivers and two 4″ titanium dome compression tweeters with voice coils. Bi-amp capable. In HVL 15-P The latest generation of precision RCF speakers with neodymium magnets are used. The system delivers a maximum SPL of 145dB (in bi-amp mode) delivering 1000W RMS in the bass section and 900W RMS in the midrange and treble. Crossover and equalization between the midrange and tweeters is supported by a built-in passive filter. The opening angle is 45° x 15° (D x V). The connectors are made in the form of a terminal block, durable and resistant to weathering. Made from Baltic birch plywood body painted with waterproof polyurethane paint. The grille is made of heavy-duty powder-coated steel with a water-repellent fabric backing.
THROWS SOUND OVER LONG DISTANCES
Designed for sounding large structures, the HVL series loudspeakers are able to provide truly high-quality sound in arenas and stadiums. The series includes point sources and loudspeakers for assembly in clusters, as well as subwoofers. HVL loudspeakers are designed based on in-house components: drivers, horns and waveguides. The cabinet design with coplanar woofers and horns provides a symmetrical sound field that allows you to create serious sound pressure in stadiums while maintaining sound intelligibility and uniformity of coverage.
PRECISION SPEAKERS
RCF has vast experience in the design and manufacture of loudspeakers. The company has been doing this since the 1960s. Therefore, RCF loudspeakers have a competitive advantage: R&D engineers can select a driver from the wide range of RCFs produced, modify it for the needs of a particular speaker, and, if necessary, develop a new one.
Emitters HVL 15-L:
– two 15″ woofers, 3.5″ voice coil with internal and external winding, double centering washer, hyperventilation, neodymium magnet.
– Two 10″ midrange drivers, 3″ voice coil, one-piece cone design for improved speaker performance.
– two 4″ titanium dome neodymium compression drivers, specially designed waveguide, copper inductor.
4-WAY WAVEGUIDE
Specially designed for the HVL series, the 4-way waveguide provides an accurate radiation pattern and provides a linear wavefront in the HF region.
PROFITABLE INVESTMENT
Using the HVL range reduces the commissioning time of any large facility and lowers the installation budget. The compact size of loudspeakers compared to the developed SPL, various patterns of directivity, the ability to assemble into clusters make these systems a profitable investment for stadiums. By using HVL, you can achieve uniform quality coverage with fewer speakers and therefore fewer amplifiers. Installation costs will also be reduced. HVL cabinets are designed for outdoor installation. They are made of Baltic birch plywood and protected with a special polyurethane coating. The connectors are made in the form of a weatherproof terminal block. The protective grille is made of heavy-duty, powder-coated steel, with a water-repellent fabric backing behind it.
DEVELOPMENT OF INDIVIDUAL SOLUTIONS
The HVL range was custom-made by an integrator from the USA, who did not fit the standard loudspeakers from the RCF catalog to solve the stadium sound problem . R&D engineers quickly developed and the factory produced loudspeakers with the characteristics that the customer needed. The result was so good that RCF decided to offer the HVL range to their other partners and users. These models are custom: the company does not keep a stock of them and the production time is slightly longer than the standard one.
If your project requires special loudspeakers, amplifiers or DSPs, or requires a custom suspension system for existing models, or has any other special requirements such as RAL coloring, please contact us and we will discuss with the manufacturer the fulfillment of your request.
System type | 3-way passive loudspeaker |
Frequency response (-10 dB) | 43 – 18,000 Hz |
Frequency response (-3 dB) | 59 – 13,000 Hz |
Maximum sound pressure at 1 m | 145 dB |
Horizontal opening angle | 45° |
Vertical opening angle | 15° |
Sensitivity | 111 dB |
Rated power | 1900 watts RMS |
Peak power | 7600 W |
Program power | 3800 W |
Protection | Dynamic active (mosfet transistor) |
Crossover Frequency | 1800 Hz |
HF compression driver | 2×1.4” neodymium with 4.0” voice coil; nominal impedance 16 ohms, nominal input power 280 W AES, program power 560 W, sensitivity 110 dB (1 W at 1 m) |
SC-dynamics | 2×10” neodymium with 3.0” voice coil; nominal impedance 8 Ohm; nominal input power 500W AES, program power 1000W; sensitivity 112 dB (1 W at 1 m) |
woofer | 2×15” neodymium with 3.5” voice coil; nominal impedance 8 Ohm; nominal input power 500W AES, program power 1000W; sensitivity 97 dB (1 W at 1 m) |

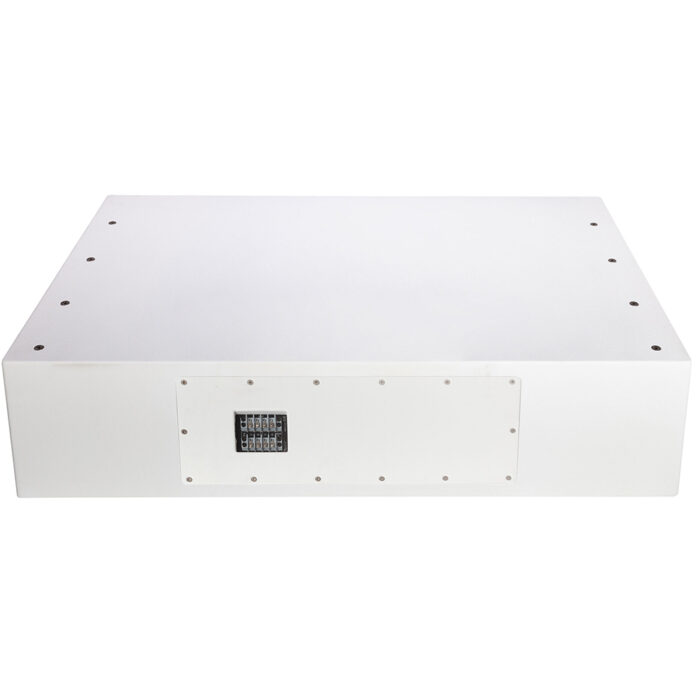

Inputs / outputs | Terminal block |
Case color | White |

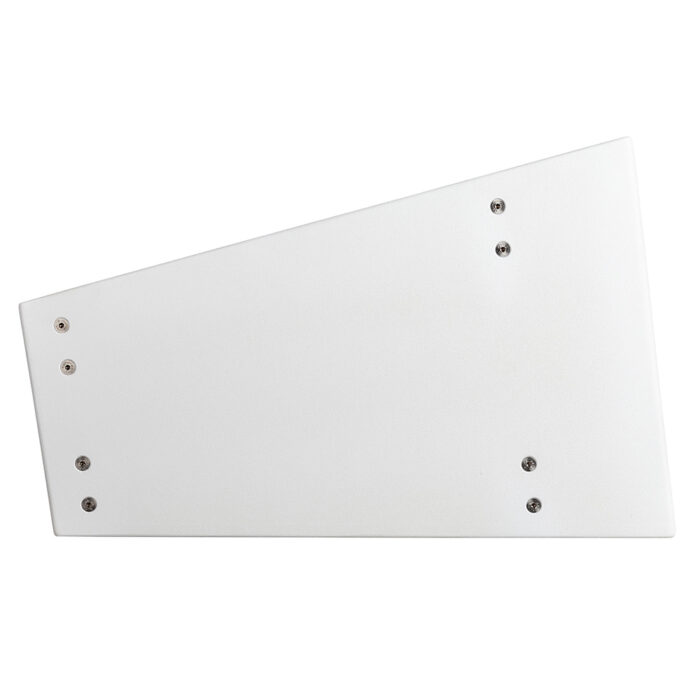

Mounting options | Threaded bushings for hanging: 8 pieces M20 on each of the side walls, on the top and on the bottom of the cabinet |

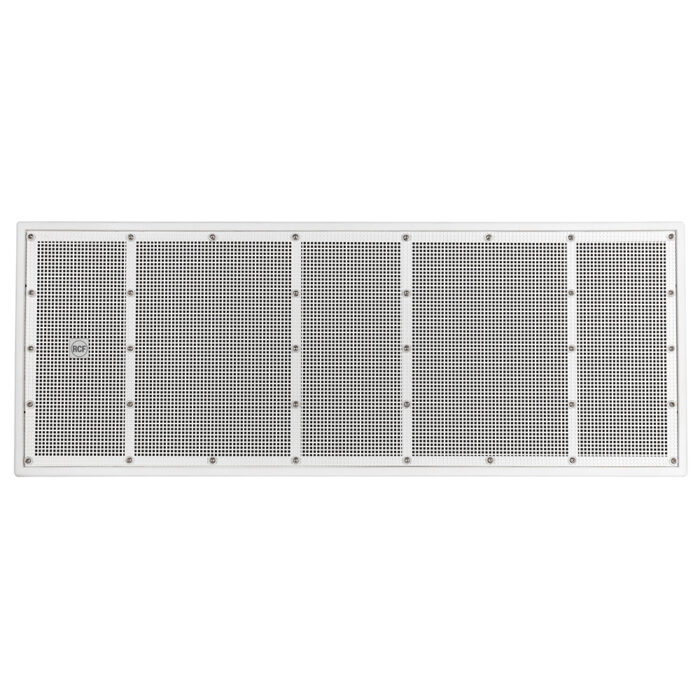

Protective grille | Steel |
Corpus material | Plywood (Baltic birch) |
Width | 1382 mm |
Depth | 815 mm |
Height | 525 mm |
The weight | 115 kg |
