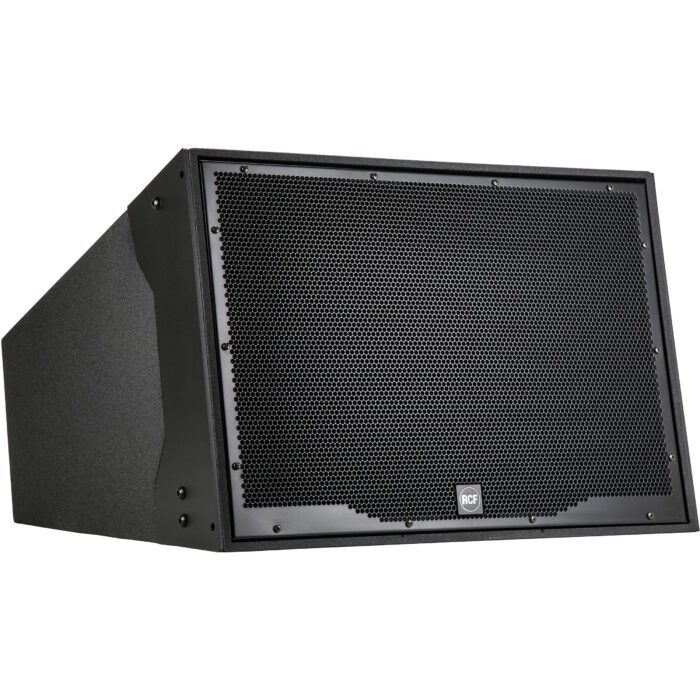

The HL 2240 Horn Loaded Two-Way Array from RCF is a horn loaded two-way full-range array system that incorporates a 2 x 12″ woofer and a 2″ exit 4″ voice coil titanium compression driver for mid distance and long throw applications. The system is compact and provides high-output and accurate voice & sound reproduction. The system is equipped with the latest generation of RCF precision transducers.
The system has a vertical dispersion of 22.5° and is ideally used in point source configuration for mid-distance applications, or can be clustered with narrower angles for long throw applications. The loudspeaker enclosure shape is trapezoidal and offers a 22.5° coupling angle each side. Connections to the amplifier are made through a watertight Amphenol multi-pole connector. The grille is in custom perforated steel, and is epoxy coated, with open-cell fibers and water-repellent woven fabric backing. The cabinet is constructed of multi-ply Baltic birch marine plywood and finished in a highly resistant, textured, polyurea black paint.
| Frequency Response | 60 Hz – 20 kHz @ -10 dB |
| Maximum Sound Pressure Level (SPL) | 141 dB @ 1m |
| Coverage Angle | Horizontal: 40° @ -6 dB Vertical: 22.5° @ -6 dB |
| Directivity Index | Q: 16 |
| Sensitivity | LF 104 dB HF 113 dB |
| Nominal Impedance | 8 ohms |
| Power Handling | 1500 W 6000 W, peak |
| Recommended Amplifier Power | 3000 W |
| Crossover Frequencies | 600 Hz |
| Compression Driver | 1.5″ 4″ voice coil |
| Nominal Impedance | 8 ohms |
| Power Rating | 150 W, AES |
| Sensitivity | 113 dB |
| Woofer | 2 x 12″ 3.5″ voice coil |
| Nominal Impedance | 8 ohms |
| Power Rating | 1350 W, AES |
| Sensitivity | 104 dB |
| Connector | Amphenol eco/mat IP 67 |
| Material | Trapezoidal, 15 mm birch plywood construction |
| Hardware | Side and rear array rigging point |
| Grille | Custom perforated steel grille |
| Dimensions | 20.9 x 30.4 x 25.0″ (53.0 x 77.1 x 63.5 cm) |
| Weight | 152 lb (69 kg) |
