- 2 x 160 W Class-D power amplifier
- 20 ÷ 20000 Hz frequency range
- Full on-board processing
- RCF speakers’ presets
- Proprietary bass enhancer algorithm
- FiRPHASE linear phase filters
- Flexible and scalable multi-room architecture
- Suitable for desktop or rack installation
- RDNet ready for networked management
-
2 X 160 W CLASS-D POWER AMPLIFIER
-
FULL ON-BOARD PROCESSING
-
FLEXIBLE AND SCALABLE MULTI-ROOM ARCHITECTURE
-
SUITABLE FOR DESKTOP OR RACK INSTALLATION
FULL ON-BOARD PROCESSING
Equipped with a powerful DSP platform, DMA units integrate RCF advanced proprietary technologies, conceived to optimize speaker performance:
● FiRPHASE – FiR filtering technology
● BASS ENHANCER, a sophisticated algorithm that increases low frequencies perception.
PROCESSING FEATURES
Processing features also include many other settings, such as low- pass filter, hi-pass filter, 8 PEQ, high shelf, limiter, and gain.
EASY AND FLEXIBLE CONFIGURATION
The configuration is a key point for the success of sound reinforcement systems: it’s easy and flexible for any kind of user, from the less to the more skilled one. DMA amplifiers offer different configuration levels, from user-friendly front panel control interface to RDNet, for large and complex systems.
SPEAKERS PRESETS
Processing functions are combined in a highly distinctive feature, SPEAKERS PRESETS, pre-loaded equalization packages optimizing the performance of any RCF speaker. Just select the speakers connected to the amplifier to automatically get the right RCF signature sound.
SCALABLE ARCHITECTURE
To fit with any installation need, DMA amplifiers have been designed with a highly scalable architecture and each device can distribute 4 audio channels to satellite units. This allows increasing installed power and creating a multi-room architecture. The connection can be done with just 1 CAT5e cable. Each satellite unit can be differently set using the DIP-SWITCH on the rear panel to receive the desired channels.
ROBUST AND ATTRACTIVE DESIGN
Thanks to their attractive design, extremely compact size and environmental robustness, DMA represent a junction point between professional and consumer markets.
RDNet4 READY
RDNet4 READYThe RCF RDNet software is the perfect tool to configure and manage DMA units in any venue. It helps to monitor and control all DSP settings and ensure the best system’s performance. RDNet is a secure and robust management tool for small, medium, and large size systems as well as complex and extended installations. Based on a proprietary network protocol RDNet, it provides straightforward monitoring and intuitive control of the RCF audio system down to every connected device/object.
TECNICAL SPECIFICATIONS
2 X 160 W @ 4 OHM OR 320 W @ 70 V (DMA 162)

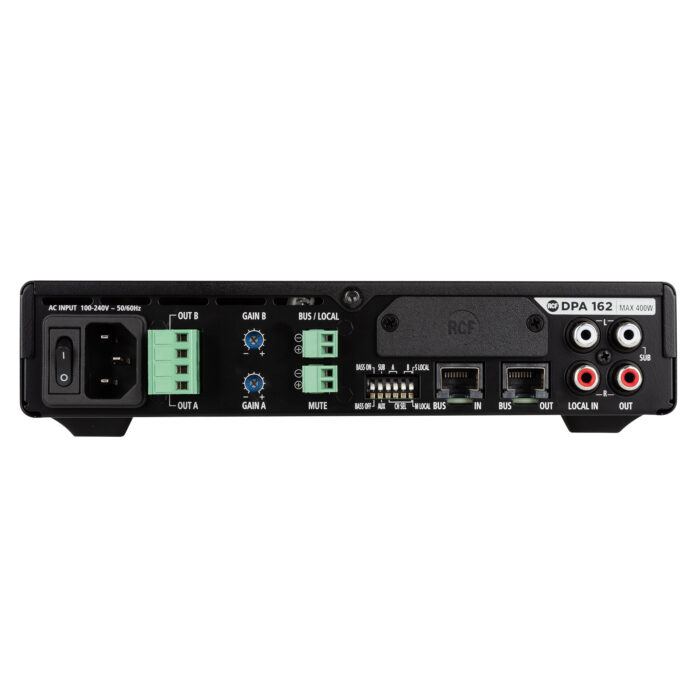

OUTPUTS (SIGNAL)
- 1 x STEREO LINE/SUB (RCA)
- 1 x 4 CHANNELS AUDIO BUS (RJ 45)
CONTROLS
- 1 x REMOTE MUTE CONTACT
- 2 x WALL MOUNT REMOTE CONTROLS
- 2 x WALL MOUNT REMOTE CONTROLS
- 1 x CTRL + FIRMWARE UPDATE USB PORT
INPUTS
- 2 x LINE STEREO( RCA)
(1 alternative to AUX IN on the front panel) - 1 x MIC/LINE balanced (removable terminal)
- 1 x PAGING (RJ 45)
