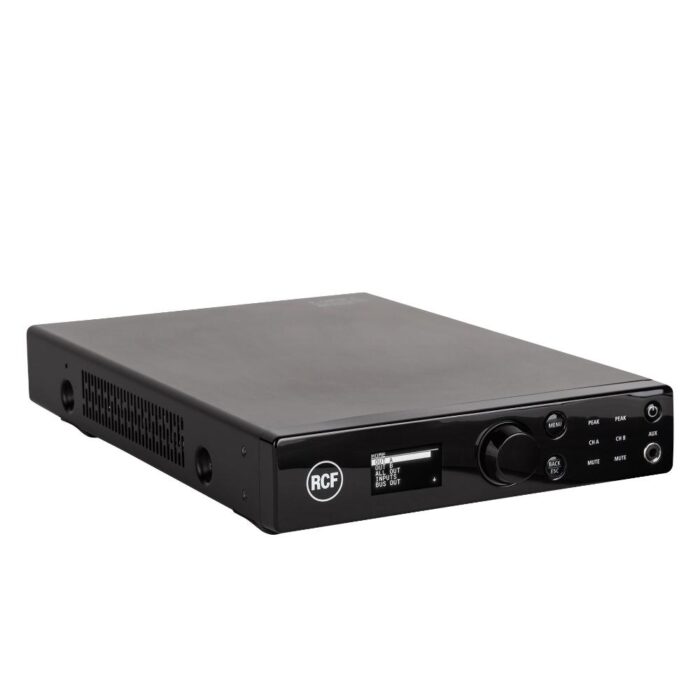

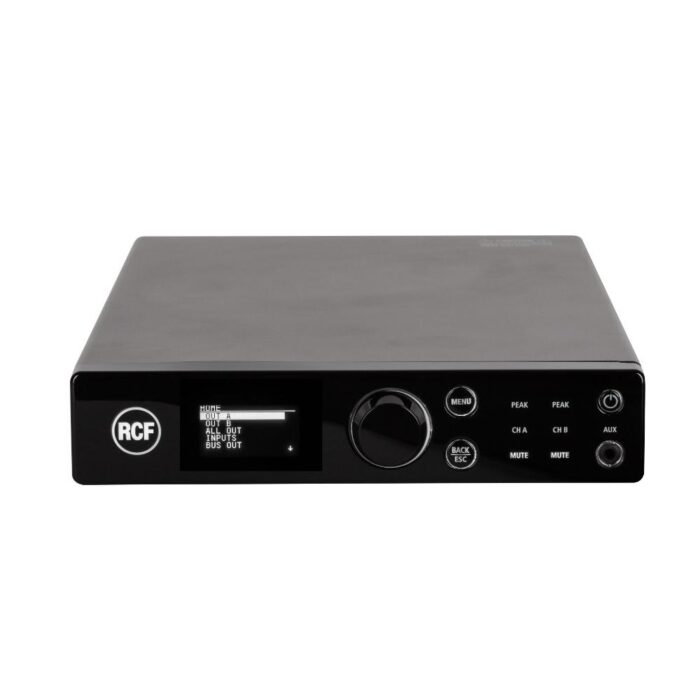

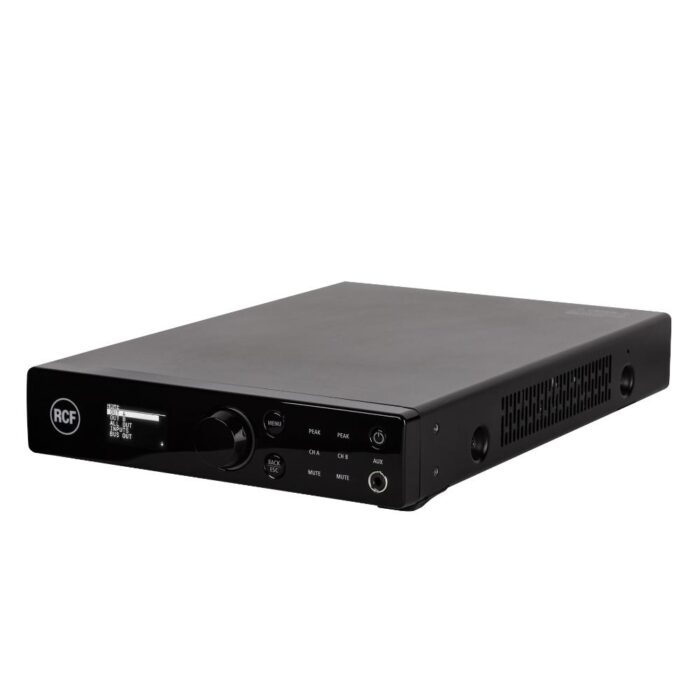

DMA 162 is a two-channel Class-D matrix amplifier equipped with a powerful DSP platform, allowing managing inputs and outputs in terms of routing and equalization. A complete set of processing functions is available, including presets for RCF speakers, proprietary bass enhancer algorithm, FIR filters, and environmental equalization. Thanks to its extremely compact size, accurate design, and robustness, it is ideal for a wide range of business music applications.
- 2 x 160 W Class-D power amplifier
- 20 ÷ 20000 Hz frequency range
- Full on-board processing
- RCF speakers’ presets
- Proprietary bass enhancer algorithm
- FiRPHASE linear phase filters
- Flexible and scalable multi-room architecture
- Suitable for desktop or rack installation
- RDNet ready for networked management
- Remote controls and paging console accessories

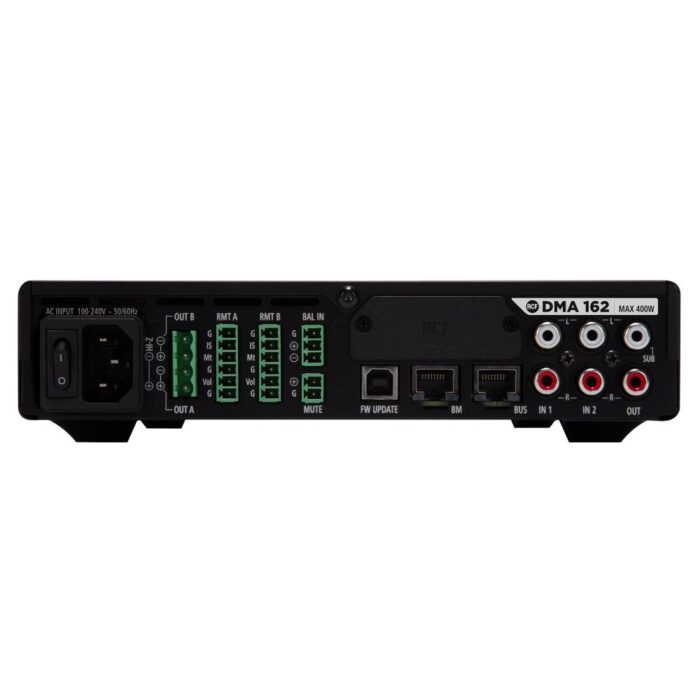

TECNICAL SPECIFICATIONS
2 X 160 W @ 4 OHM OR 320 W @ 70 V (DMA 162)
OUTPUTS (SIGNAL)
- 1 x STEREO LINE/SUB (RCA)
- 1 x 4 CHANNELS AUDIO BUS (RJ 45)
CONTROLS
- 1 x REMOTE MUTE CONTACT
- 2 x WALL MOUNT REMOTE CONTROLS
- 2 x WALL MOUNT REMOTE CONTROLS
- 1 x CTRL + FIRMWARE UPDATE USB PORT
INPUTS
- 2 x LINE STEREO( RCA)
(1 alternative to AUX IN on the front panel) - 1 x MIC/LINE balanced (removable terminal)
- 1 x PAGING (RJ 45)
SPECIFICATIONS
Amplifier specifications
AMPLIFIER CLASS:
D
NUMBER OF CHANNELS:
2
POWER OUTPUT PER CHANNEL (@ 4 OHM):
160
POWER OUTPUT (BRIDGED @ 4 OHM):
320
POWER OUTPUT (@ 100 V):
320
FREQUENCY RESPONSE (-3DB):
20 Hz ÷ 20000 kHz
SIGNAL/NOISE RATE (”A” WEIGHTED):
>93 dB
DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER:
<0.01 %
Input section
BALANCED:
2
GENERAL PURPOSE INPUTS (GPI):
1
LINE CONNECTORS:
JACK, RCA
LINE INPUTS:
2
MIC+LINE CONNECTORS:
Euroblock
MIC+LINE INPUTS:
1
VOX: (MIC+LINE):
Yes
VOX: (MIC):
Yes
MONO:
2
PAGING COMMAND:
Contact
PAGING CONNECTORS:
RJ45
PAGING INPUTS:
1
STEREO:
2
TOTAL NUMBER OF INPUTS:
4
UNBALANCED:
2
Output section
SIGNAL OUTPUT NUMBER:
1
SIGNAL OUTPUT CONNECTORS:
RCA
Processing
DSP:
Yes
EQ FILTERS:
Yes
FIR:
Yes
COMPRESSORS:
Yes
TONE CONTROLS:
Yes
HIGH-PASS FILTER:
80 ÷ 200 Hz
Controls
CONFIGURATION:
Front panel, PC Software
Protections
COOLING:
Forced
SHORT CIRCUIT:
Yes
THERMAL:
Yes
DC DELAY:
Yes
FUSES:
Yes
VHF:
Yes
Power requirement
OPERATING VOLTAGE:
90-240V~ 50/60Hz
POWER CONSUMPTION:
400
Standard compliance
CE MARKING:
Yes
ENERGY STAR:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal
COLOR:
Black
Size
DEPTH:
314 mm / 12.36 inches
HEIGHT:
314 mm / 12.36 inches
WEIGHT:
1.7 kg / 3.75 lbs
WIDTH:
213 mm / 8.39 inches
Shipping informations
PACKAGE DEPTH:
381 mm / 15 inches
PACKAGE HEIGHT:
106 mm / 4.17 inches
PACKAGE WEIGHT:
2.7 kg / 5.95 lbs
PACKAGE WIDTH:
360 mm / 14.17 inches
